Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

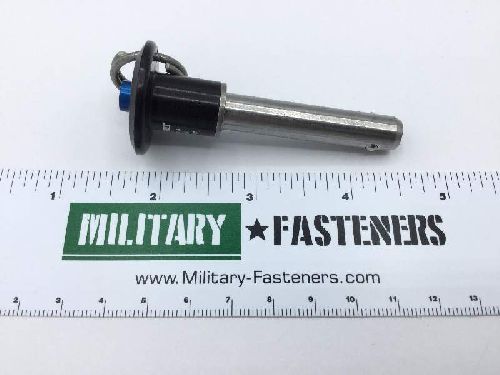

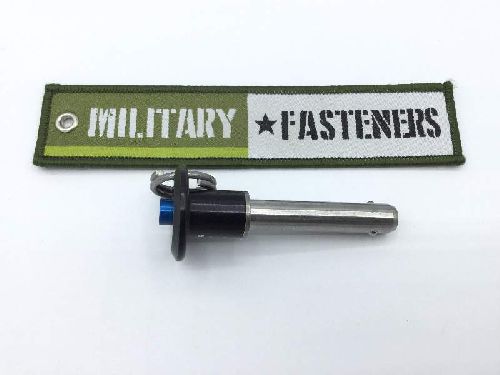

MS17984C615 Quick Release Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.24.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 630 shank or steel comp 632 shank

Surface Treatment

Qq-p-35 federal specification single treatment response spindle

Actuation Type: Push
Button Handle Diameter: Between 0.875 inches and 1.135 inches
Detent Quantity: 2
Detent To Tapered End Distance: Between 0.335 inches and 0.365 inches
Grip Length: Between 1.500 inches and 1.520 inches
Hardness Rating: 40.0 rockwell c
Material Specification: Ams 5643 assn standard 1st material response spindle or ams 5657 assn standard 2nd material response spindle
Pin Attachment Type: Hook
Shank Diameter: Between 0.3720 inches and 0.3735 inches
Shoulder To Head End Distance: 1.040 inches
Style Designator: Button
