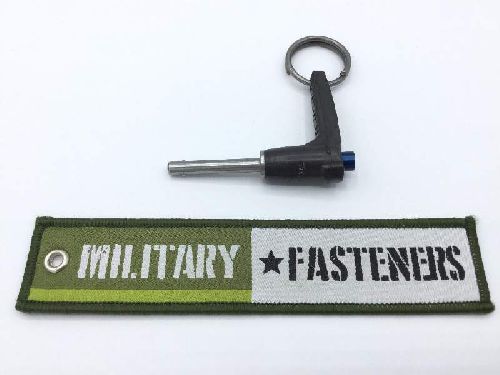

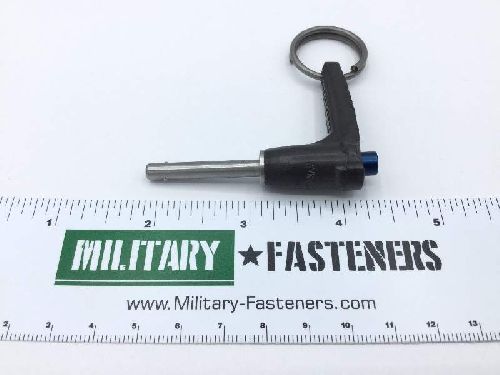

MS17986C310 Quick Release Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $69.95

Units per Pack 1

Price per Pack $69.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $69.95

Add item to quote

Material

Steel comp 630 or steel comp 632

Surface Treatment

Qq-p-35 federal specification single treatment response

Actuation Method: Push button
Actuation Type: Push
Detent Quantity: 2
Detent To Tapered End Distance: 0.260 inches
Grip Length: Between 1.000 inches and 1.020 inches
Hardness Rating: 40.0 rockwell c
Material Specification: Ams 5643 assn standard 1st material response or ams 5657 assn standard 2nd material response
Pin Attachment Type: Hook or ring
Pin Center To Handle End Distance: 1.460 inches
Shank Diameter: Between 0.187 inches and 0.188 inches
Shoulder To Head End Distance: 1.270 inches
Style Designator: L handle
