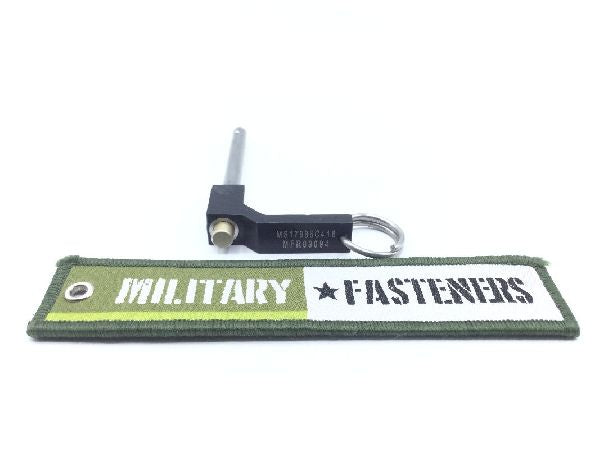

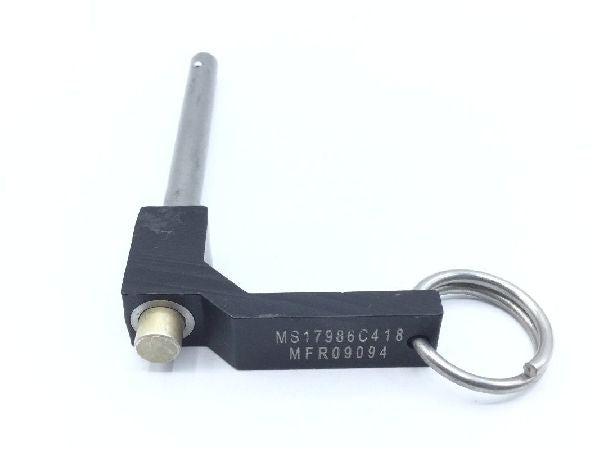

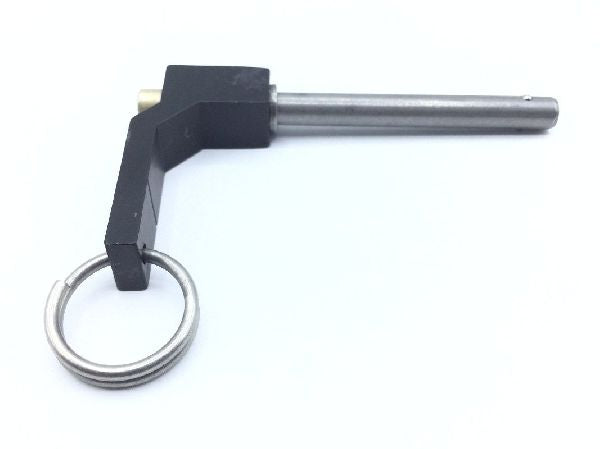

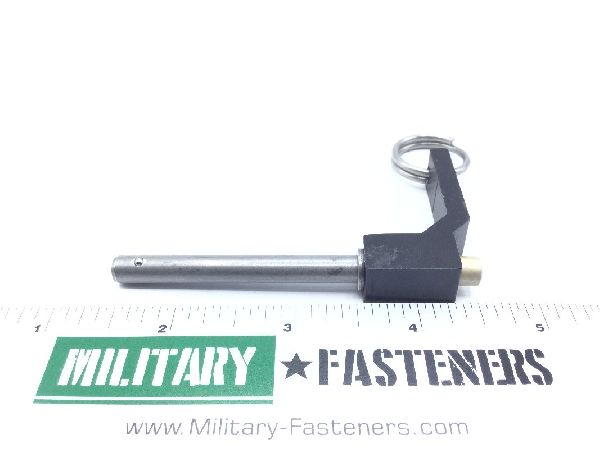

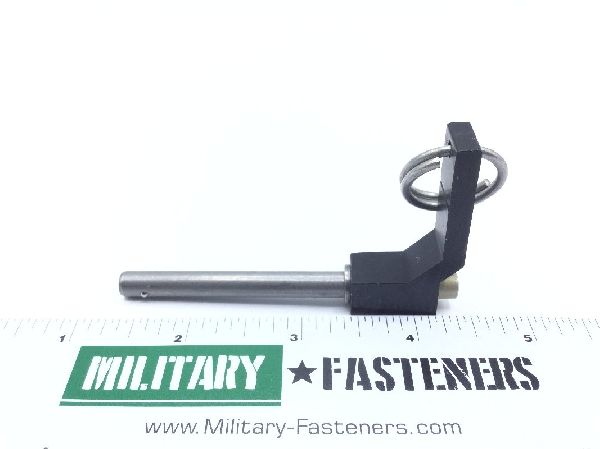

MS17986C418 Quick Release Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $63.00

Units per Pack 1

Price per Pack $63.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $63.00

Add item to quote

Material

Steel comp 630 shank or steel comp 632 shank

Surface Treatment

Qq-p-35 federal specification single treatment response spindle

Actuation Method: Push button
Actuation Type: Push
Detent Quantity: 2
Detent To Tapered End Distance: Between 0.260 inches and 0.290 inches
Grip Length: Between 1.800 inches and 1.820 inches
Hardness Rating: 40.0 rockwell c shank
Material Specification: Ams 5643 assn standard 1st material response spindle or ams 5657 assn standard 2nd material response spindle
Pin Attachment Type: Hook or ring
Pin Center To Handle End Distance: Between 1.380 inches and 1.460 inches
Shank Diameter: Between 0.2470 inches and 0.2485 inches
Shoulder To Head End Distance: 1.270 inches
Style Designator: L handle
