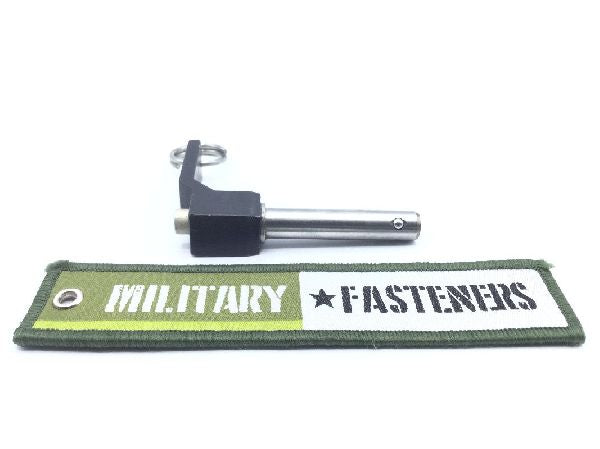

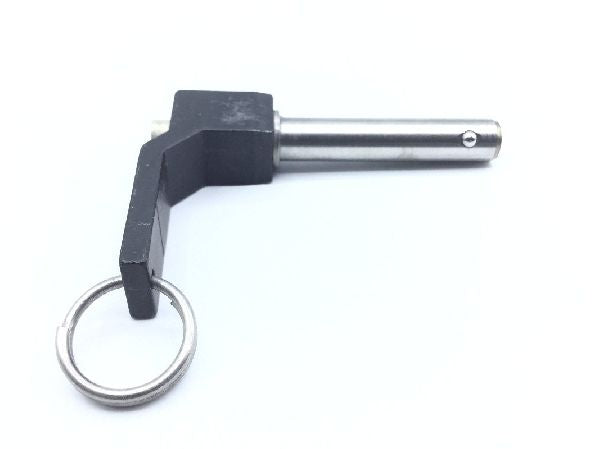

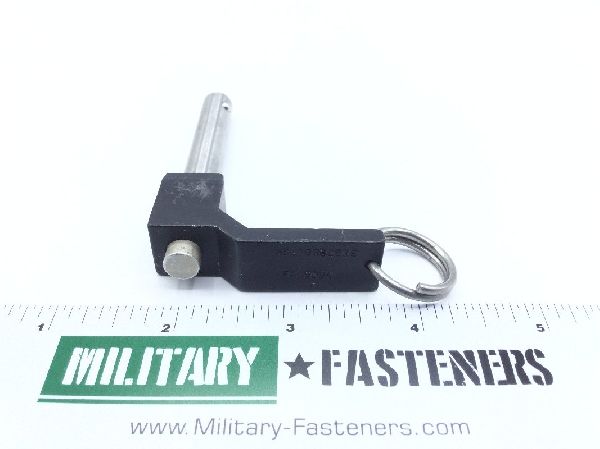

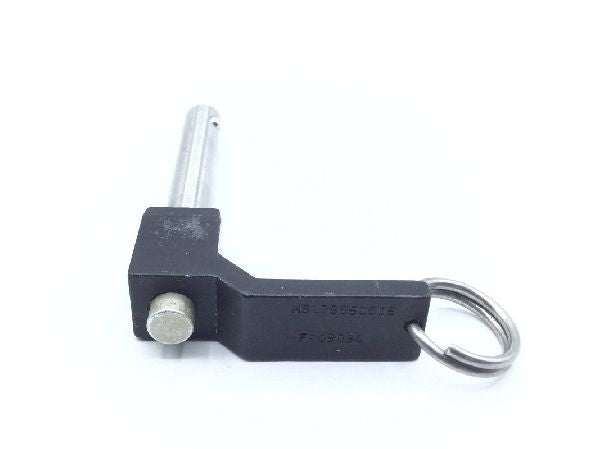

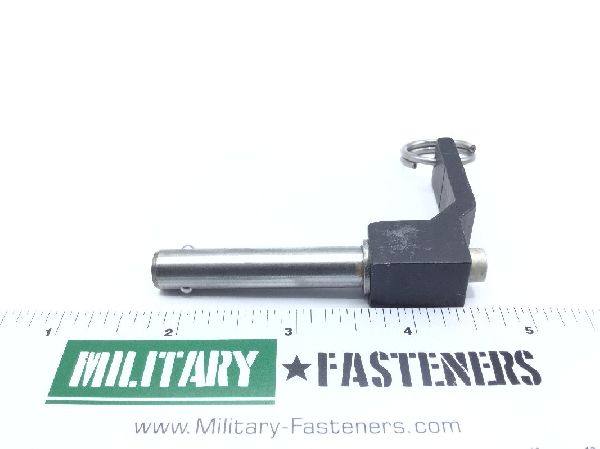

MS17986C615 Quick Release Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $56.70

Units per Pack 1

Price per Pack $56.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $56.70

Add item to quote

Material

Steel comp 630 spindle or steel comp 632 spindle

Surface Treatment

Qq-p-35 federal specification single treatment response spindle

Actuation Method: Push button
Actuation Type: Push
Detent Quantity: 2
Detent To Tapered End Distance: Between 0.335 inches and 0.365 inches
Grip Length: Between 1.500 inches and 1.520 inches
Hardness Rating: 40.0 rockwell c spindle
Material Specification: Ams 5643 assn standard 1st material response shank or ams 5657 assn standard 2nd material response shank
Pin Attachment Type: Hook or ring
Pin Center To Handle End Distance: 1.640 inches
Shank Diameter: Between 0.3720 inches and 0.3735 inches
Shoulder To Head End Distance: 1.450 inches
Style Designator: L handle
