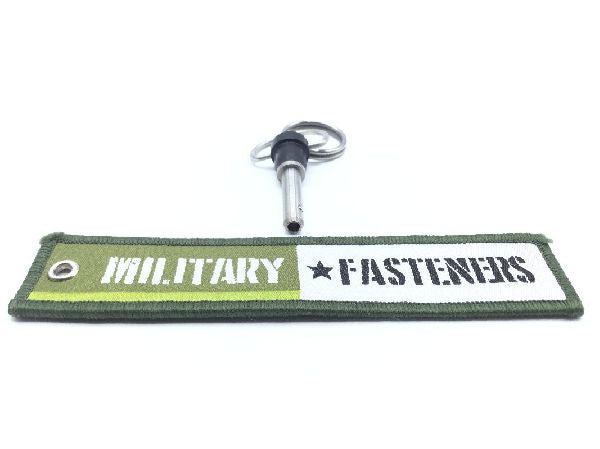

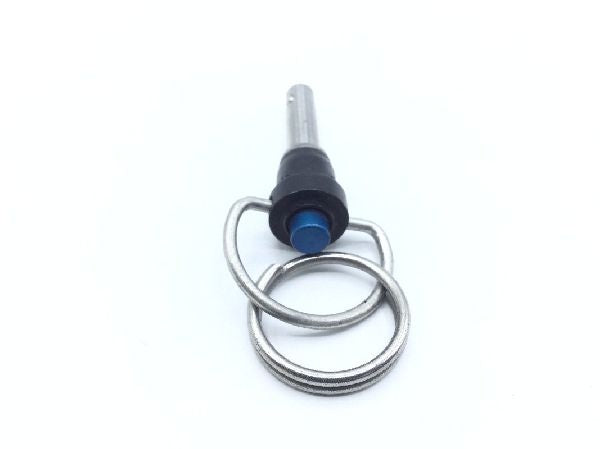

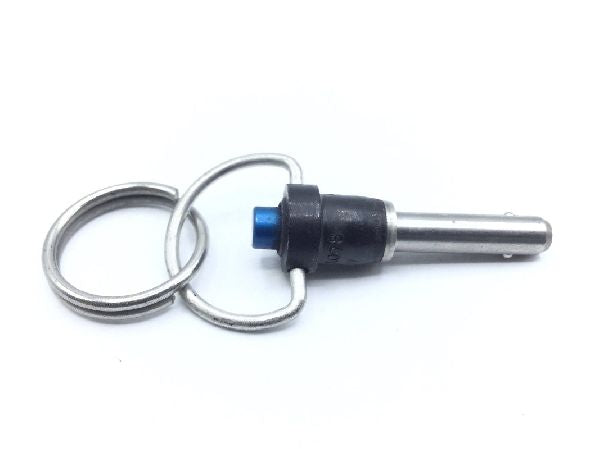

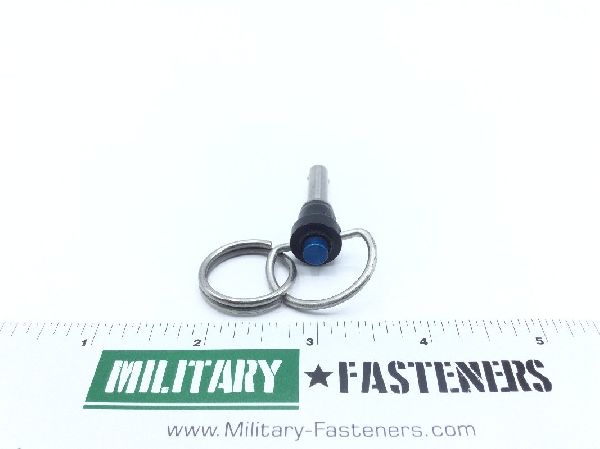

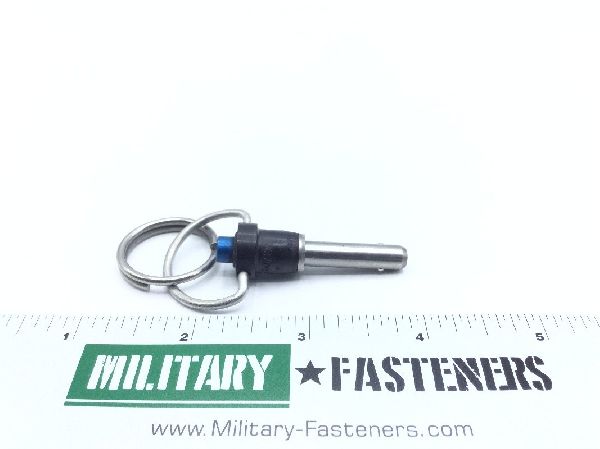

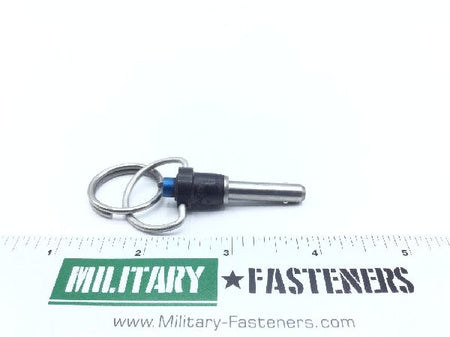

MS17987C407 Quick Release Pin

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Actuation Method: Push button
Actuation Type: Push
Detent Quantity: 2
Detent To Tapered End Distance: Between 0.26 inches and 0.29 inches
Grip Length: Between 0.70 inches and 0.72 inches
Hardness Rating: 36.0 rockwell c shank and 40.0 rockwell c shank
Material Specification: Mil-t-6736 military specification single material response spindle or mil-s-6758 military specification single material response spindle
Pin Attachment Type: Hook or ring
Ring Handle Diameter: 1.060 inches
Shank Diameter: Between 0.247 inches and 0.2485 inches
Shoulder To Head End Distance: 0.78 inches
Style Designator: Ring handle
Head Diameter: Between 0.31 inches and 0.530 inches
