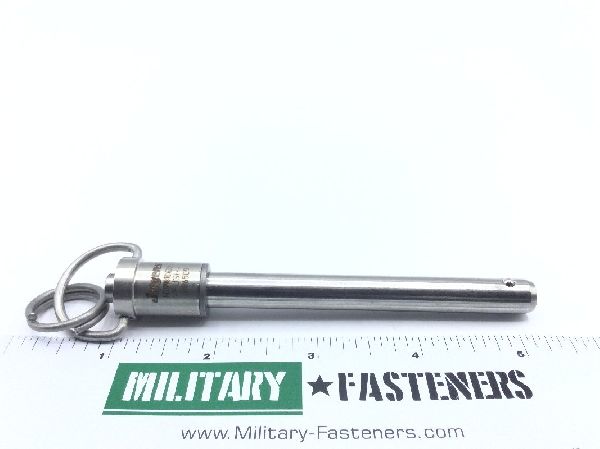

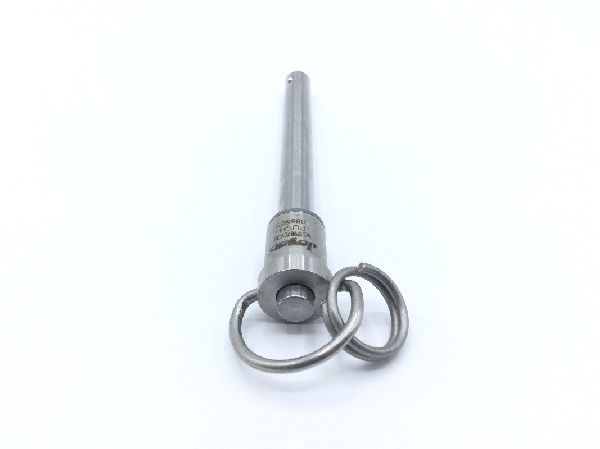

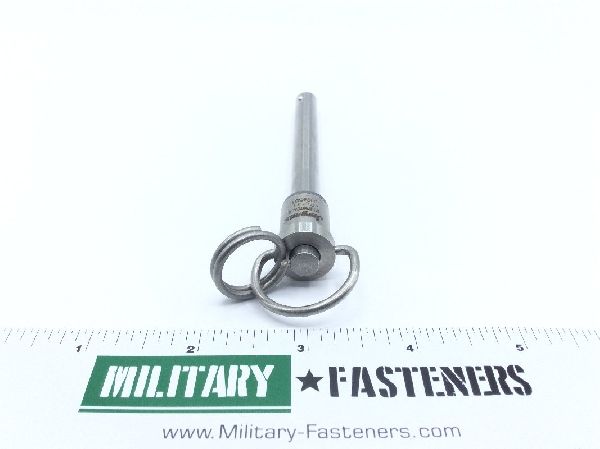

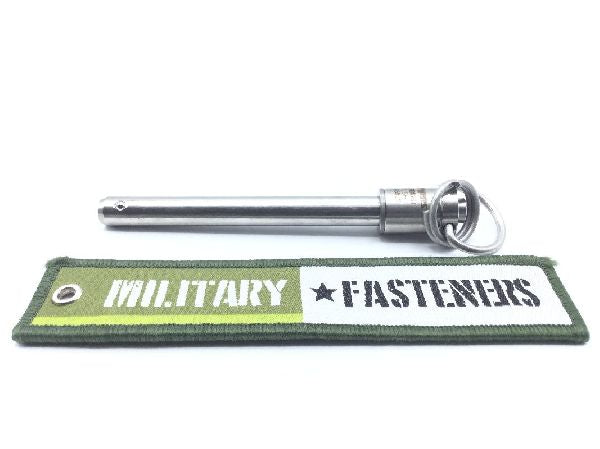

MS17987C630 Quick Release Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.29.0000

Price per Unit $67.84

Units per Pack 1

Price per Pack $67.84

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $67.84

Add item to quote

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response shankqq-p-35 federal specification single treatment response spindle

Actuation Method: Push button
Actuation Type: Push
Detent Quantity: 2
Detent To Tapered End Distance: Between 0.335 inches and 0.365 inches
Grip Length: Between 3.00 inches and 3.02 inches
Hardness Rating: 40.0 rockwell c shank 40.0 rockwell c spindle
Material Specification: Ams 5643 assn standard 1st material response shank or ams 5657 assn standard 2nd material response shankams 5643 assn standard 1st material response spindle or ams 5657 assn standard 2nd material response spindle
Pin Attachment Type: Link or ring
Ring Handle Diameter: 1.060 inches
Shank Diameter: Between 0.3720 inches and 0.3735 inches
Shear Strength: 20600 double pound
Shoulder To Head End Distance: 0.94 inches
Style Designator: Ring handle
Head Diameter: Between 0.450 inches and 0.650 inches
