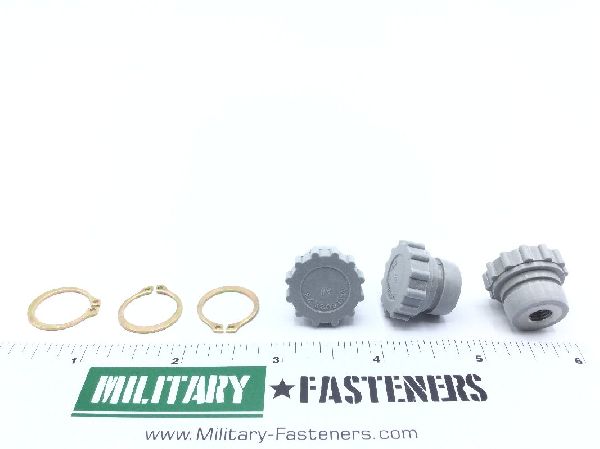

MS18029-23 Terminal Board Nut

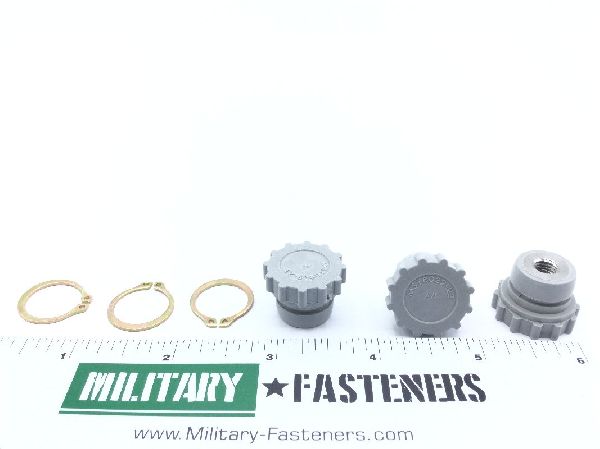

MS18029-23 Terminal Board Nut (2)

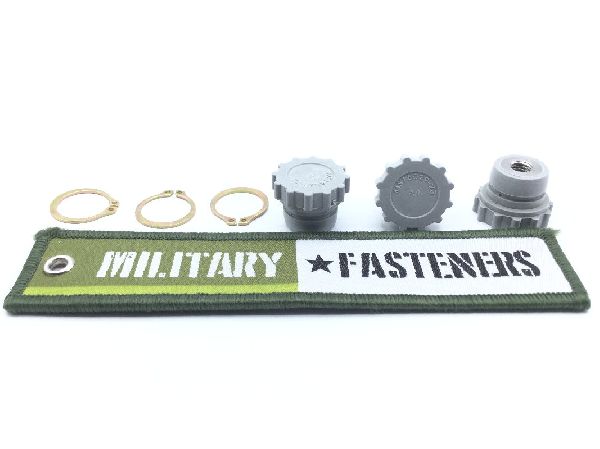

MS18029-23 Terminal Board Nut (3)

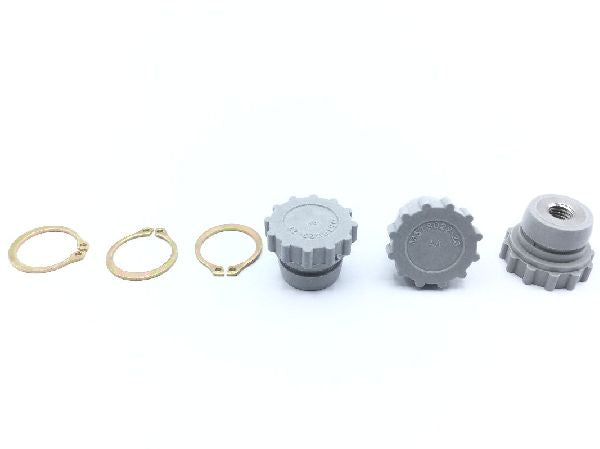

MS18029-23 Terminal Board Nut (4)

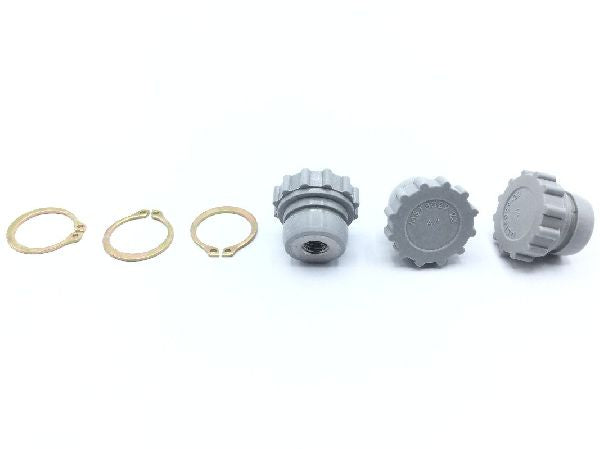

MS18029-23 Terminal Board Nut (5)

MS18029-23 Terminal Board Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS18029-23 Terminal Board Nut

Product Series: MS
ECCN: EAR99
Schedule: 8536.90.4000

Price per Unit $27.30

Units per Pack 2

Price per Pack $54.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $54.60

Add item to quote

Material

Steel insert

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.250 inches

Cross-sectional Shape: Square nut
Flange Thickness: 0.195 inches
Material Specification: Mil-m-19833 military specification single material response nut
Nut Diameter: 0.625 inches
Nut Length: 0.430 inches
Nut Style: Sleeve
Tempurature Rating: 475 degrees fahrenheit
Thread Direction: Right-hand
Thread Length: 0.367 inches
Thread Qty Per Inch (tpi): 28
Flange Diameter: 0.875 inches
