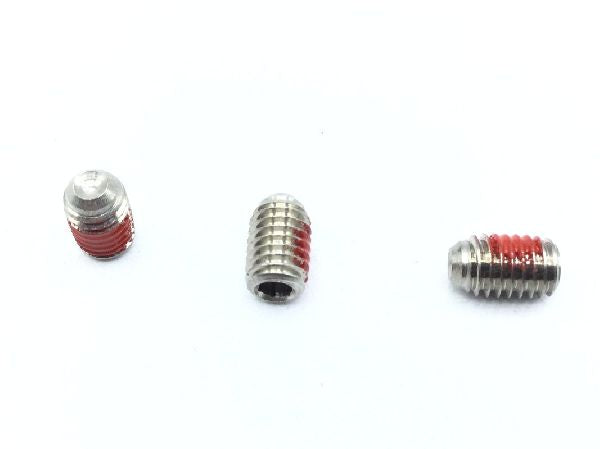

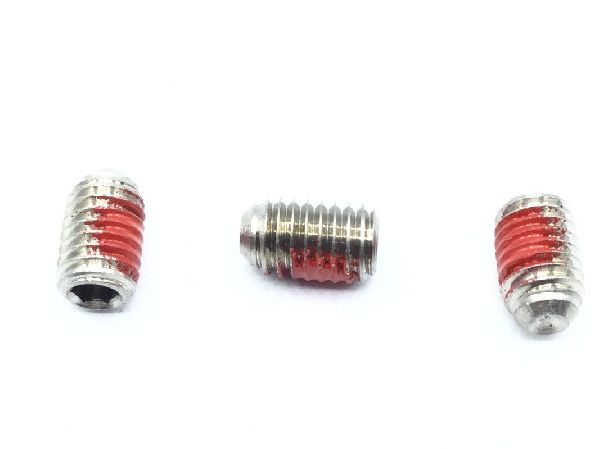

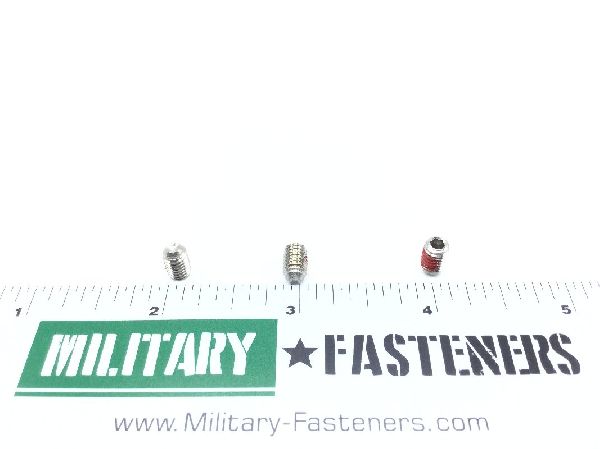

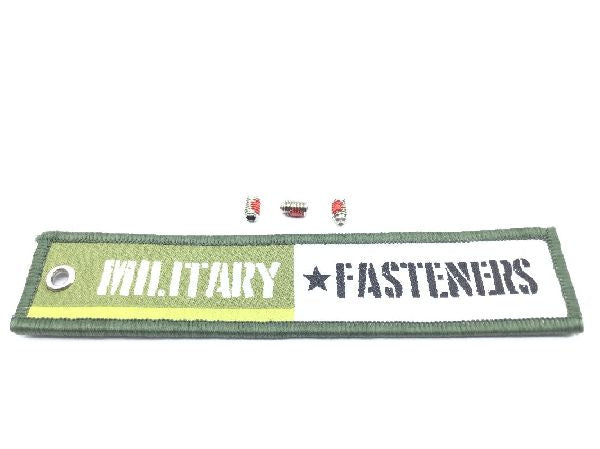

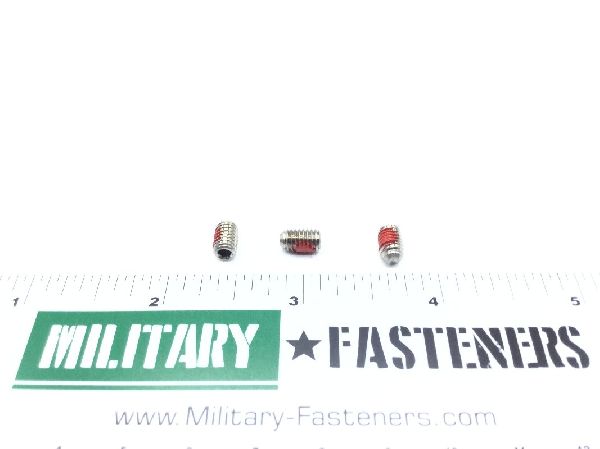

MS18064-19 Setscrew

MS18064-19 Setscrew (2)

MS18064-19 Setscrew (3)

MS18064-19 Setscrew (4)

MS18064-19 Setscrew (5)

MS18064-19 Setscrew (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS18064-19 Setscrew

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $12.40

Units per Pack 5

Price per Pack $62.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $62.00

Add item to quote

Head Style

Headless (setscrew)

Material

Steel comp 301 or steel comp 302 or steel comp 302b or steel comp 303 or steel comp 303se or steel comp 304 or steel comp 304l or steel comp 305 or steel comp 308 or steel comp 309 or steel comp 309s or steel comp 310 or steel comp 310s

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3a

Fastener Length: Between 0.302 inches and 0.322 inches
Internal Drive Style: Hexagon
Locking Feature: Patch threads or pellet threads or strip threads
Nondefinitive Specification/std Data: 1 type and 4 style
Point Style: Cup
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.302 inches and 0.322 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: 0.094 inches
