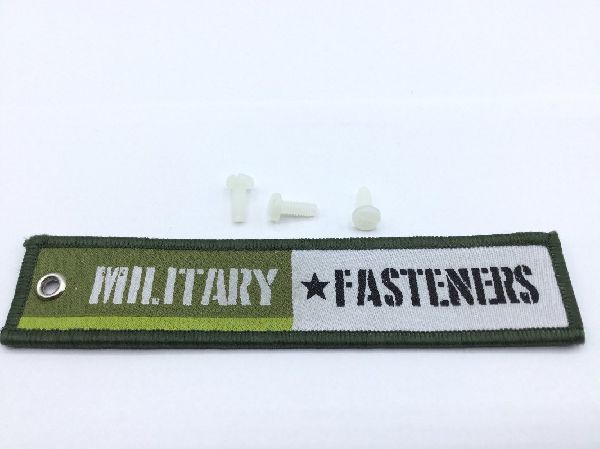

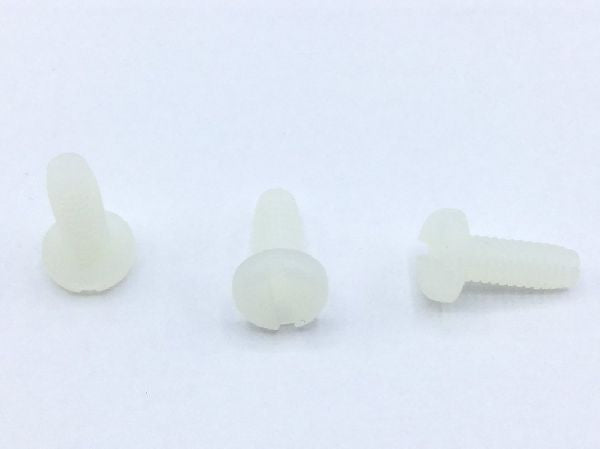

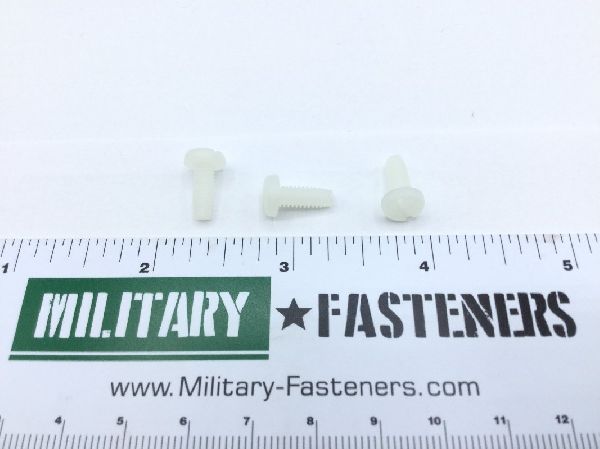

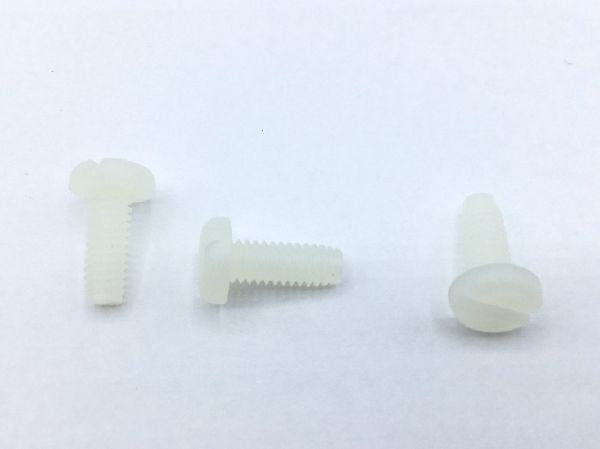

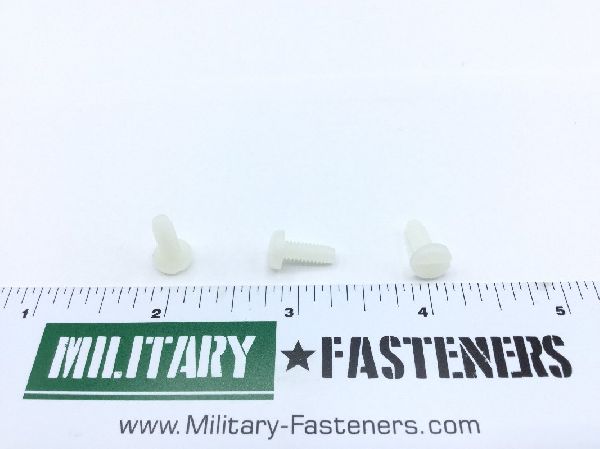

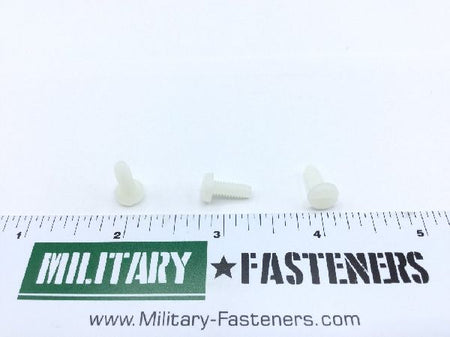

MS18212-44 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.68

Units per Pack 50

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Head Style

Pan no. 2

Thread Class

Fastener Length: Between 0.407 inches and 0.438 inches
Head Height: Between 0.085 inches and 0.096 inches
Internal Drive Style: Slot
Nondefinitive Specification/std Data: 1 type and 9s style
Screw Material: Plastic polyhexamethylene amide
Screw Material Specification: type 1 military specification single material response mil-m-20693
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.345 inches and 0.438 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.306 inches and 0.322 inches
