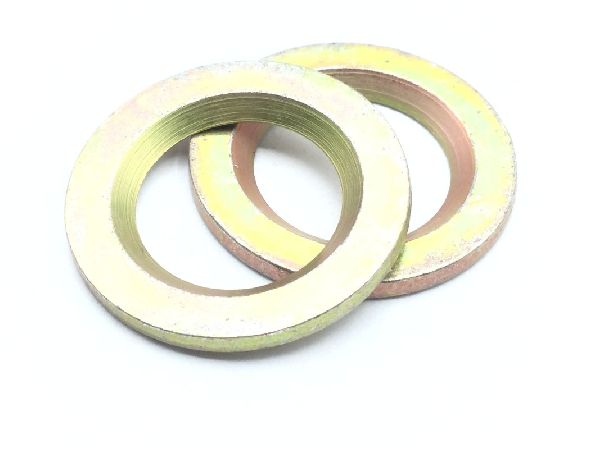

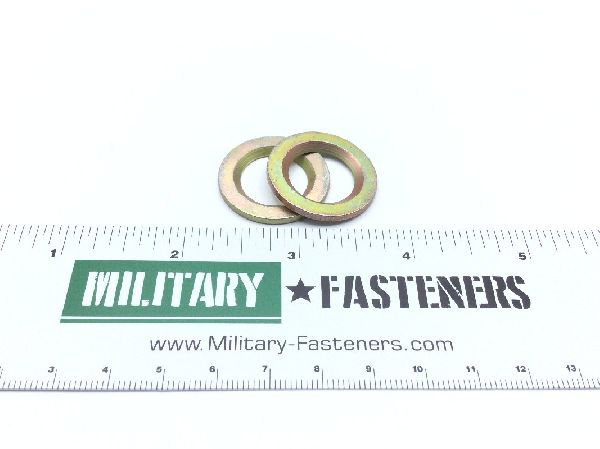

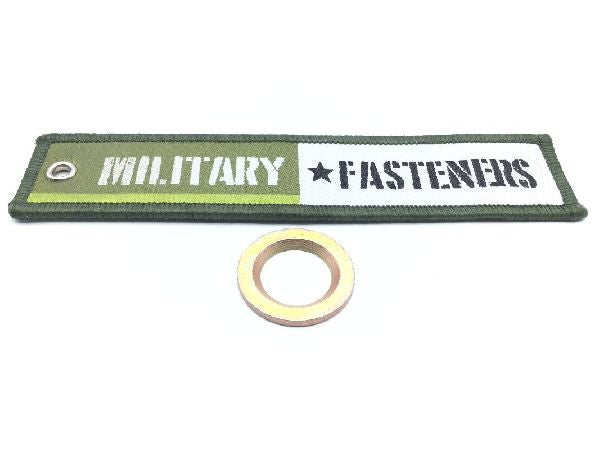

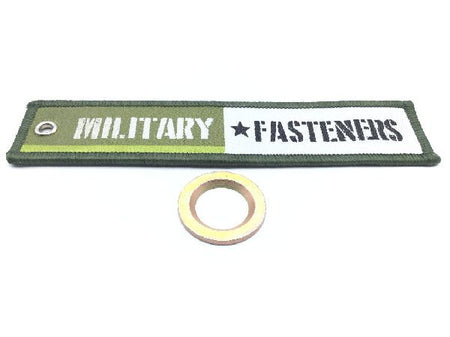

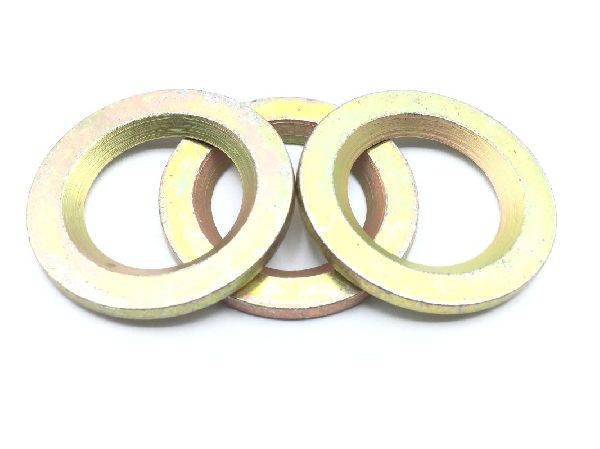

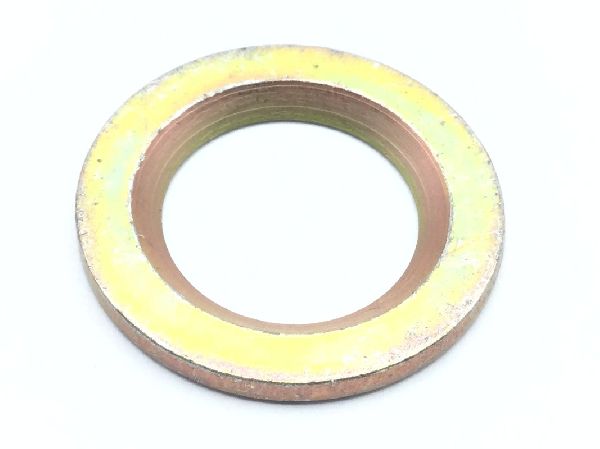

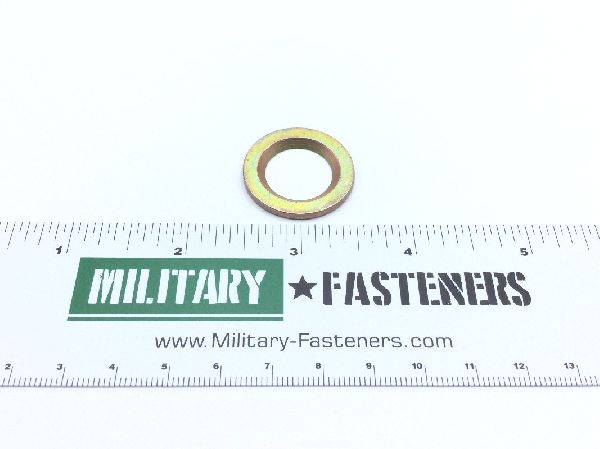

MS20002C10 Recessed Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $1.68

Units per Pack 25

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Material

Steel comp 1330 or steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Material Specification: 66 federal standard all material responses
Material Thickness: Between 0.068 inches and 0.088 inches
Outside Diameter: Between 1.052 inches and 1.072 inches
Recess Angle: Between 89.0 degrees and 91.0 degrees
Recess Diameter: Between 0.765 inches and 0.785 inches
Style Designator: Recessed
Hole Diameter: Between 0.631 inches and 0.643 inches
