MS20002C16 Recessed Washer

MS20002C16 Recessed Washer (2)

MS20002C16 Recessed Washer (3)

MS20002C16 Recessed Washer (4)

MS20002C16 Recessed Washer (5)

MS20002C16 Recessed Washer (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

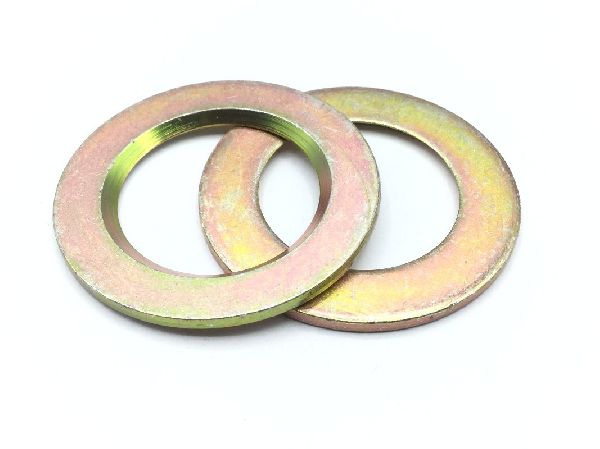

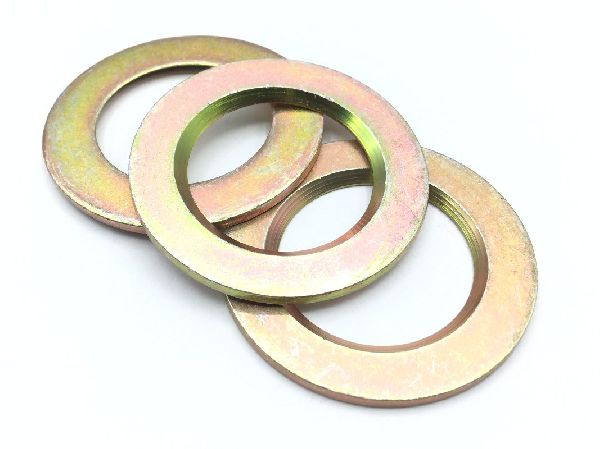

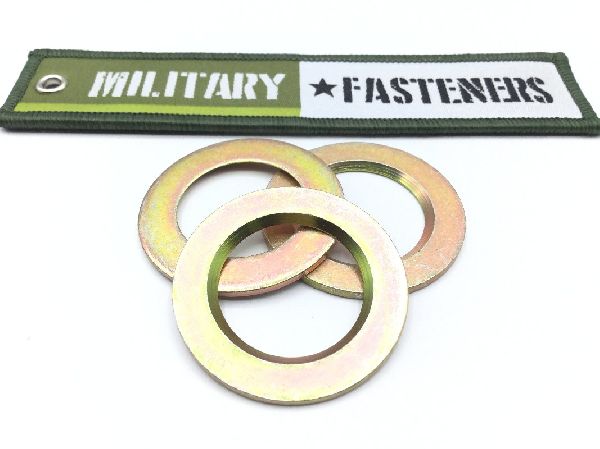

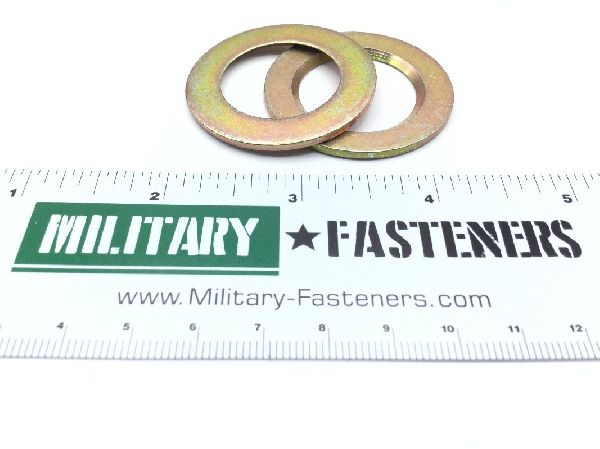

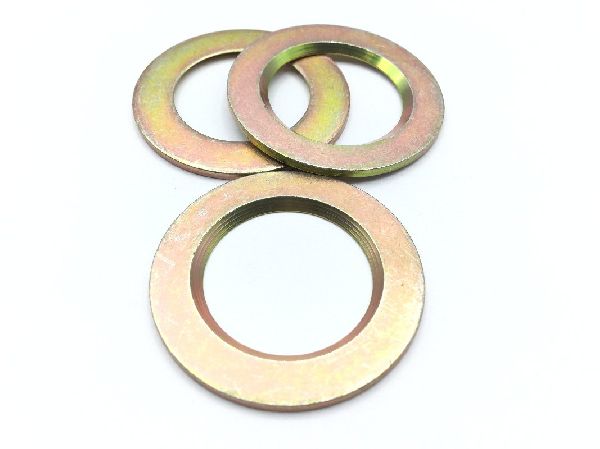

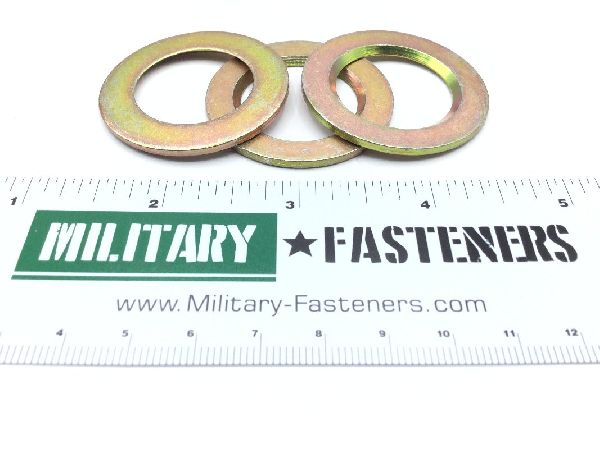

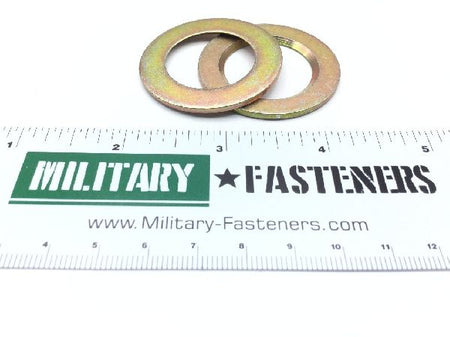

MS20002C16 Recessed Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $1.73

Units per Pack 25

Price per Pack $43.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $43.25

Add item to quote

Material

Steel comp 1330 or steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Material Specification: 66 federal standard all material responses
Material Thickness: Between 0.068 inches and 0.088 inches
Outside Diameter: Between 1.615 inches and 1.635 inches
Recess Angle: Between 89.0 degrees and 91.0 degrees
Recess Diameter: Between 1.140 inches and 1.160 inches
Style Designator: Recessed
Hole Diameter: Between 1.010 inches and 1.025 inches
