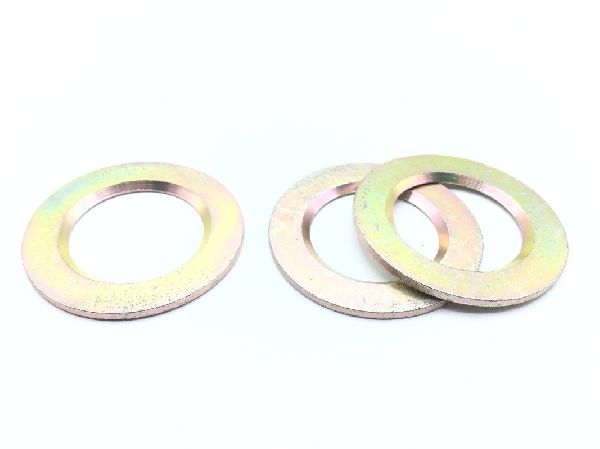

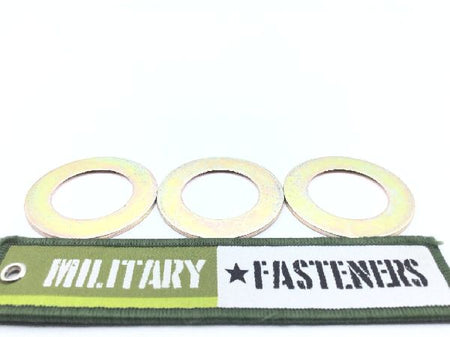

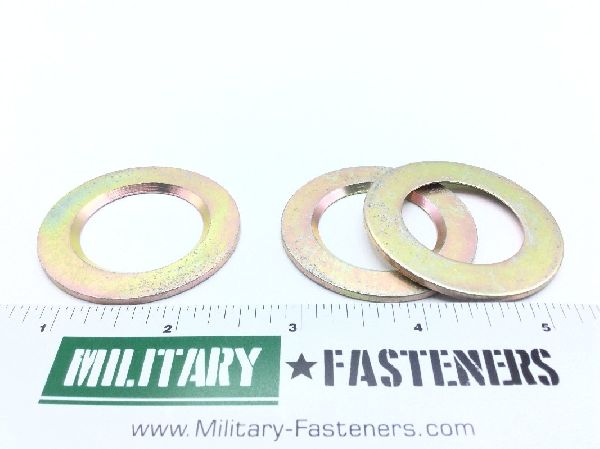

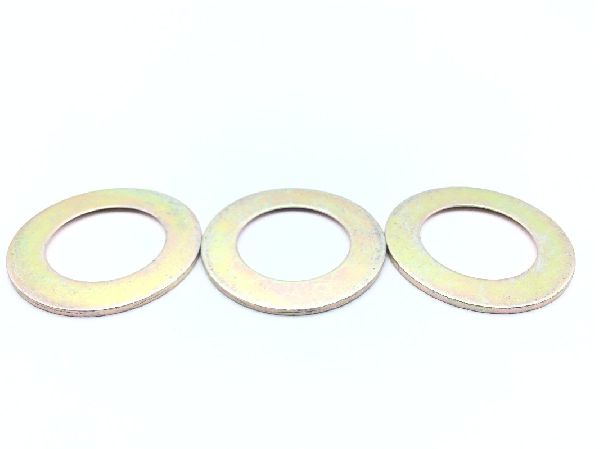

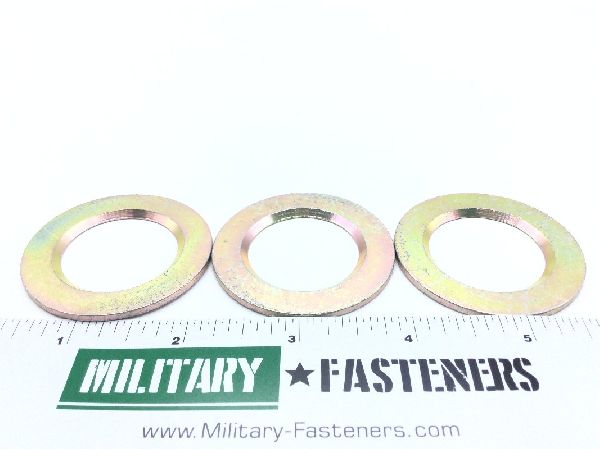

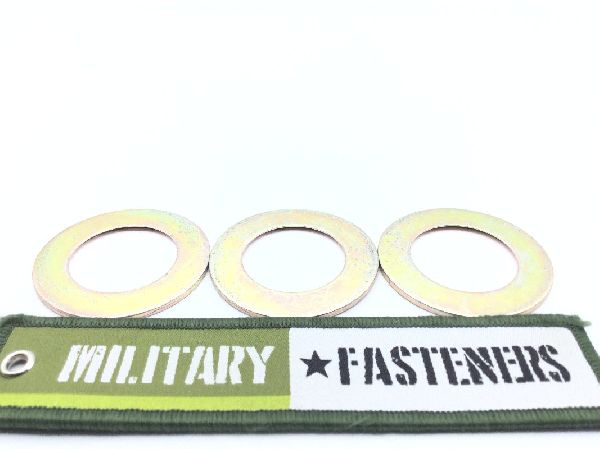

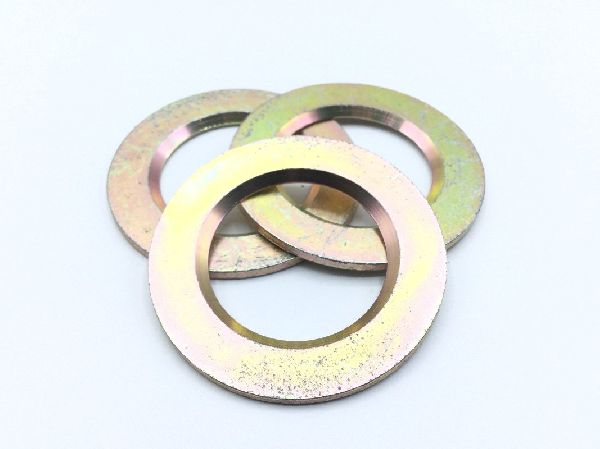

MS20002C18 Flat Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $2.10

Units per Pack 20

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Material

Steel comp 1330 or steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Material Specification: 66 federal standard single material response
Material Thickness: Between 0.068 inches and 0.088 inches
Min. Tensile Strength (psi): 125 pounds per square inch
Outside Diameter: Between 1.865 inches and 1.885 inches
Recess Angle: Between 89.0 degrees and 91.0 degrees
Recess Depth: 0.067 inches
Recess Diameter: Between 1.265 inches and 1.285 inches
Specification Data: 80205-nas143 professional/industrial association standard
Style Designator: Recessed
Hole Diameter: Between 1.135 inches and 1.150 inches
