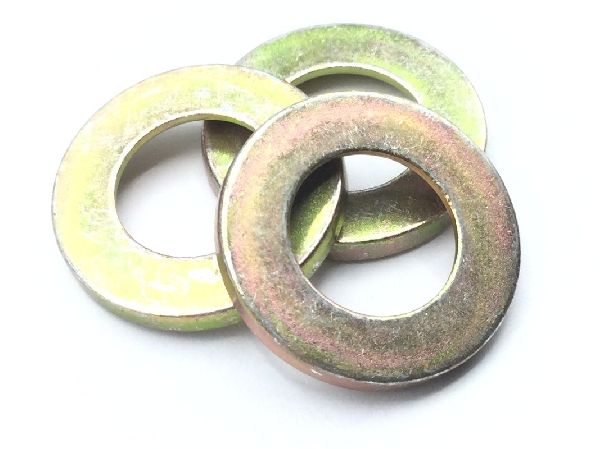

MS20002C6 Recessed Washer

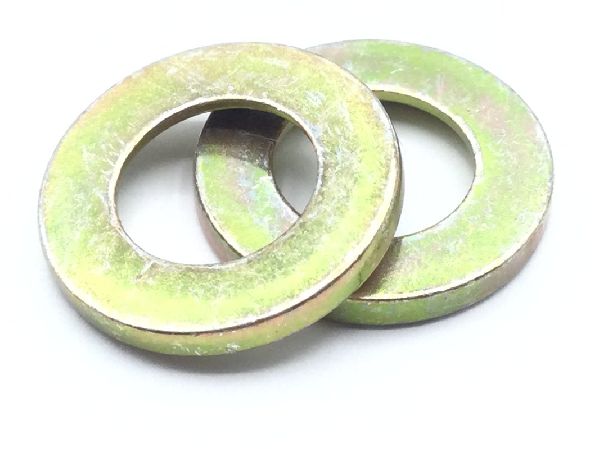

MS20002C6 Recessed Washer (2)

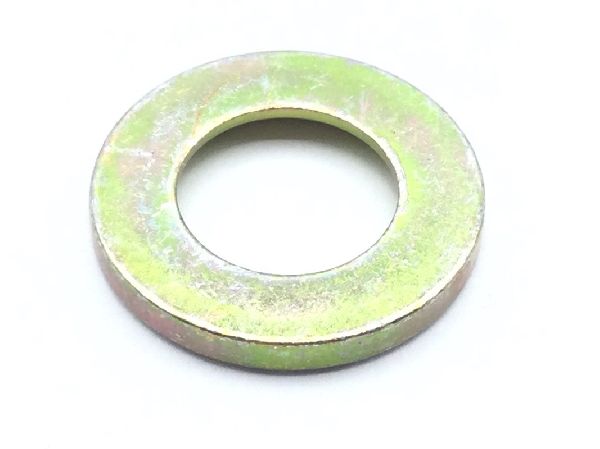

MS20002C6 Recessed Washer (3)

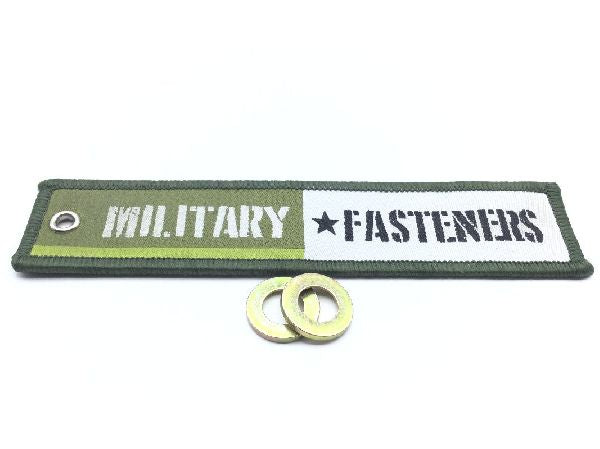

MS20002C6 Recessed Washer (4)

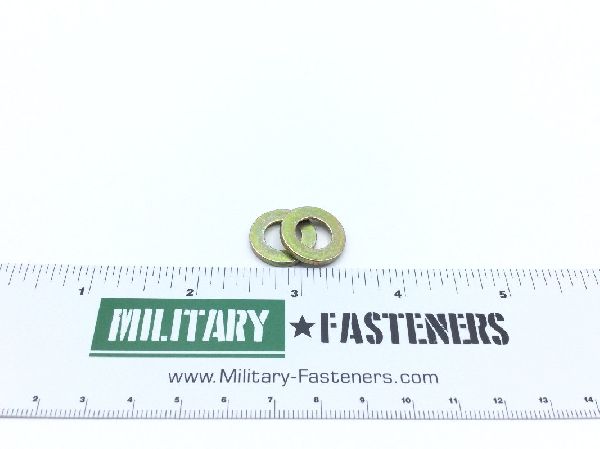

MS20002C6 Recessed Washer (5)

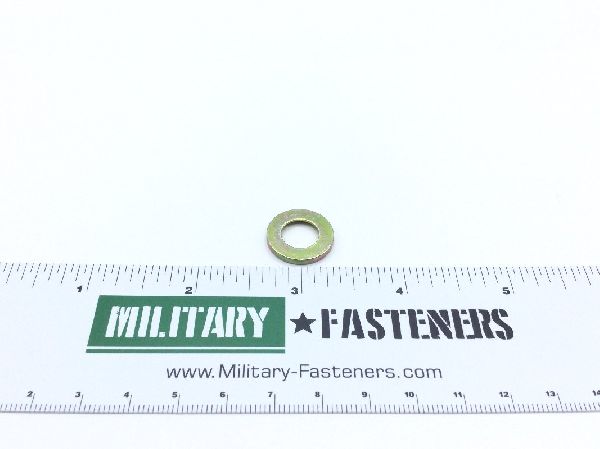

MS20002C6 Recessed Washer (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20002C6 Recessed Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $0.45

Units per Pack 100

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Material Specification: 66 federal standard single material response
Material Thickness: 0.078 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Outside Diameter: 0.687 inches
Recess Angle: 90.0 degrees
Recess Diameter: Between 0.483 inches and 0.495 inches
Style Designator: Recessed
Hole Diameter: Between 0.378 inches and 0.388 inches
