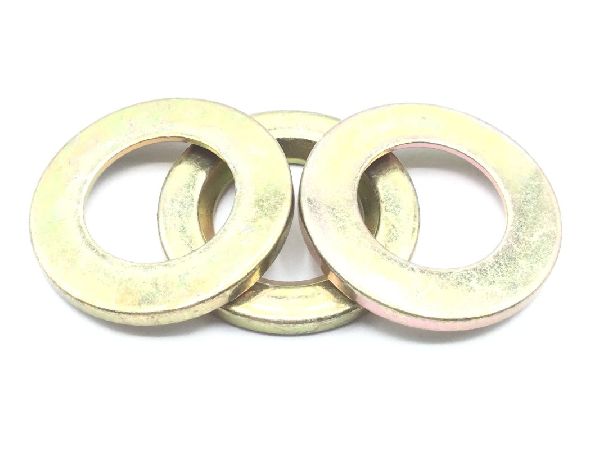

MS20002C7 Recessed Washer

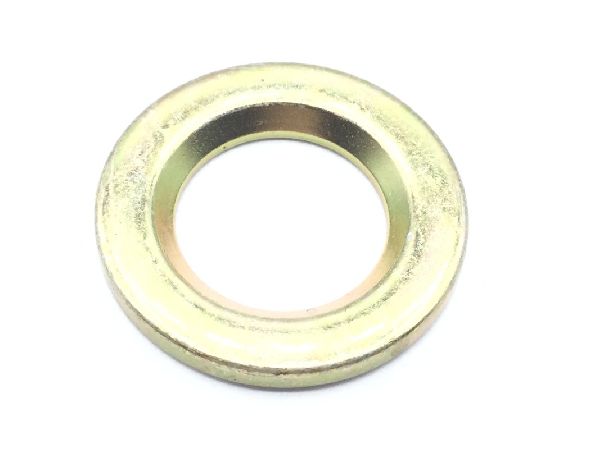

MS20002C7 Recessed Washer (2)

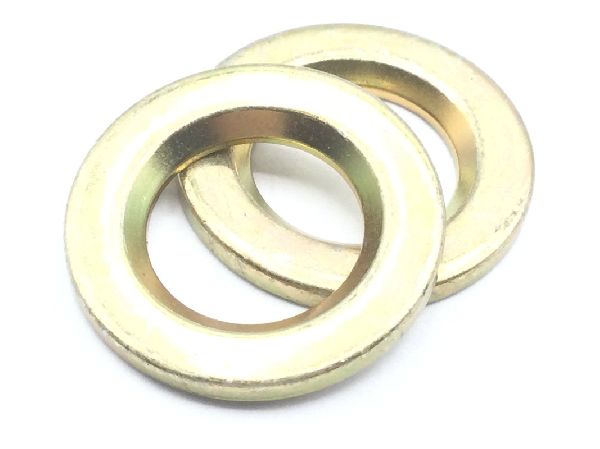

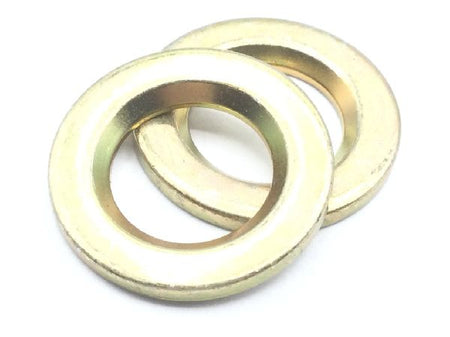

MS20002C7 Recessed Washer (3)

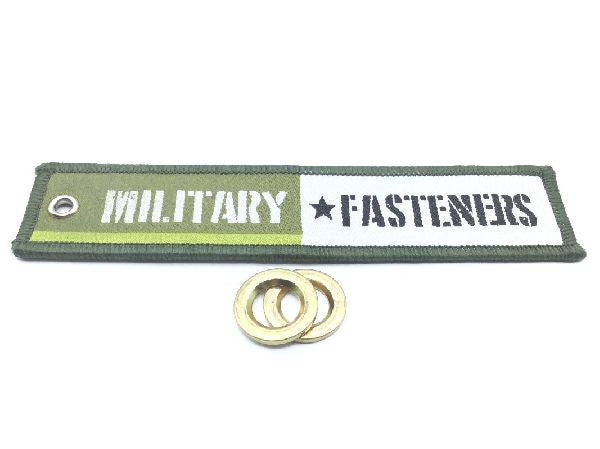

MS20002C7 Recessed Washer (4)

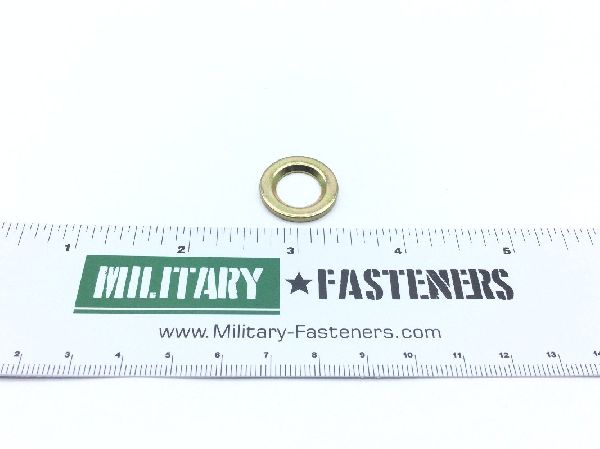

MS20002C7 Recessed Washer (5)

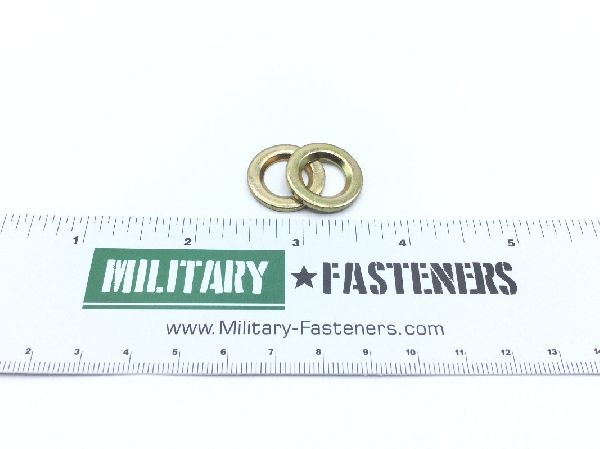

MS20002C7 Recessed Washer (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20002C7 Recessed Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $0.52

Units per Pack 100

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Material

Steel comp 1330 or steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Material Specification: 66 federal standard all material responses
Material Thickness: Between 0.068 inches and 0.088 inches
Outside Diameter: Between 0.771 inches and 0.791 inches
Recess Angle: Between 89.0 degrees and 91.0 degrees
Recess Diameter: Between 0.543 inches and 0.557 inches
Style Designator: Recessed
Hole Diameter: Between 0.441 inches and 0.451 inches
