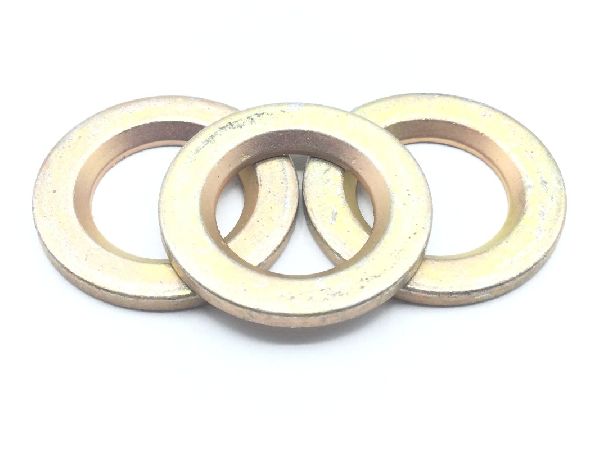

MS20002C8 Recessed Washer

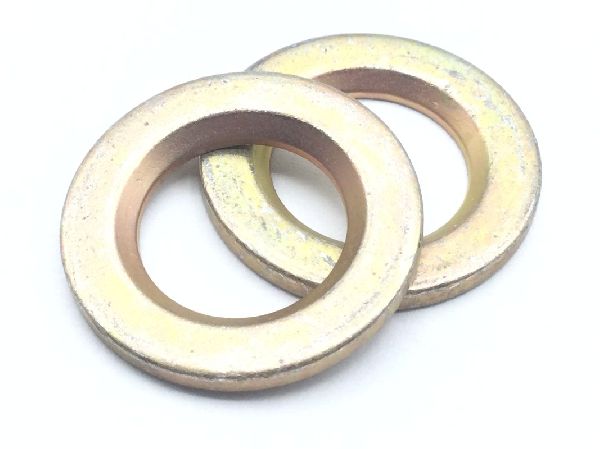

MS20002C8 Recessed Washer (2)

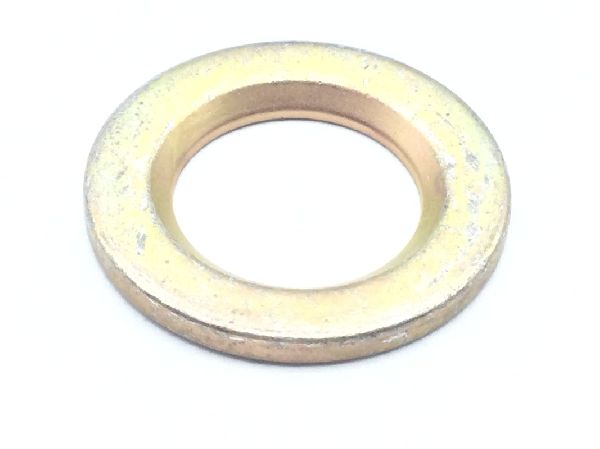

MS20002C8 Recessed Washer (3)

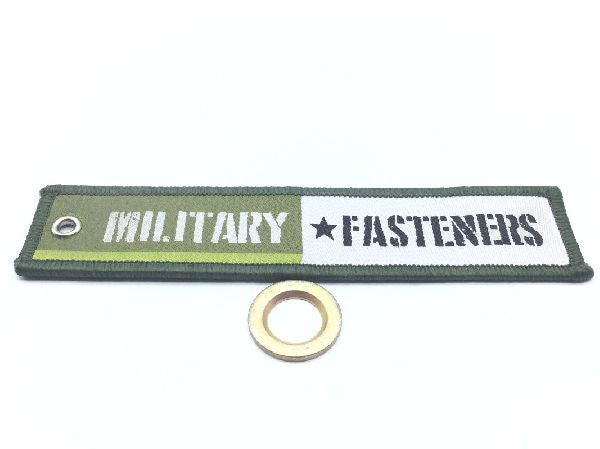

MS20002C8 Recessed Washer (4)

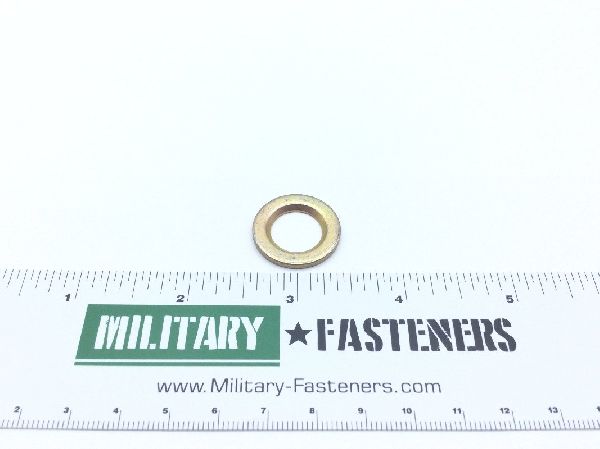

MS20002C8 Recessed Washer (5)

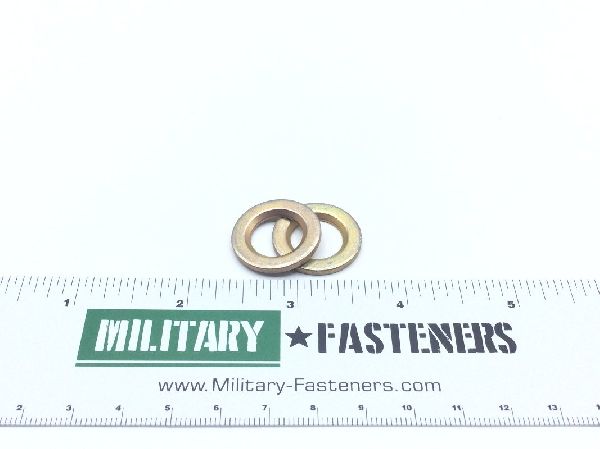

MS20002C8 Recessed Washer (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20002C8 Recessed Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 1330 or steel comp 4130

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Material Specification: 66 federal standard all material responses
Material Thickness: 0.078 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Outside Diameter: 0.875 inches
Recess Angle: 90.0 degrees
Recess Diameter: Between 0.604 inches and 0.620 inches
Style Designator: Recessed
Hole Diameter: Between 0.504 inches and 0.515 inches
