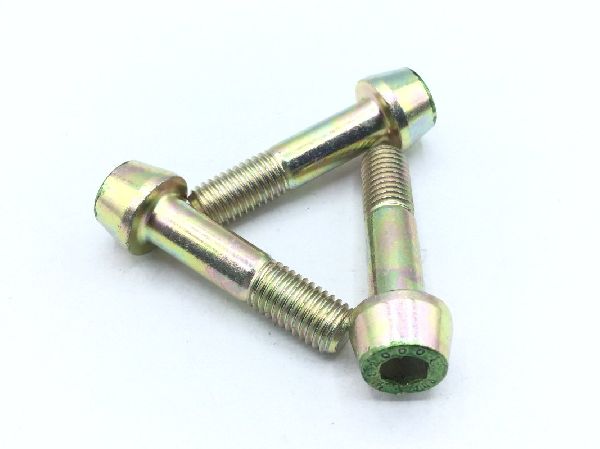

MS20004-9 Internal Wrenching Bolt

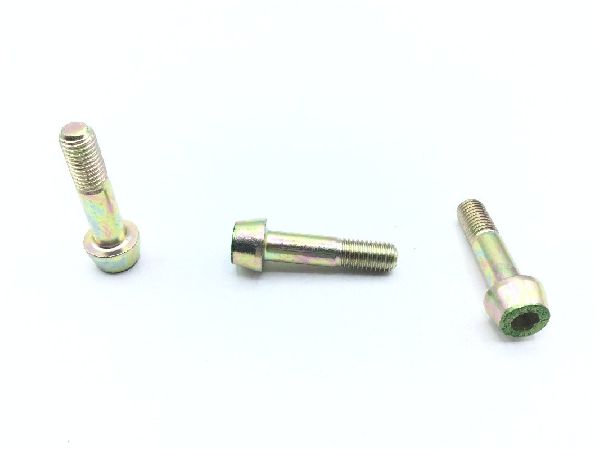

MS20004-9 Internal Wrenching Bolt (2)

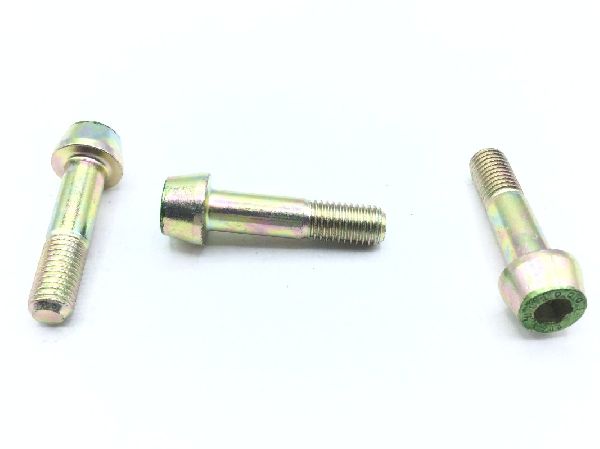

MS20004-9 Internal Wrenching Bolt (3)

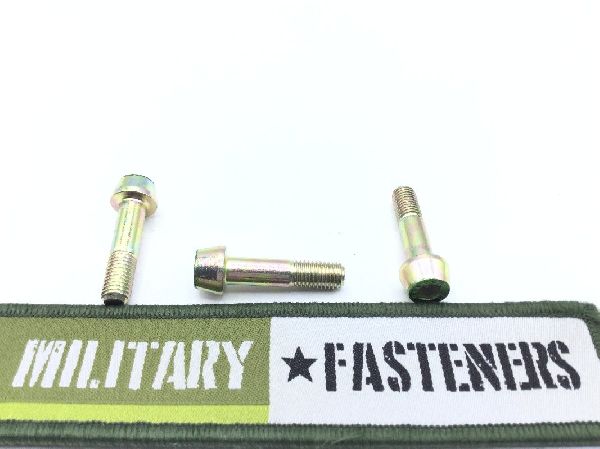

MS20004-9 Internal Wrenching Bolt (4)

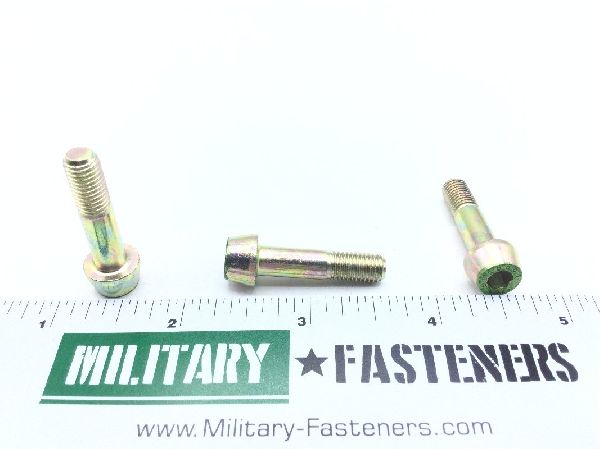

MS20004-9 Internal Wrenching Bolt (5)

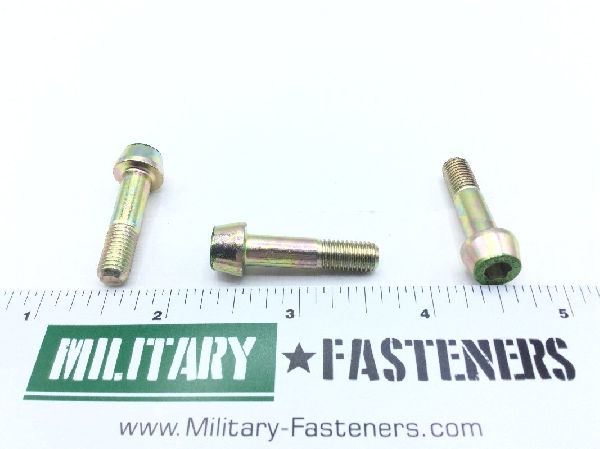

MS20004-9 Internal Wrenching Bolt (6)
MS20004-9 Internal Wrenching Bolt
MS20004-9 Internal Wrenching Bolt (2)
MS20004-9 Internal Wrenching Bolt (3)
MS20004-9 Internal Wrenching Bolt (4)
MS20004-9 Internal Wrenching Bolt (5)
MS20004-9 Internal Wrenching Bolt (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20004-9 Internal Wrenching Bolt

Product Series
MS
ECCN
EAR99
Schedule
7318.15.2000
Price per Unit $14.73
Units per Pack 5
Price per Pack $73.65
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:
Total Packs 1
Total Price $73.65
Add item to quote
Head Style
Bevel-conical
Material
Steel
Thread Class
3a
Fastener Length
Between 1.047 inches and 1.077 inches
Hardness Rating
36.0 rockwell c and 40.0 rockwell c
Head Height
0.250 inches
Internal Drive Style
Hexagon
Min. Tensile Strength (psi)
160000 pounds per square inch
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
0.500 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unf (fine thread)
Width Across Flats
Between 0.188 inches and 0.190 inches
Head Diameter
Between 0.428 inches and 0.438 inches
