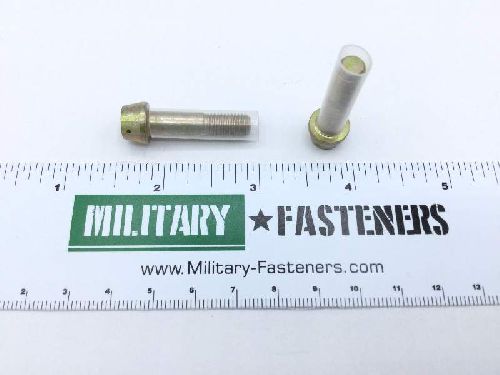

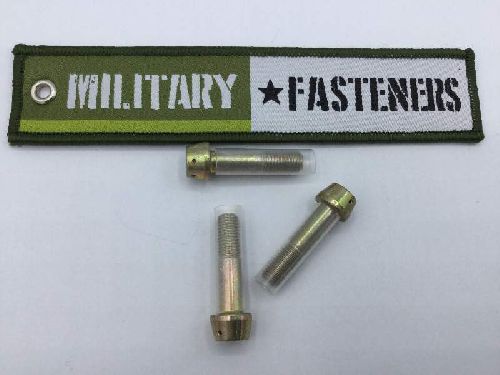

MS20004H9 Internal Wrenching Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Bevel-conical

Material

Steel comp 4340 or steel comp 4140 or steel comp 8740 or steel comp 8735

Surface Treatment

Qq-p-416 ty2 cl2 federal specification single treatment response

Thread Class

Fastener Length: 1.062 inches
Head Height: 0.250 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 4
Hole Type: Drilled
Internal Drive Style: Hexagon
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.475 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Across Flats: Between 0.1880 inches and 0.1900 inches
Head Diameter: Between 0.428 inches and 0.438 inches
Hole Diameter: Between 0.037 inches and 0.042 inches
