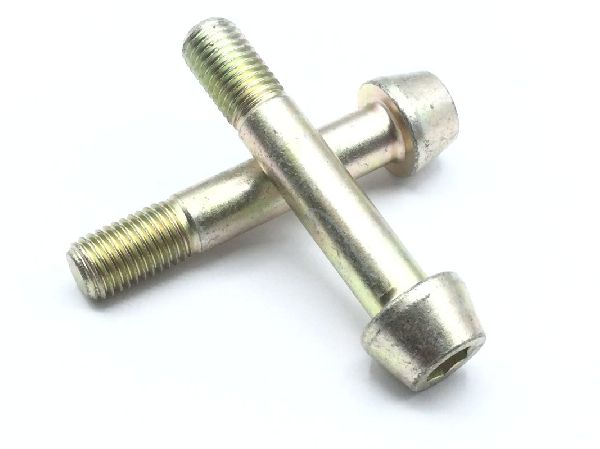

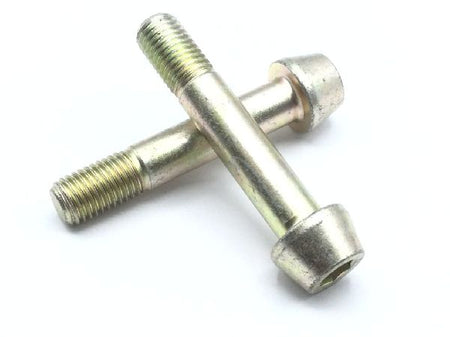

MS20005-18 Internal Wrenching Bolt

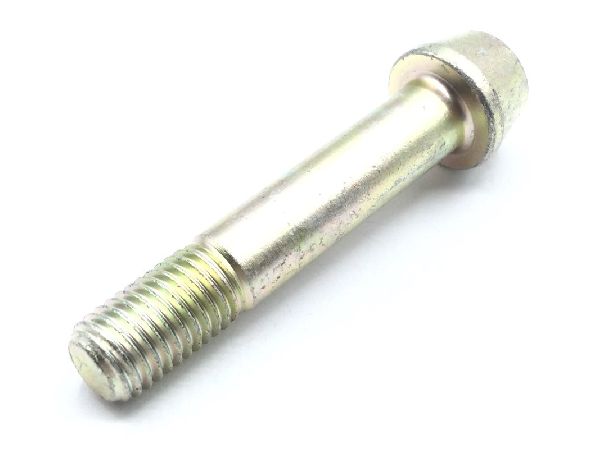

MS20005-18 Internal Wrenching Bolt (2)

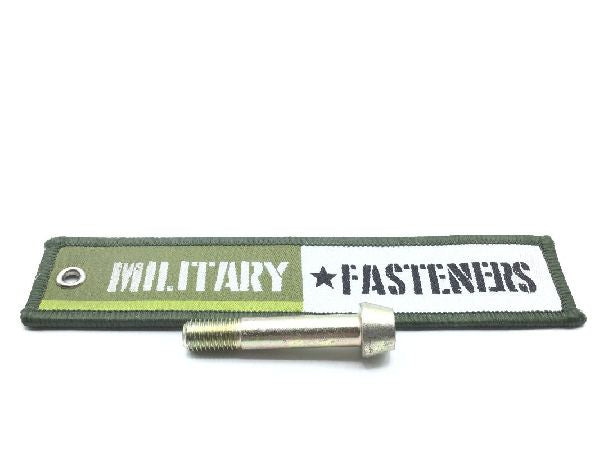

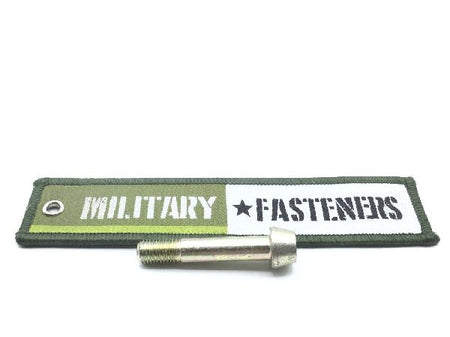

MS20005-18 Internal Wrenching Bolt (3)

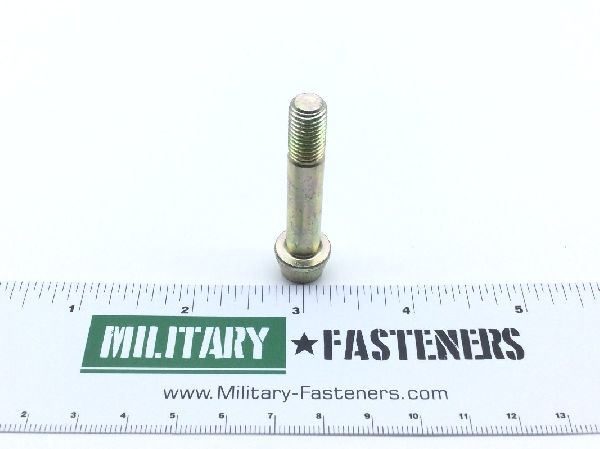

MS20005-18 Internal Wrenching Bolt (4)

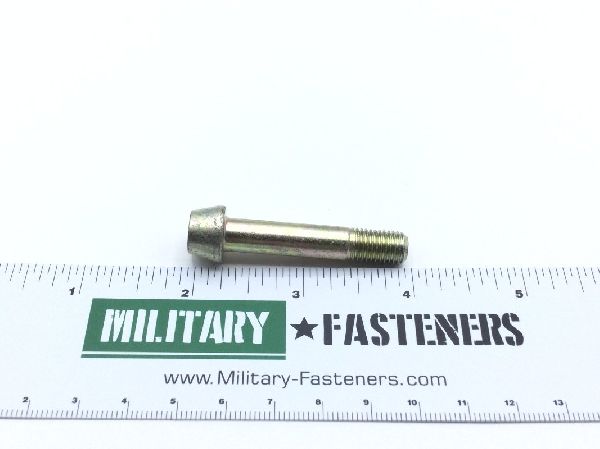

MS20005-18 Internal Wrenching Bolt (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20005-18 Internal Wrenching Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $9.18

Units per Pack 5

Price per Pack $45.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $45.90

Add item to quote

Head Style

Bevel-conical

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification all treatment responses

Thread Class

3a

Fastener Length: Between 1.610 inches and 1.640 inches
Hardness Rating: 34.0 rockwell c and 40.0 rockwell c
Head Height: 0.250 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.475 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.188 inches and 0.190 inches
Head Diameter: Between 0.428 inches and 0.438 inches
