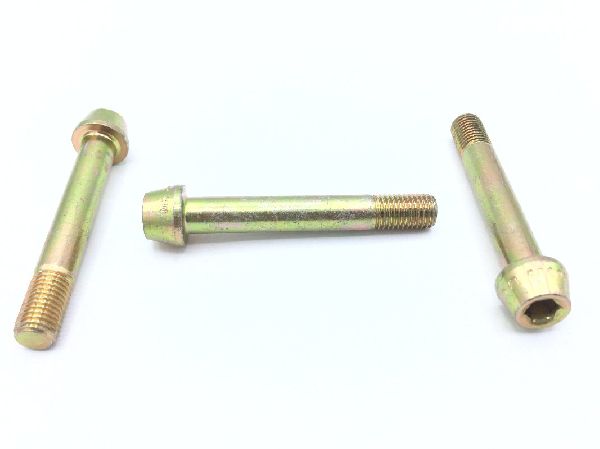

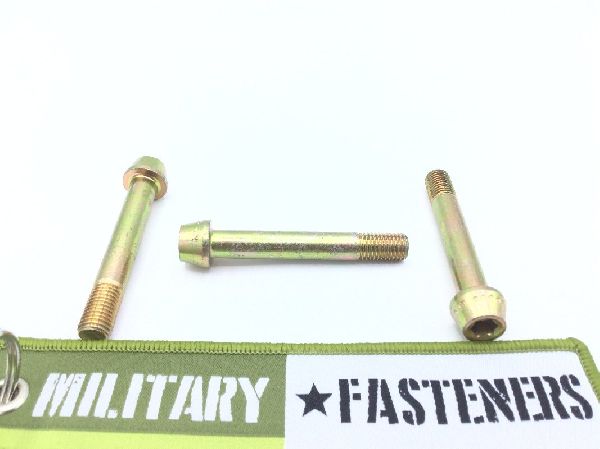

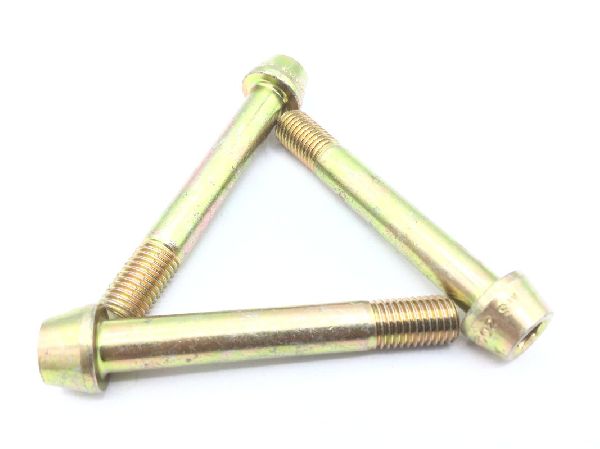

MS20005-25 Internal Wrenching Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification all treatment responses

Thread Class

Fastener Length: Between 2.110 inches and 2.140 inches
Hardness Rating: 34.0 rockwell c and 40.0 rockwell c
Head Height: 0.312 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.537 inches and 0.587 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.219 inches and 0.221 inches
Head Diameter: Between 0.521 inches and 0.531 inches
