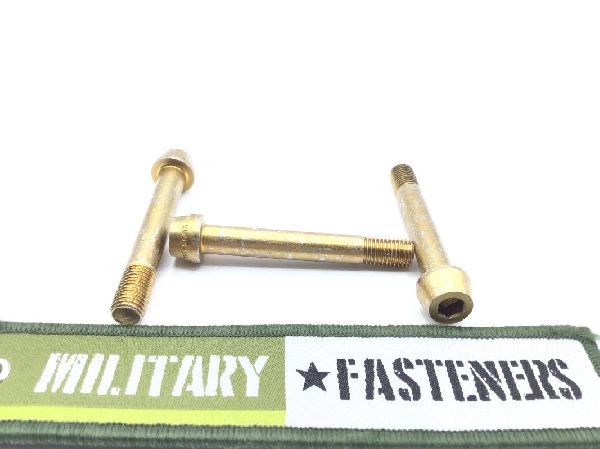

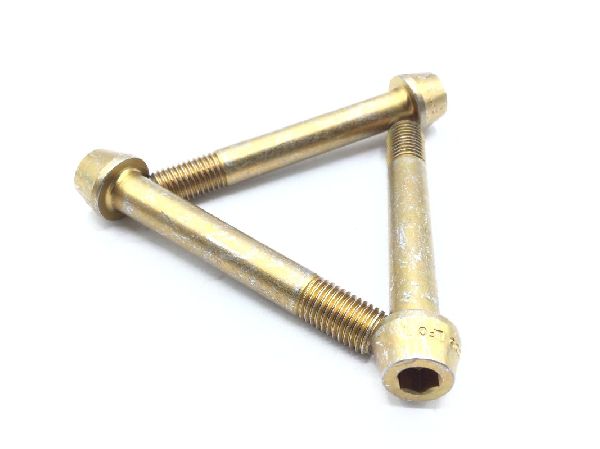

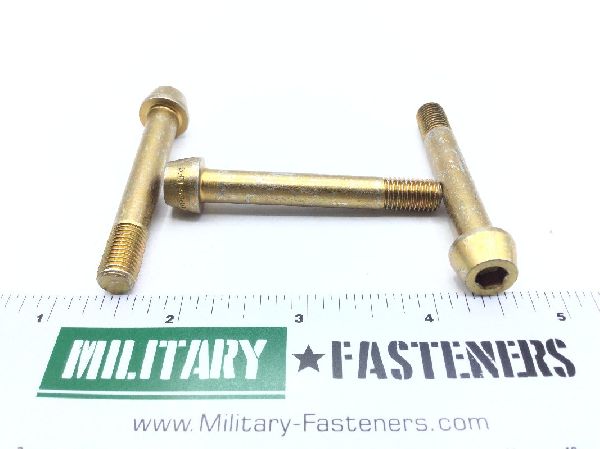

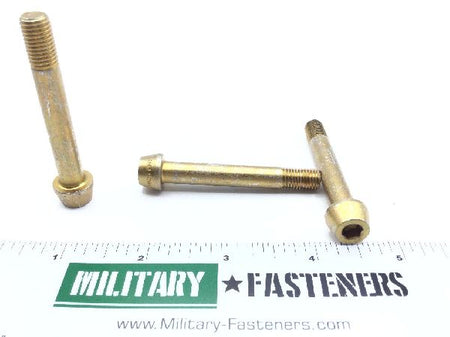

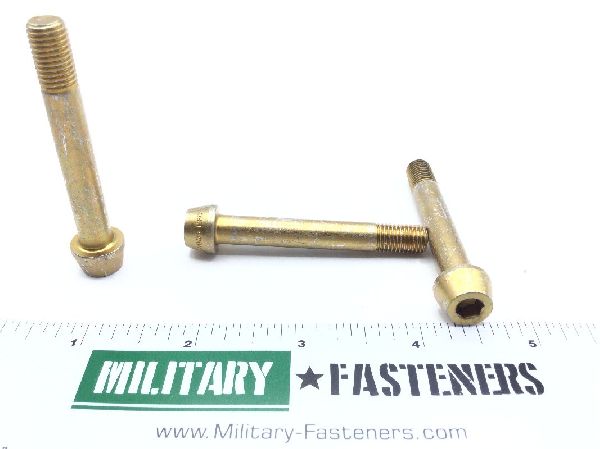

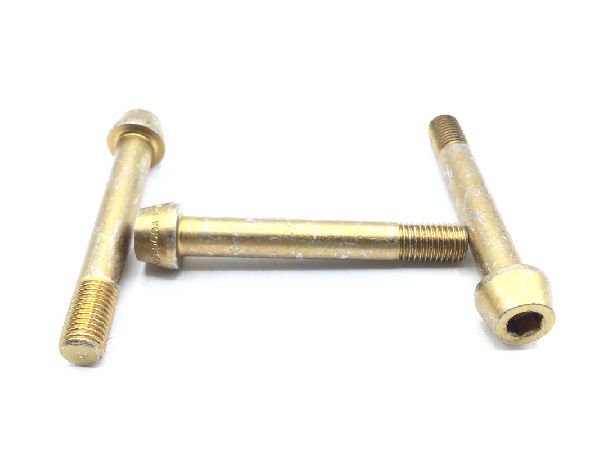

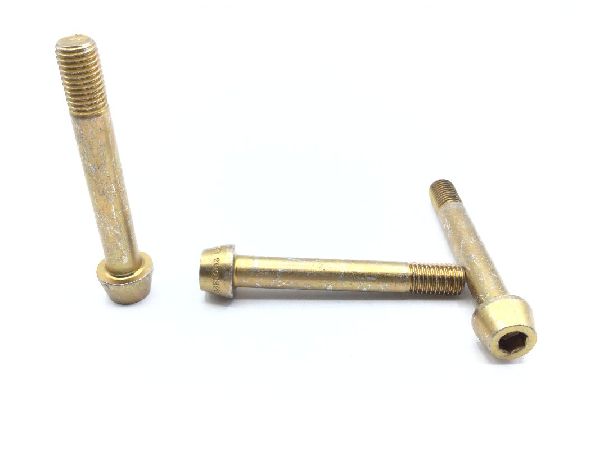

MS20005-26 Internal Wrenching Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $9.01

Units per Pack 5

Price per Pack $45.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $45.05

Add item to quote

Head Style

Bevel-conical

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

Fastener Length: Between 2.173 inches and 2.203 inches
Head Height: 0.312 inches
Internal Drive Style: Hexagon
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-5626 military specification 2nd material response or mil-s-6049 military specification 3rd material response or mil-s-8735 military specification 4th material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.537 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Across Flats: Between 0.219 inches and 0.221 inches
Head Diameter: Between 0.521 inches and 0.531 inches
