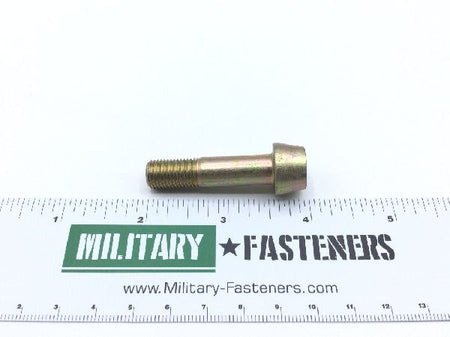

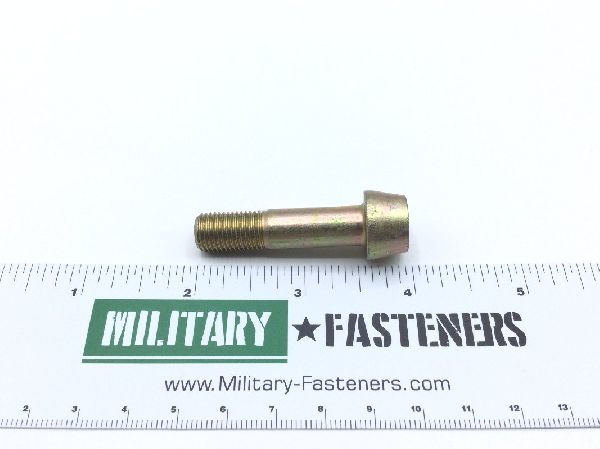

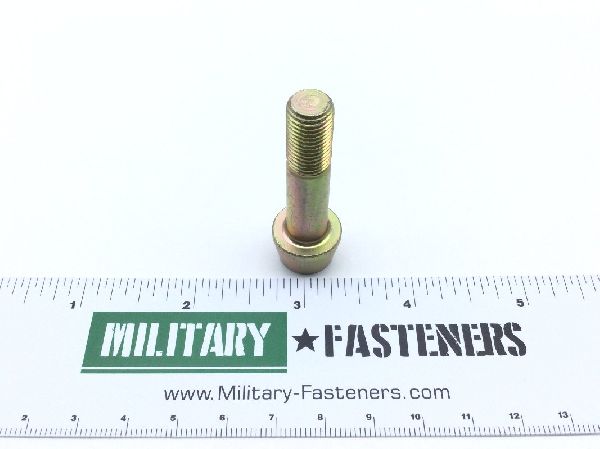

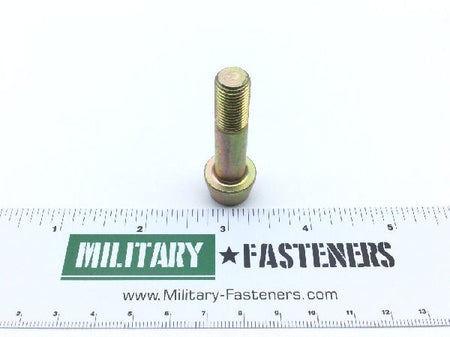

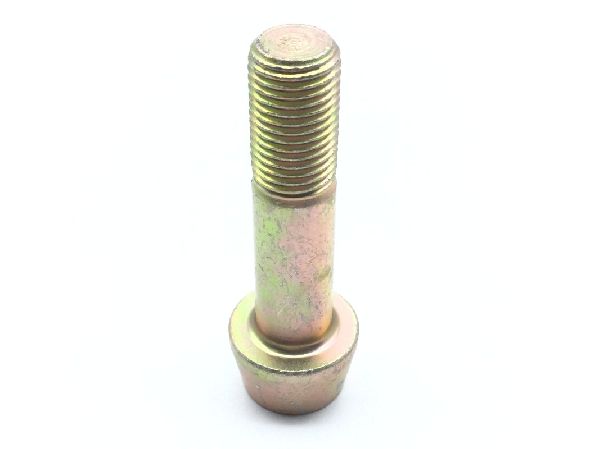

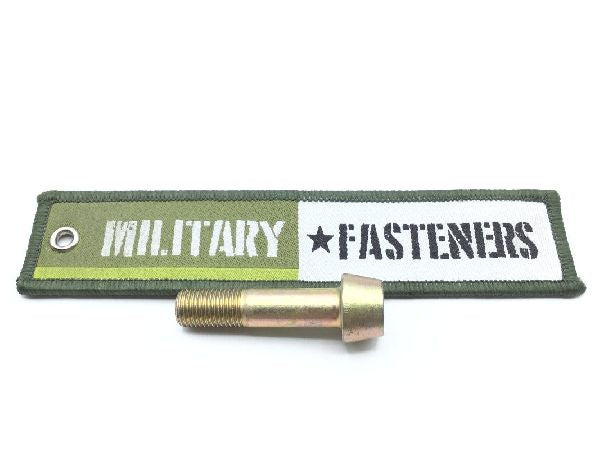

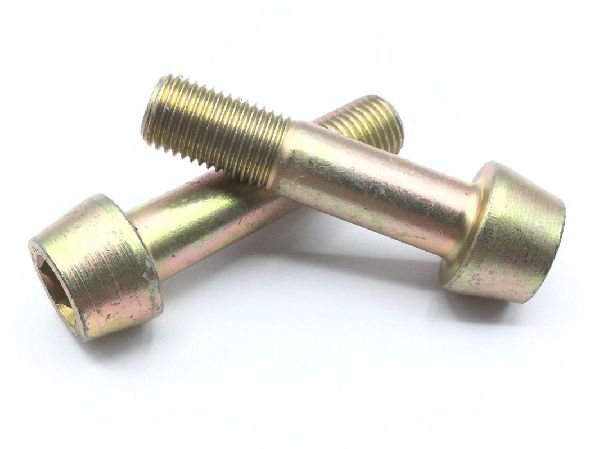

MS20006-14 Internal Wrenching Bolt

Product Series: MS
ECCN: 9A991.D
Schedule: 7318.15.8085

Price per Unit $12.13

Units per Pack 5

Price per Pack $60.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $60.65

Add item to quote

Head Style

Bevel-conical

Material

Steel

Surface Treatment

Type 2 class 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: 1.562 inches
Hardness Rating: 34.0 rockwell c and 40.0 rockwell c
Head Height: 0.375 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 15200 pounds per square inch
Specification Data: 96906-ms20004 government standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.677 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Across Flats: Between 0.3130 inches and 0.3150 inches
Head Diameter: Between 0.639 inches and 0.649 inches
