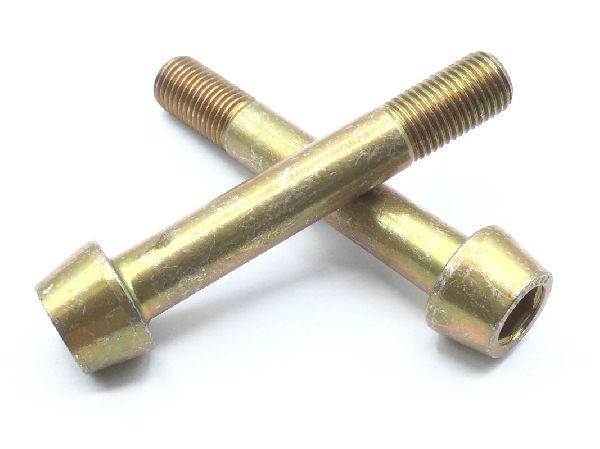

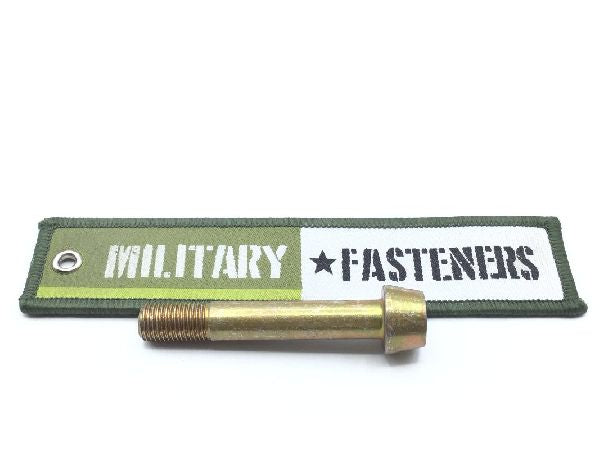

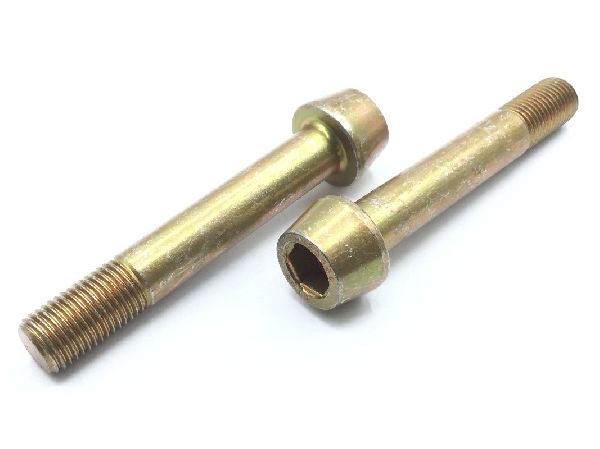

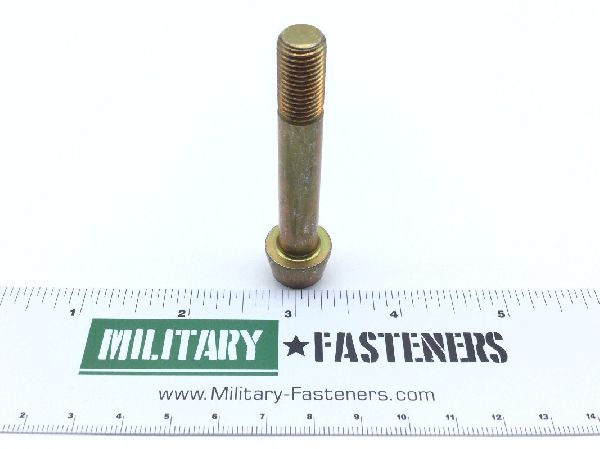

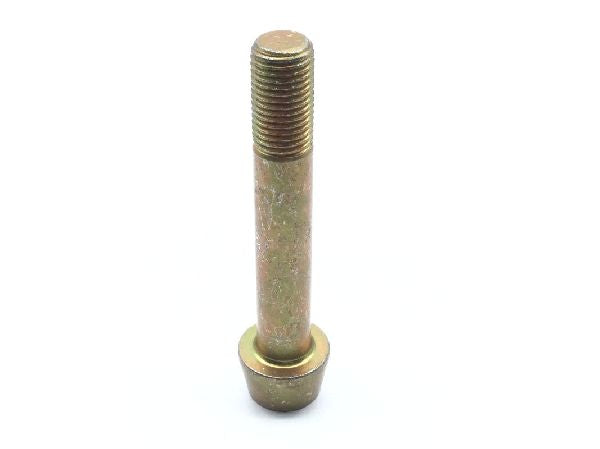

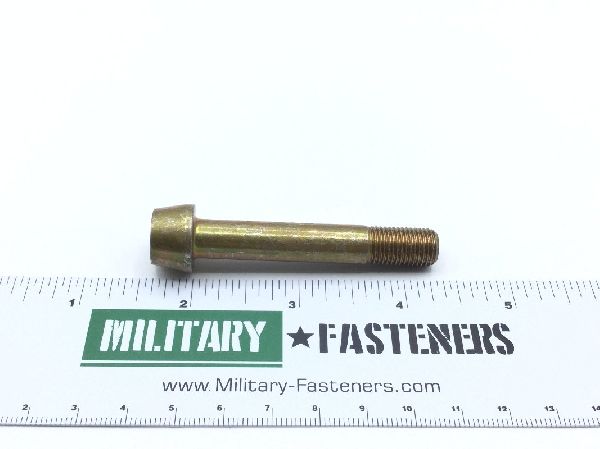

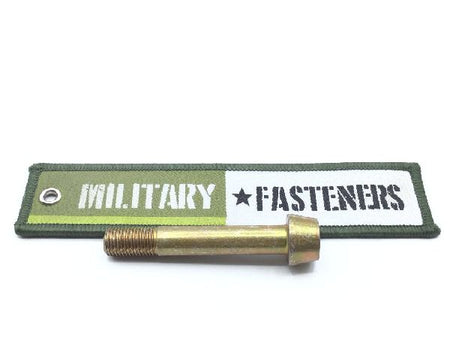

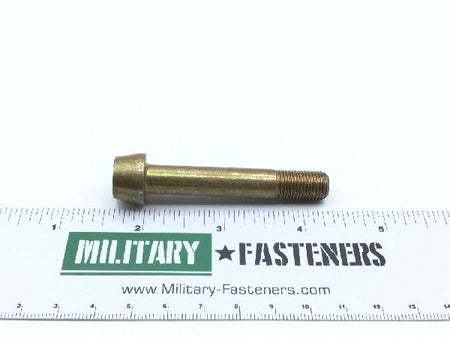

MS20006-26 Internal Wrenching Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Bevel-conical

Material

Steel

Surface Treatment

type 2 federal specification single treatment response cl 2 qq-p-416

Thread Class

Fastener Length: Between 2.297 inches and 2.327 inches
Hardness Rating: 34.0 rockwell c and 40.0 rockwell c
Head Height: 0.375 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 96906-ms20006 government specification
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.662 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Across Flats: Between 0.313 inches and 0.315 inches
Head Diameter: 0.520 inches
