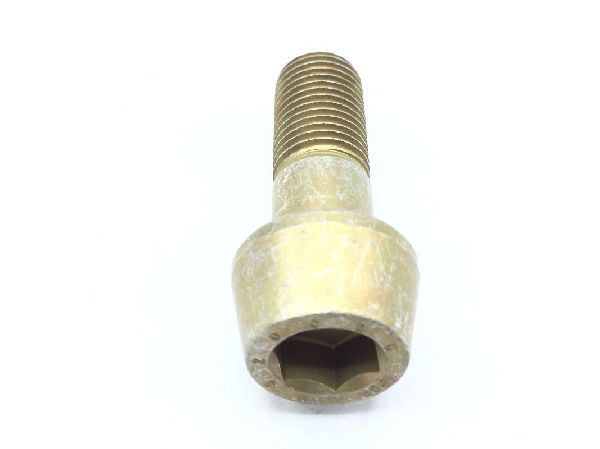

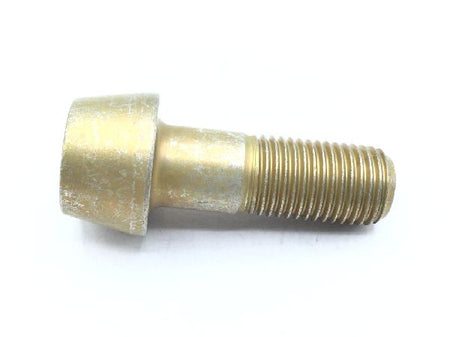

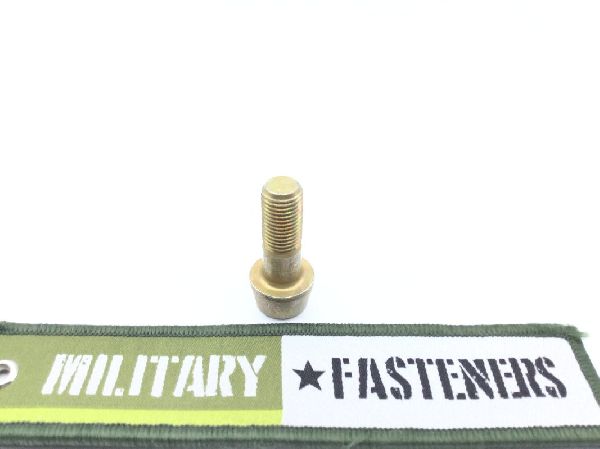

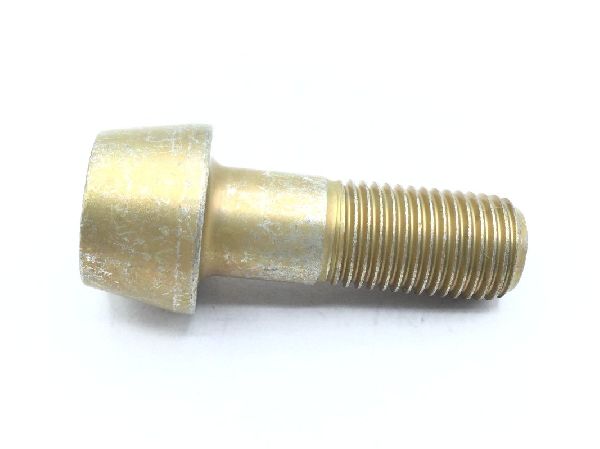

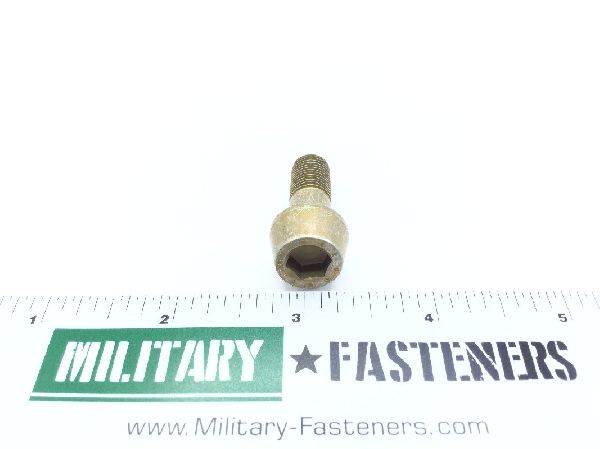

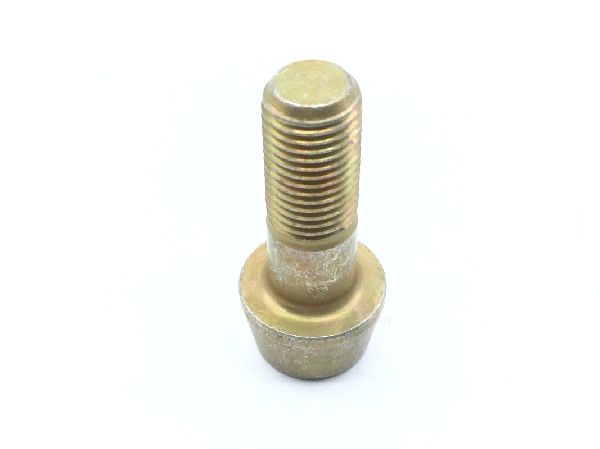

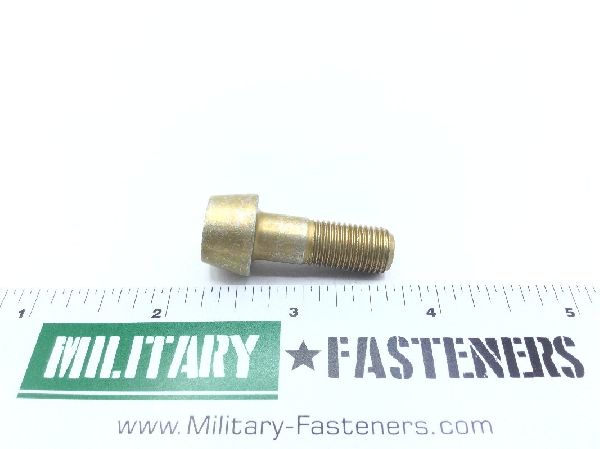

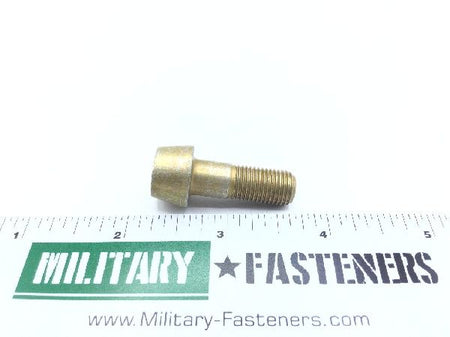

MS20006-6 Internal Wrenching Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: Between 1.047 inches and 1.077 inches
Hardness Rating: 34.0 rockwell c and 40.0 rockwell c
Head Height: 0.375 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.662 inches and 0.712 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.313 inches and 0.315 inches
Head Diameter: Between 0.639 inches and 0.649 inches
