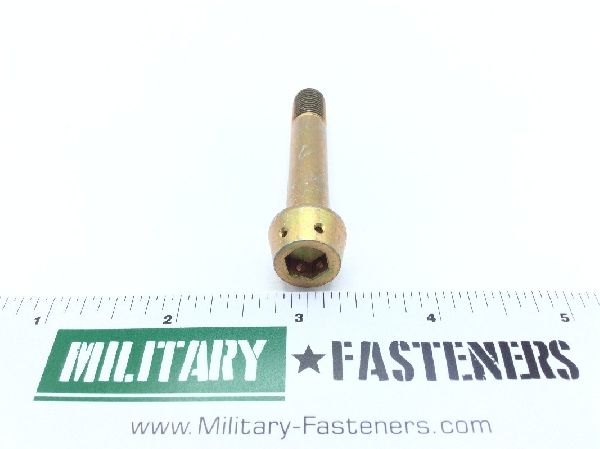

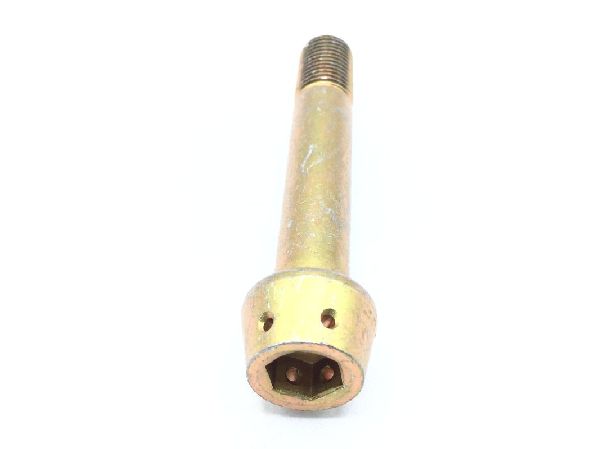

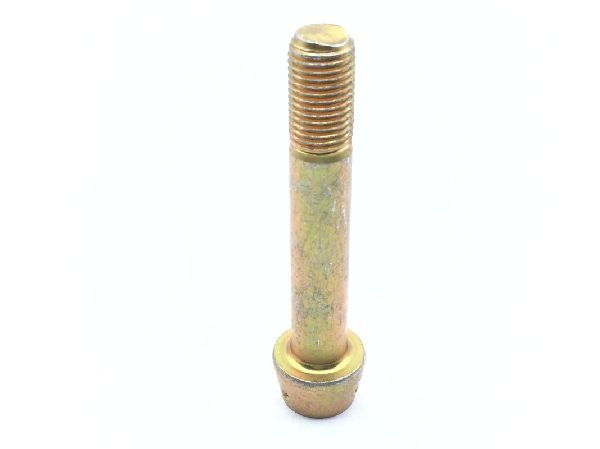

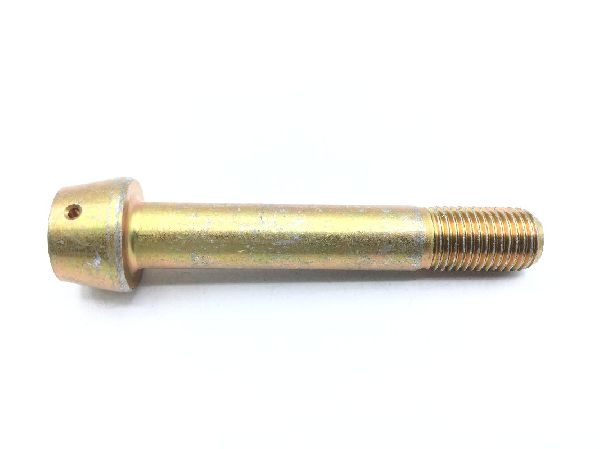

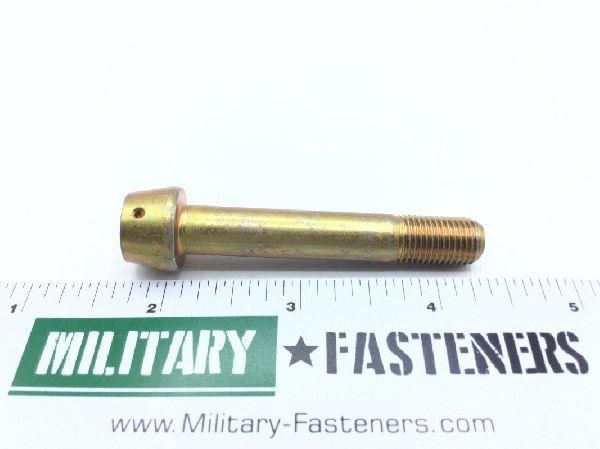

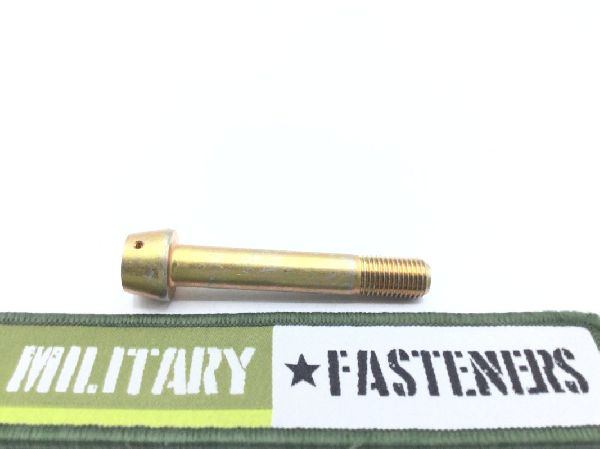

MS20006H25 Internal Wrenching Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $30.42

Units per Pack 1

Price per Pack $30.42

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $30.42

Add item to quote

Head Style

Bevel-conical

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Ty2 cl 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: Between 2.235 inches and 2.265 inches
Hardness Rating: 34.0 rockwell c and 40.0 rockwell c
Head Height: 0.375 inches
Hole Configuration Style: Round
Hole Quantity: 4
Hole Type: Drilled
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.662 inches and 0.712 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.313 inches and 0.315 inches
Head Diameter: Between 0.639 inches and 0.649 inches
Hole Diameter: 0.055 inches
