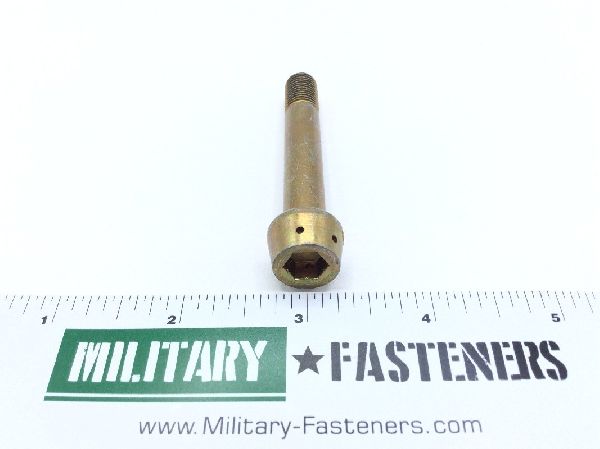

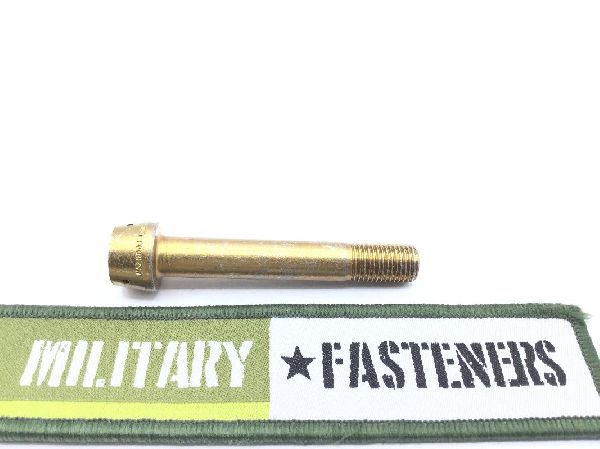

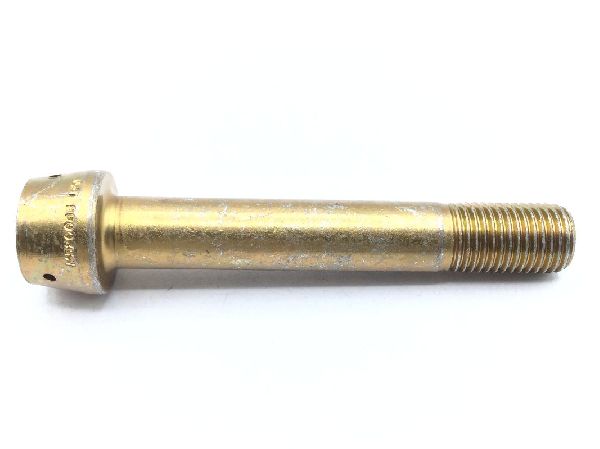

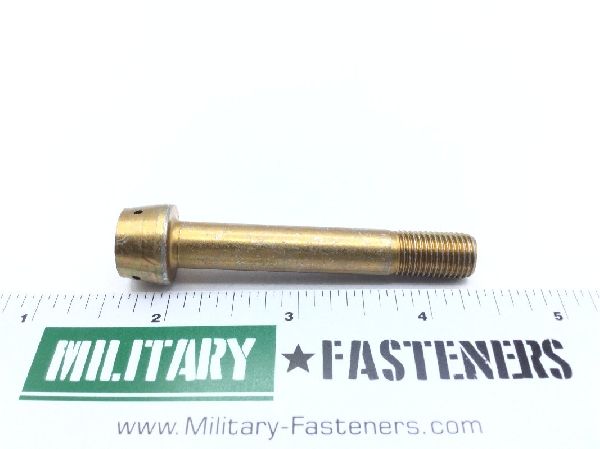

MS20006H27 Internal Wrenching Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $29.80

Units per Pack 1

Price per Pack $29.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $29.80

Add item to quote

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: Between 2.360 inches and 2.390 inches
Hardness Rating: 34.0 rockwell c and 40.0 rockwell c
Head Height: 0.375 inches
Hole Configuration Style: Round longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.662 inches and 0.712 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.313 inches and 0.315 inches
Head Diameter: Between 0.639 inches and 0.649 inches
Hole Diameter: 0.055 inches
