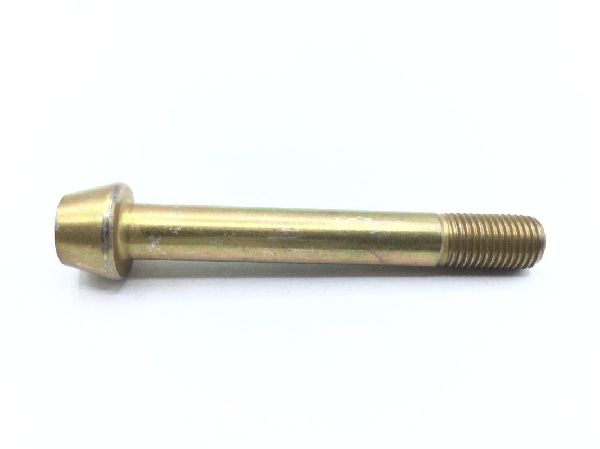

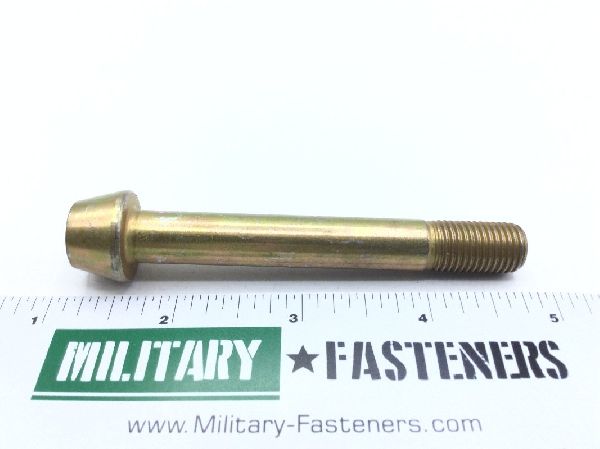

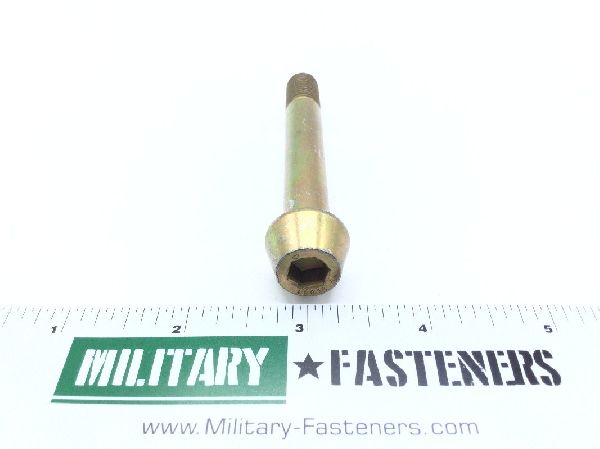

MS20007-38 Internal Wrenching Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 2 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: Between 3.173 inches and 3.203 inches
Hardness Rating: 34.0 rockwell c and 40.0 rockwell c
Head Height: 0.438 inches
Hole Configuration Style: Round
Hole Quantity: 4
Hole Type: Drilled
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.438 inches
Thread Direction: Right-hand
Thread Length: Between 0.788 inches and 0.838 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.313 inches and 0.315 inches
Head Diameter: Between 0.740 inches and 0.750 inches
Hole Diameter: 0.055 inches
