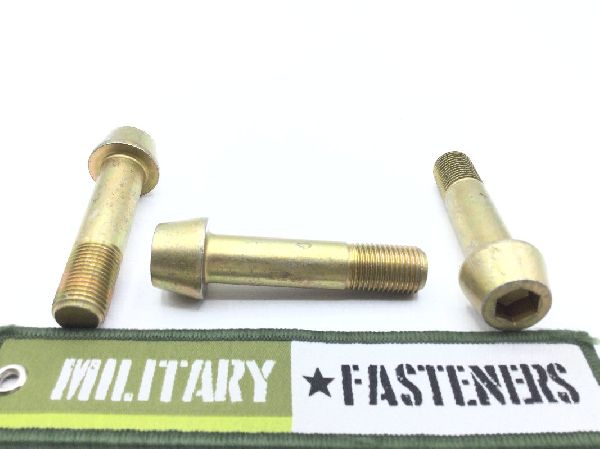

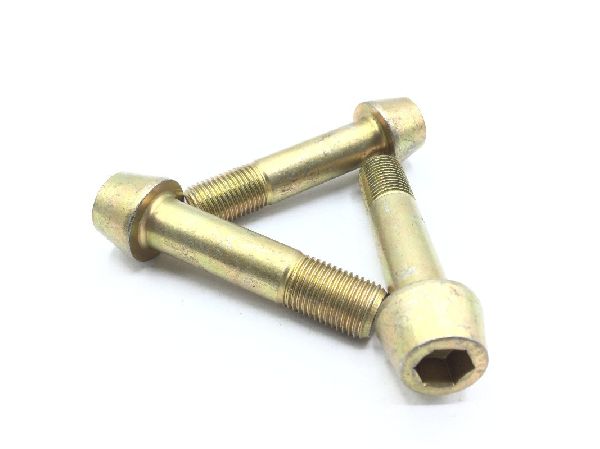

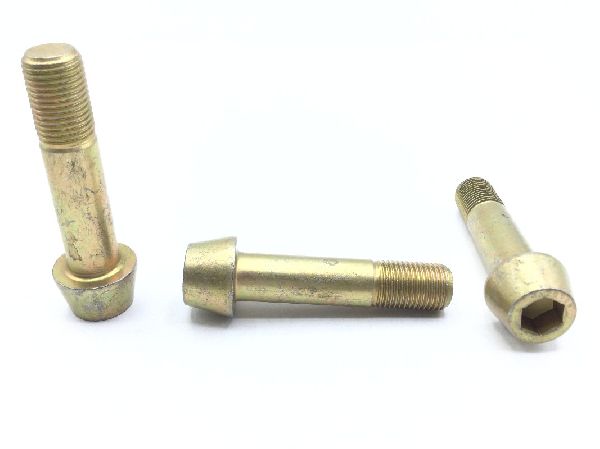

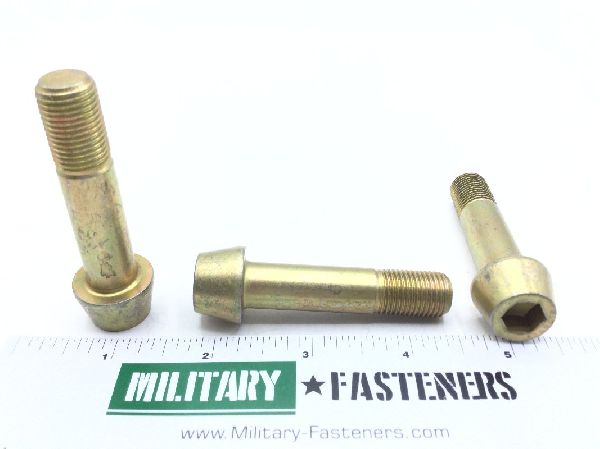

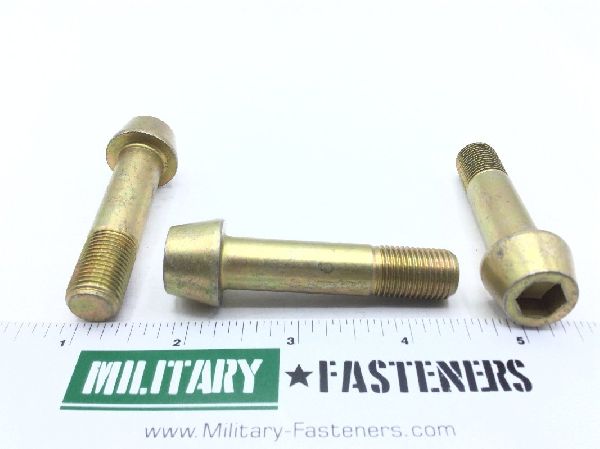

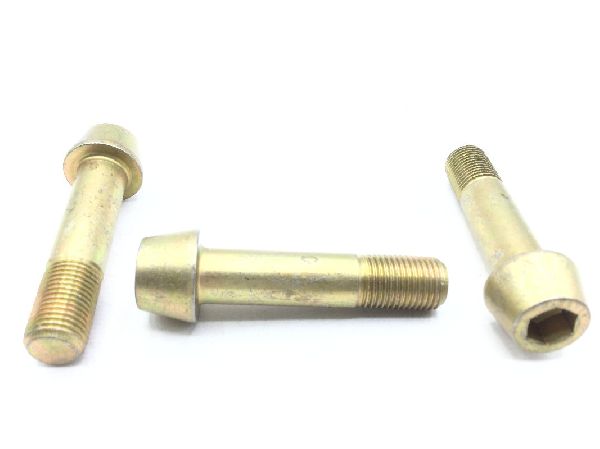

MS20008-22 Internal Wrenching Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Bevel-conical

Material

Steel comp 4140 and steel comp e4340 and steel comp 6150 and steel comp 8735 and steel comp 8740

Surface Treatment

Cl2 federal specification single treatment response ty2 qq-p-416

Thread Class

Fastener Length: Between 2.173 inches and 2.203 inches
Hardness Rating: 34.0 rockwell c and 40.0 rockwell c
Head Height: 0.500 inches
Internal Drive Style: Hexagon
Material Specification: Mil-s-5626 military specification 1st material response or mil-5000 military specification 2nd material response or mil-s-8503 military specification 3rd material response or mil-s-6098 military specification 4th material response
Min. Tensile Strength (psi): 27400 pounds per square inch
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: Between 0.787 inches and 0.837 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.3755 inches and 0.3785 inches
Head Diameter: Between 0.818 inches and 0.828 inches
