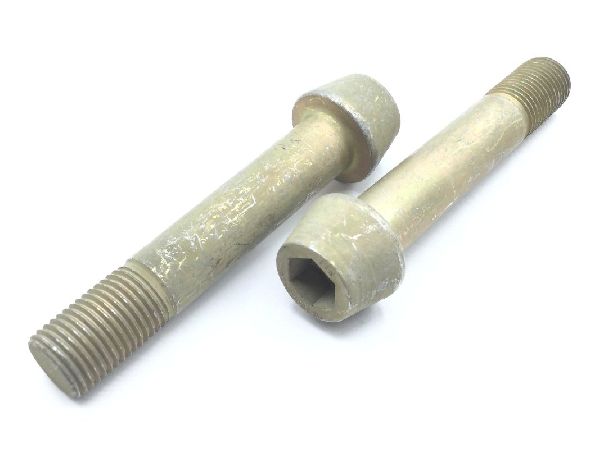

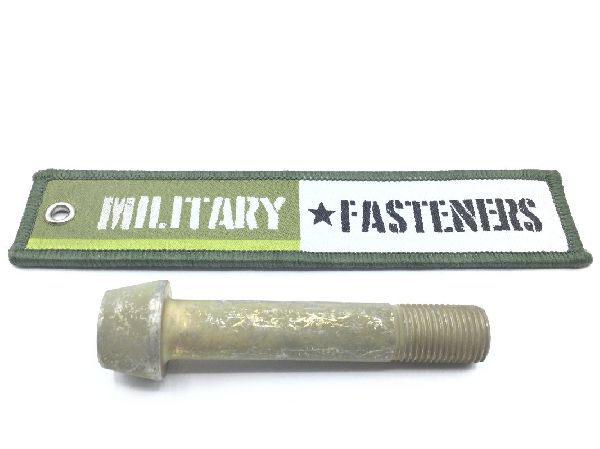

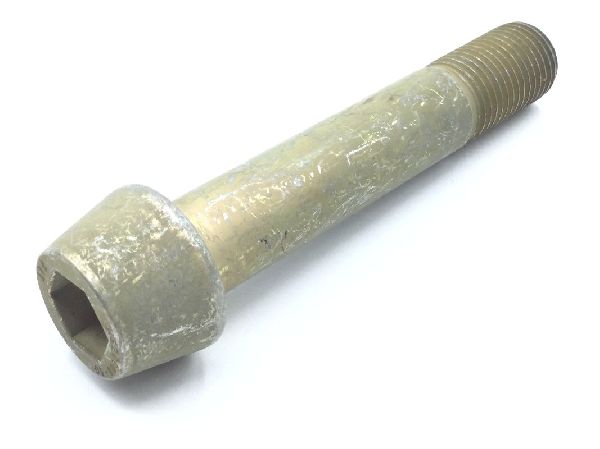

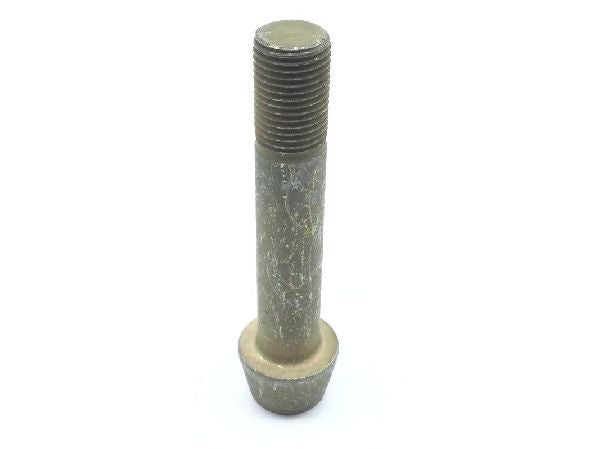

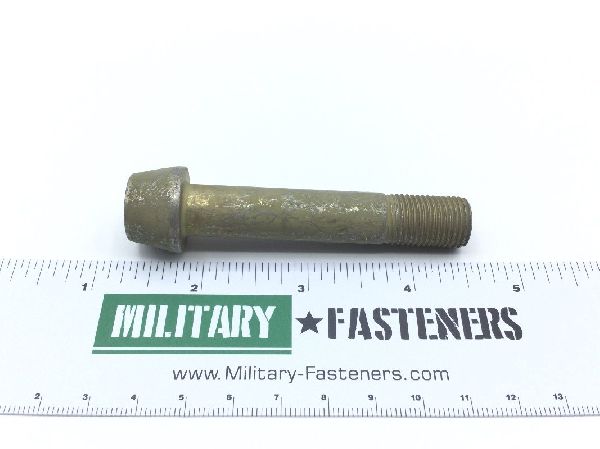

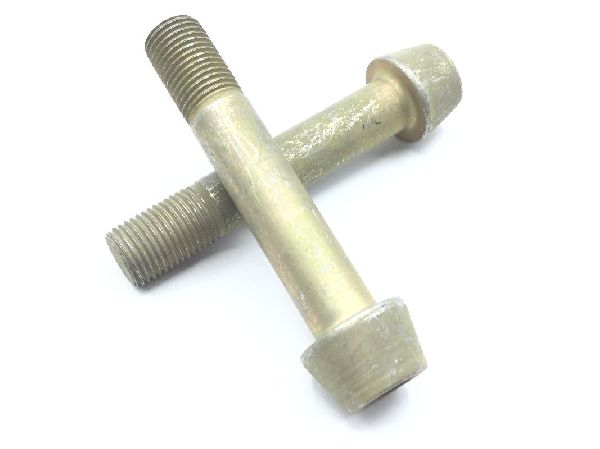

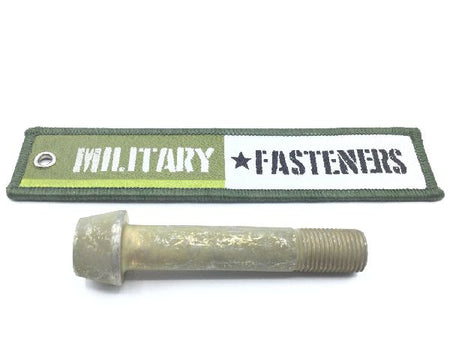

MS20008-30 Internal Wrenching Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $28.76

Units per Pack 5

Price per Pack $143.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $143.80

Add item to quote

Material

Steel

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: Between 2.673 inches and 2.703 inches
Hardness Rating: 34.0 rockwell c and 40.0 rockwell c
Head Height: 0.500 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: Between 0.788 inches and 0.838 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.376 inches and 0.379 inches
Head Diameter: Between 0.818 inches and 0.828 inches
