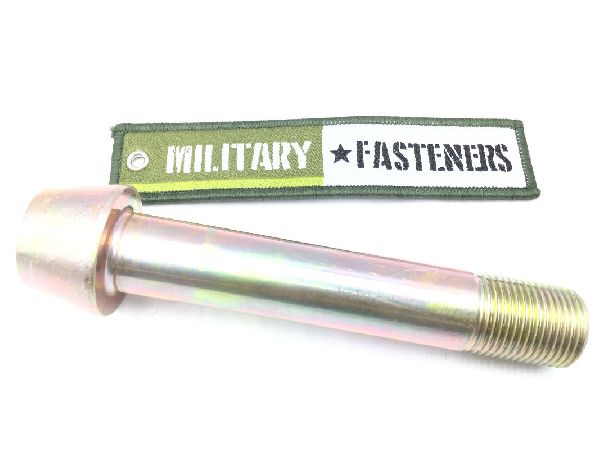

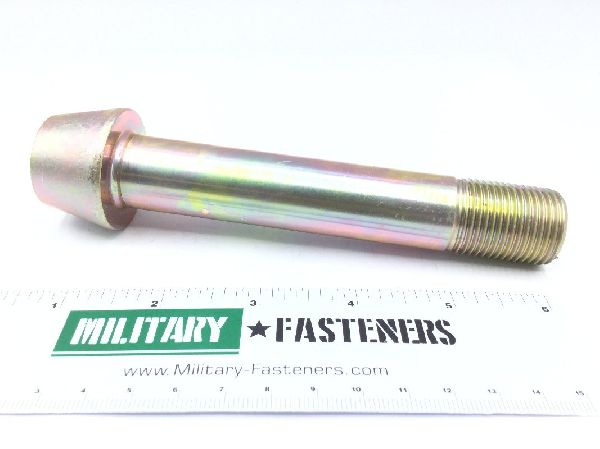

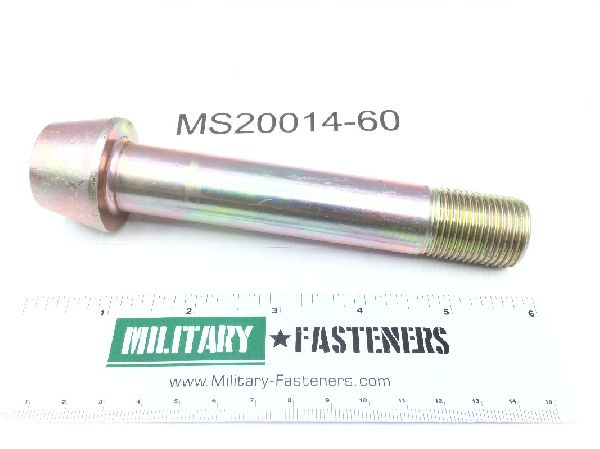

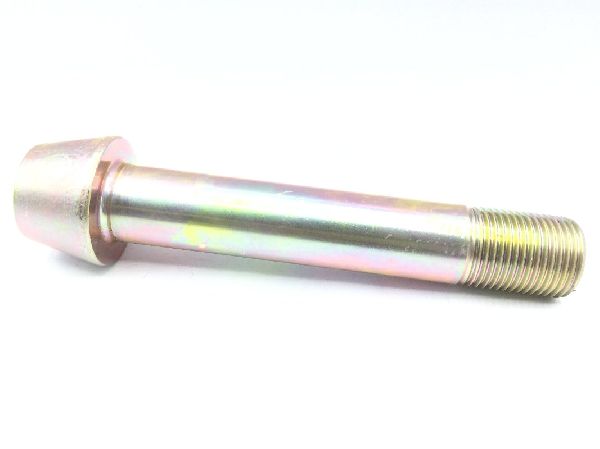

MS20014-60 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $121.01

Units per Pack 1

Price per Pack $121.01

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $121.01

Add item to quote

Head Style

Bevel-conical

Material

Steel comp

Surface Treatment

Type 2 class 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: Between 4.923 inches and 4.953 inches
Hardness Rating: 34 rockwell and 40 rockwell
Head Height: 0.875 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.875 inches
Thread Direction: Right-hand
Thread Length: Between 1.162 inches and 1.212 inches
Thread Qty Per Inch (tpi): 14
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.625 inches and 0.629 inches
Head Diameter: Between 1.428 inches and 1.438 inches
