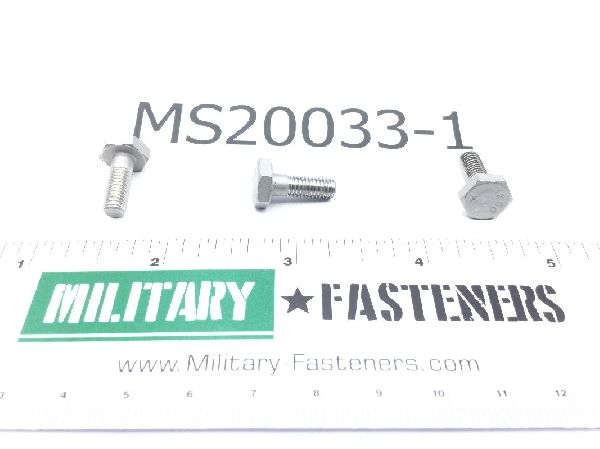

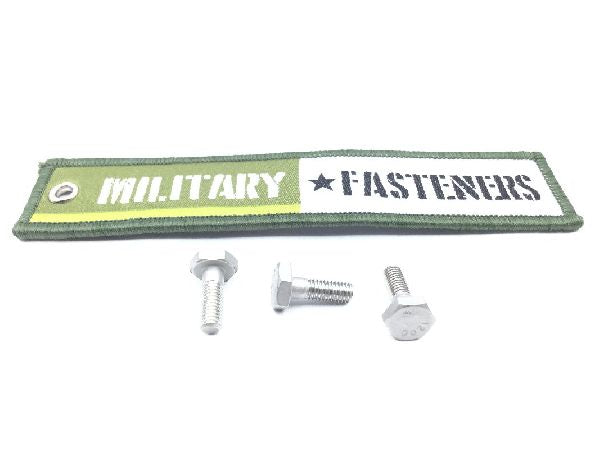

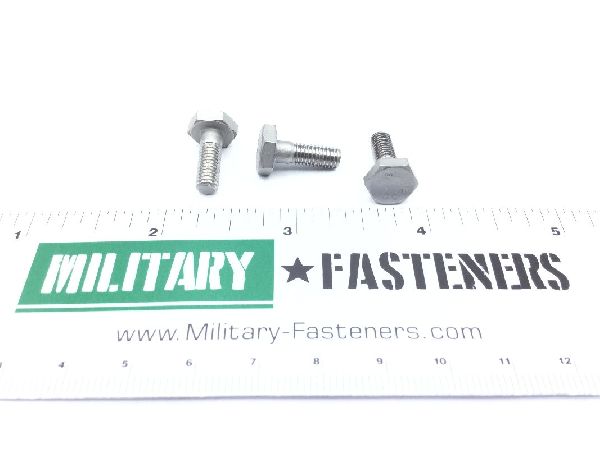

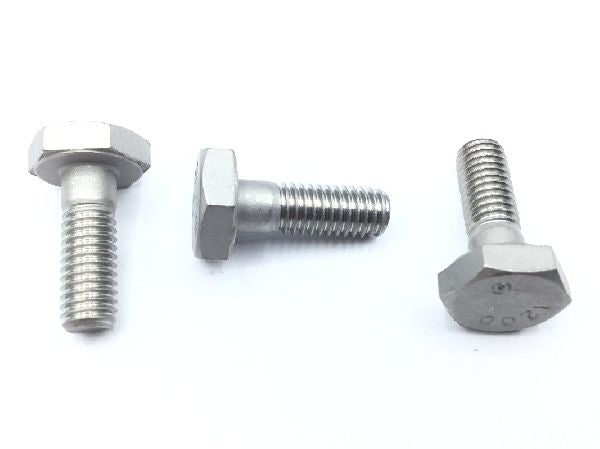

MS20033-1 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $4.16

Units per Pack 10

Price per Pack $41.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.60

Add item to quote

Head Style

Hexagon

Material

Stainless Steel

Thread Class

Fastener Length: 0.547 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 0.125 inches
Head Height: Between 0.109 inches and 0.141 inches
Material Specification: Mil-b-7874 military specification single material response
Min. Tensile Strength (psi): 110000 pounds per square inch
Minimum Yield Strength: 90000 pounds per square inch
Special Test Features: Rupture strength at 1200 deg. f shall not be less than 47000 psi in 100 hours
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.422 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
