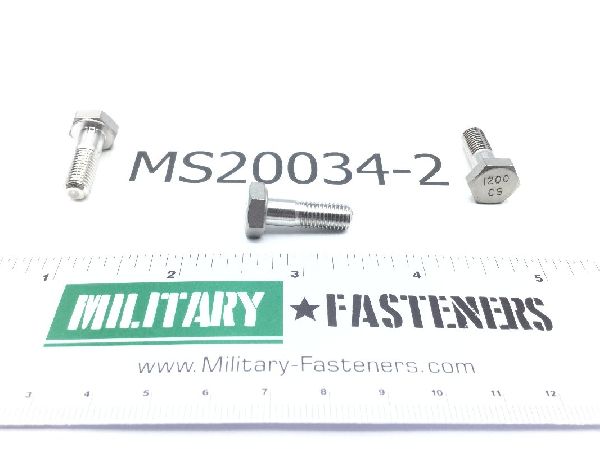

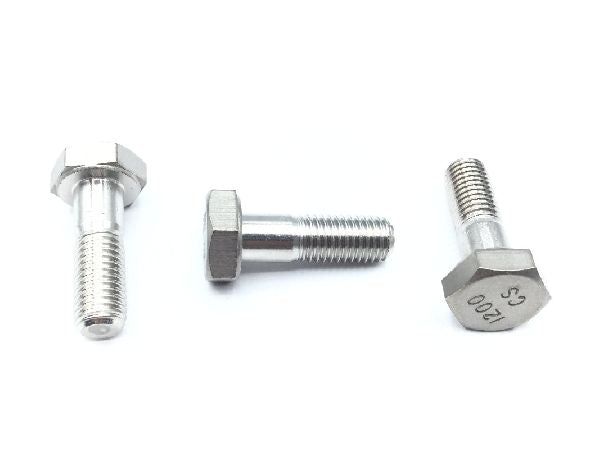

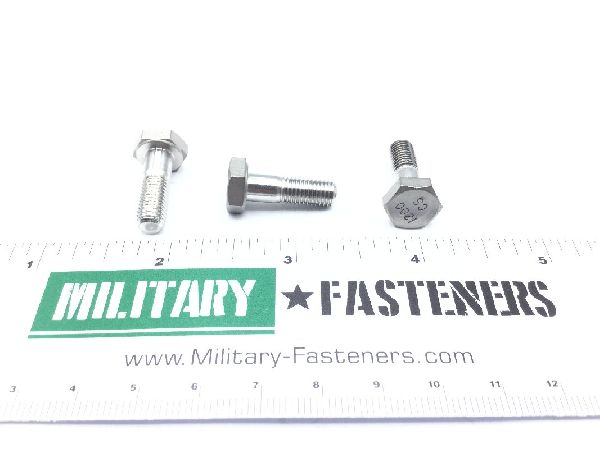

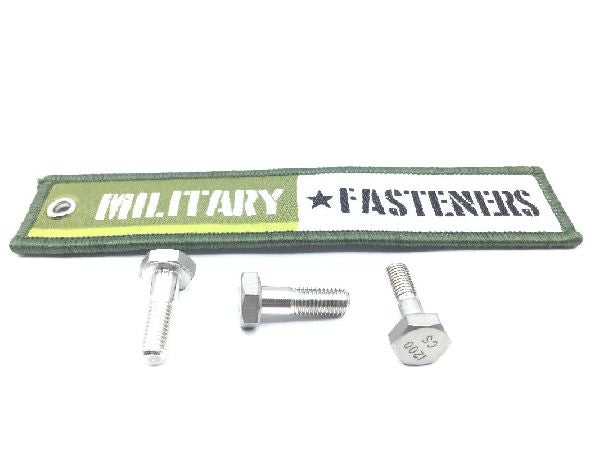

MS20034-2 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel

Thread Class

Fastener Length: Between 0.750 inches and 0.797 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.234 inches and 0.266 inches
Hardness Rating: 27.0 rockwell c and 37.0 rockwell c
Head Height: Between 0.140 inches and 0.172 inches
Material Specification: Mil-b-7874 military specification single material response
Min. Tensile Strength (psi): 140000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.484 inches and 0.563 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.428 inches and 0.440 inches
