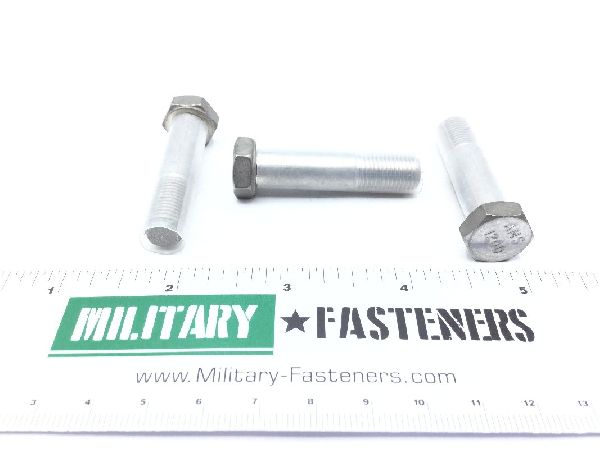

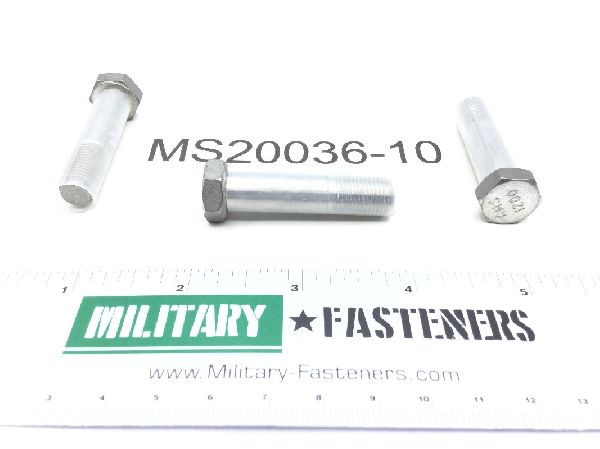

MS20036-10 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Stainless Steel

Thread Class

3a

Thread Quantity Per Inch (tpi)

24

Fastener Length: Between 1.656 inches and 1.703 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.984 inches and 1.016 inches
Hardness Rating: 27.0 rockwell c and 37.0 rockwell c
Head Height: Between 0.203 inches and 0.235 inches
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.640 inches and 0.719 inches
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.553 inches and 0.565 inches
