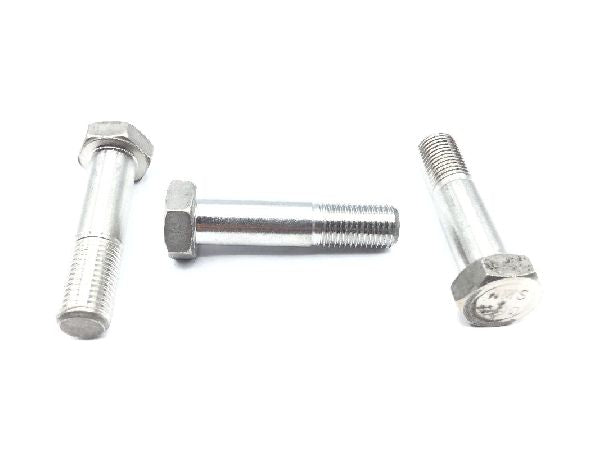

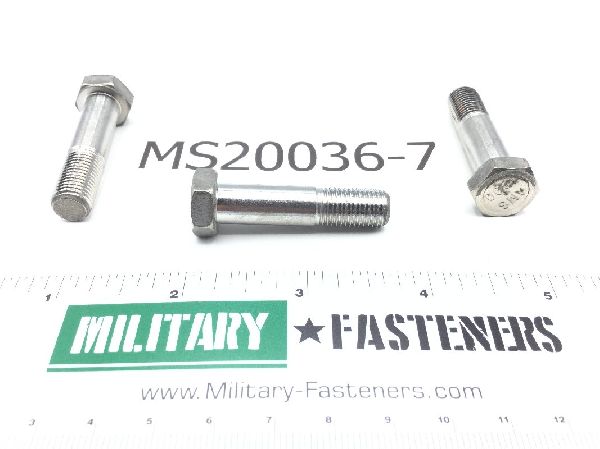

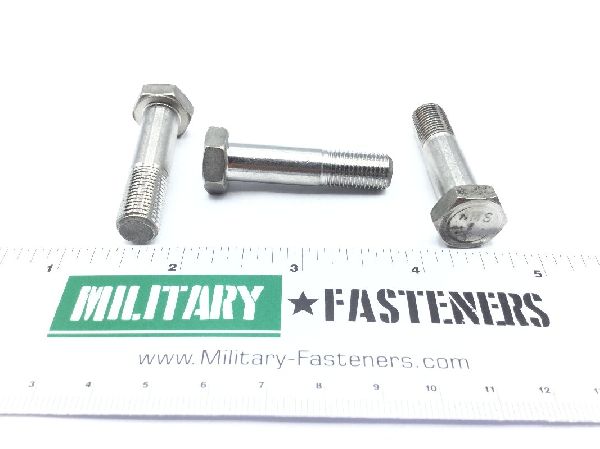

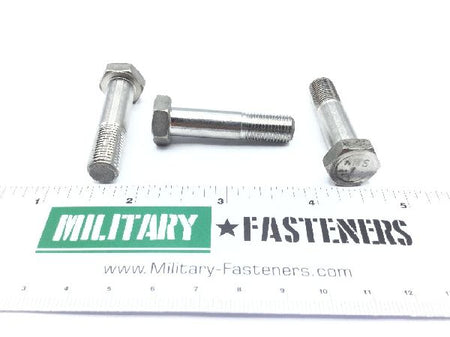

MS20036-7 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $24.87

Units per Pack 5

Price per Pack $124.35

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $124.35

Add item to quote

Head Style

Hexagon

Material

Stainless Steel

Thread Class

Fastener Length: 1.547 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 0.875 inches
Head Height: Between 0.203 inches and 0.235 inches
Material Specification: Mil-b-7874 military specification single material response
Min. Tensile Strength (psi): 110000 pounds per square inch
Minimum Yield Strength: 90000 pounds per square inch
Special Test Features: Rapture strength at 1200 degrees f shall not be less than 47000 psi in 100 hrs
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.672 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 inches and 0.565 inches
