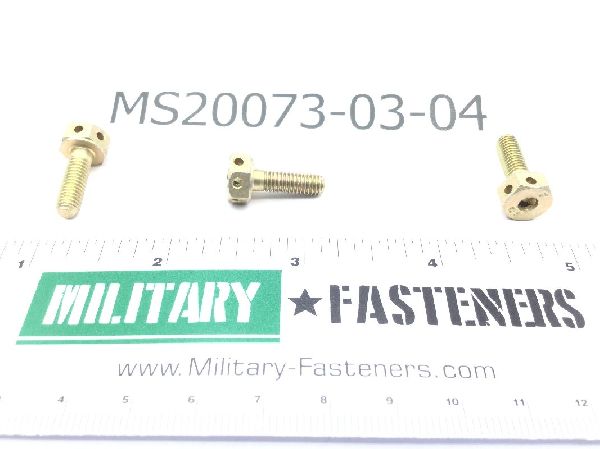

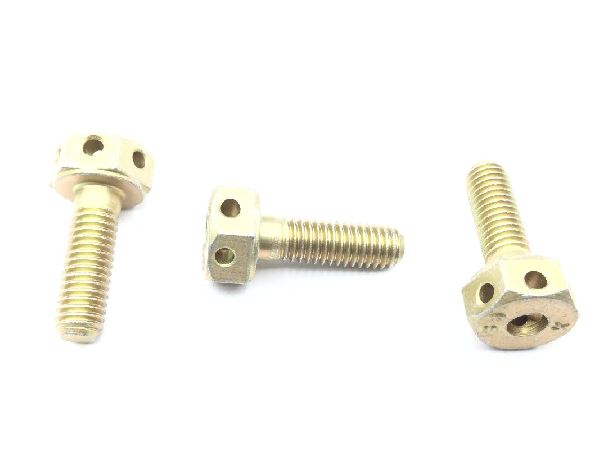

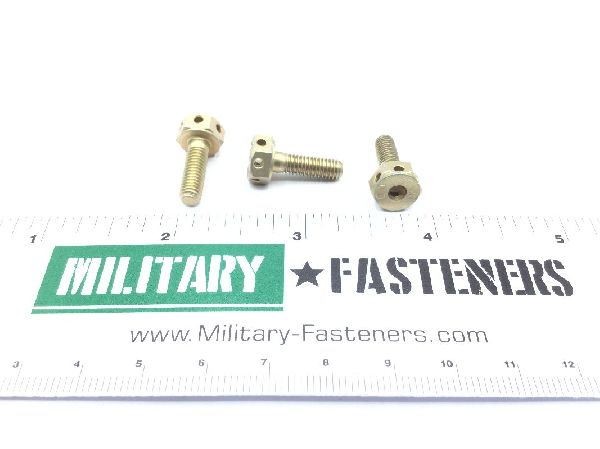

MS20073-03-04 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $11.50

Units per Pack 5

Price per Pack $57.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $57.50

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Type 2 cl 3 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: Between 0.578 inches and 0.625 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.046 inches and 0.078 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.172 inches and 0.203 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 6
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.500 inches and 0.547 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
Hole Diameter: 0.070 inches
