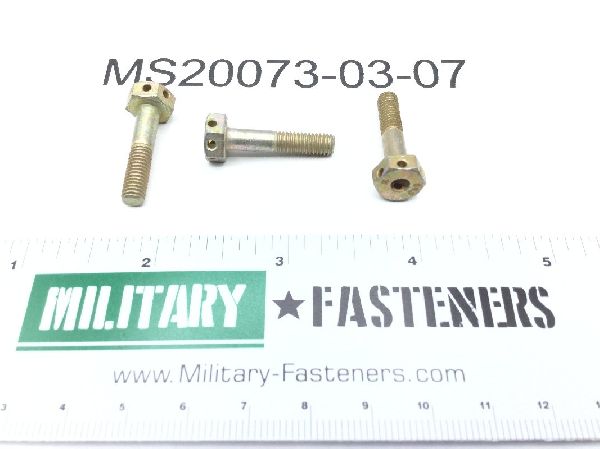

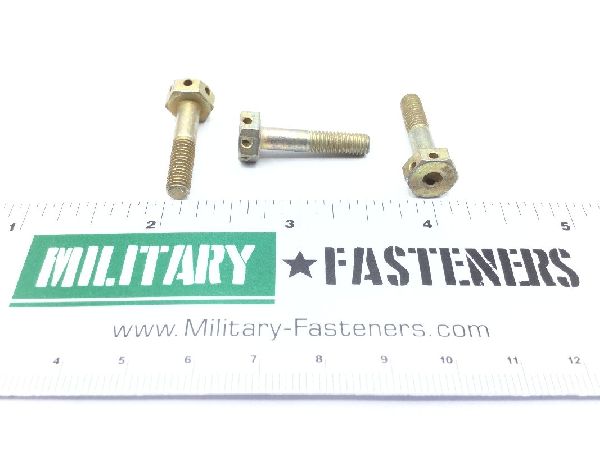

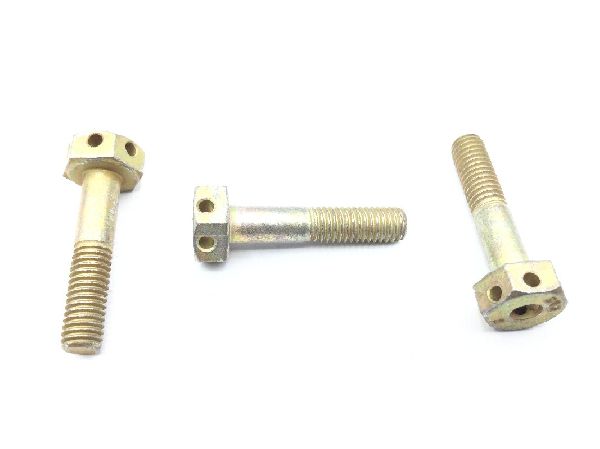

MS20073-03-07 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $2.77

Units per Pack 10

Price per Pack $27.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $27.70

Add item to quote

Head Style

Hexagon

Material

Steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4037 or steel comp 4130 or steel comp 4140

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: Between 0.89 inches and 0.937 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.359 inches and 0.578 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.172 inches and 0.203 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 6
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.19 inches
Thread Direction: Right-hand
Thread Length: Between 0.499 inches and 0.578 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
Hole Diameter: 0.07 inches
