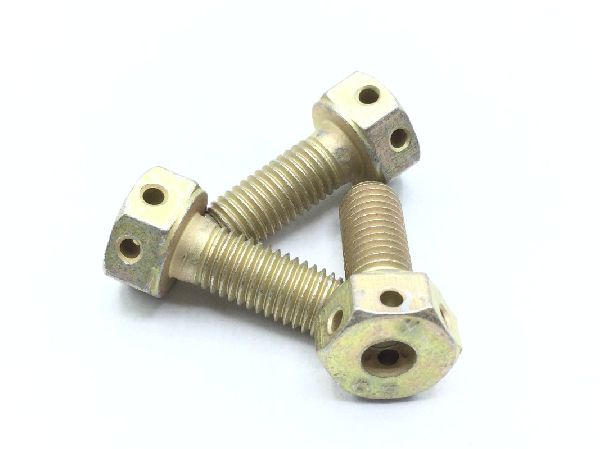

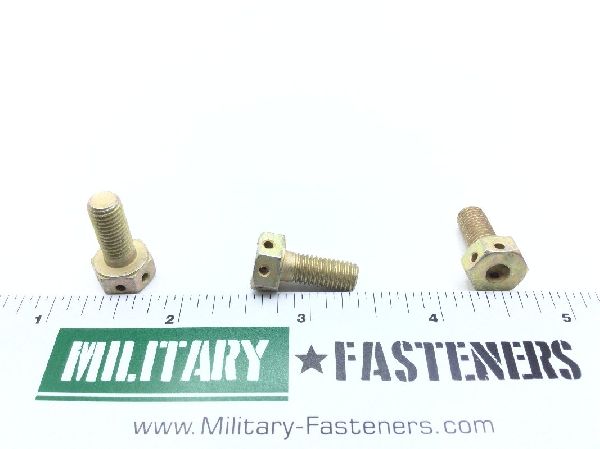

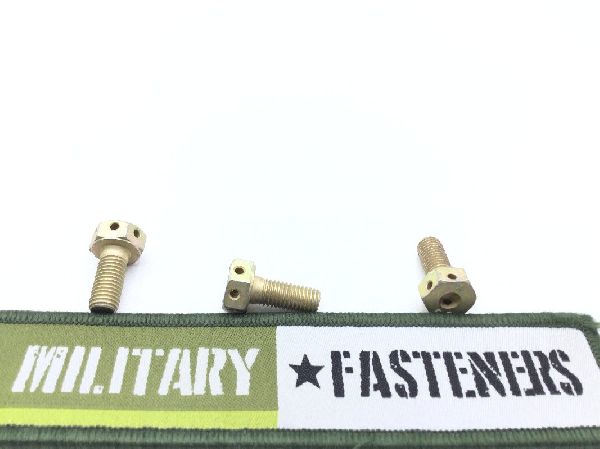

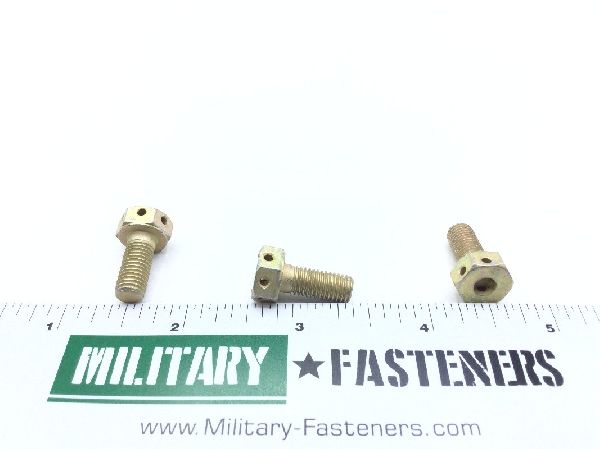

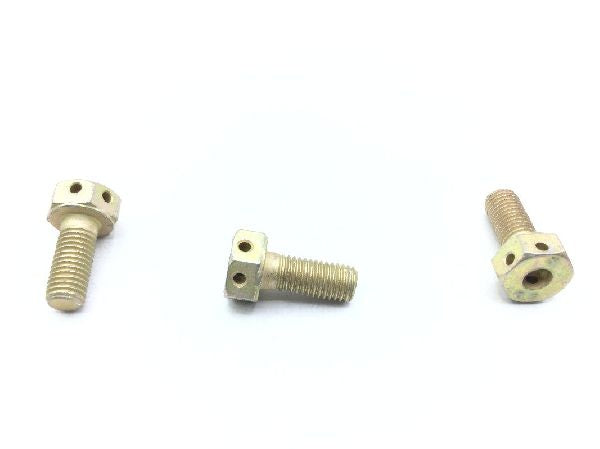

MS20073-04-04 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.1000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Qq-p-416 type 2 31 3 federal specification all treatment responses

Thread Class

Fastener Length: Between 0.578 inches and 0.625 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.046 inches and 0.078 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.234 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 6
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.499 inches and 0.578 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
Hole Diameter: 0.070 inches
