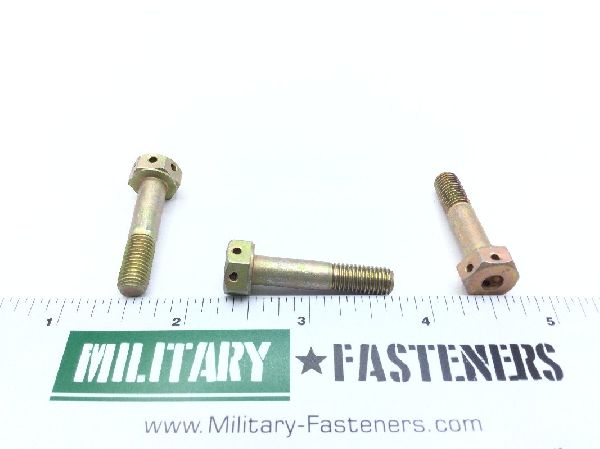

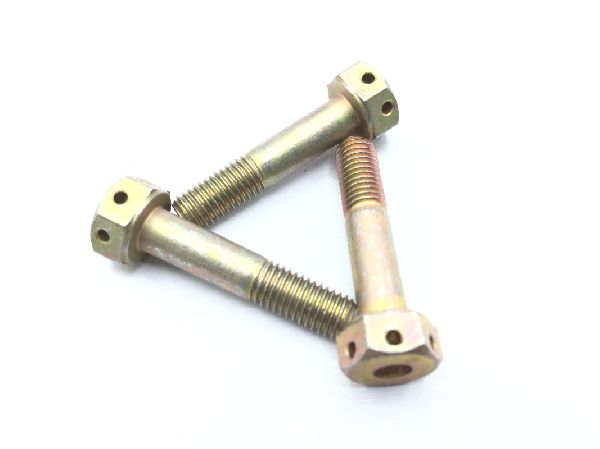

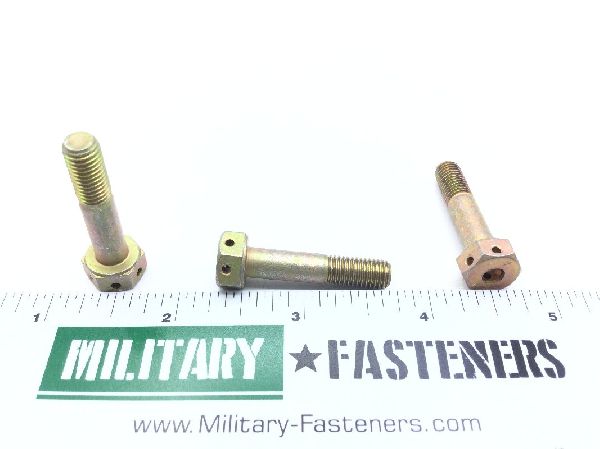

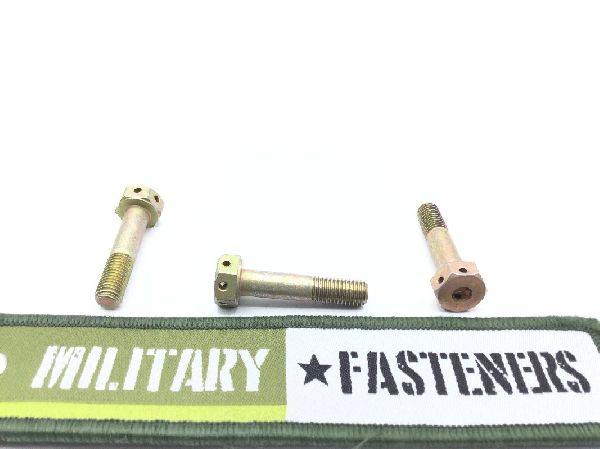

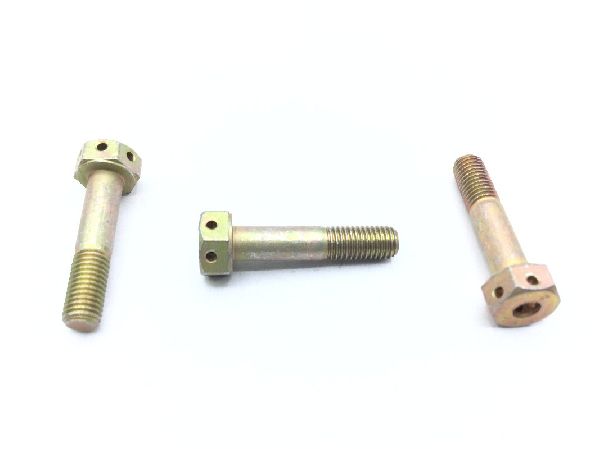

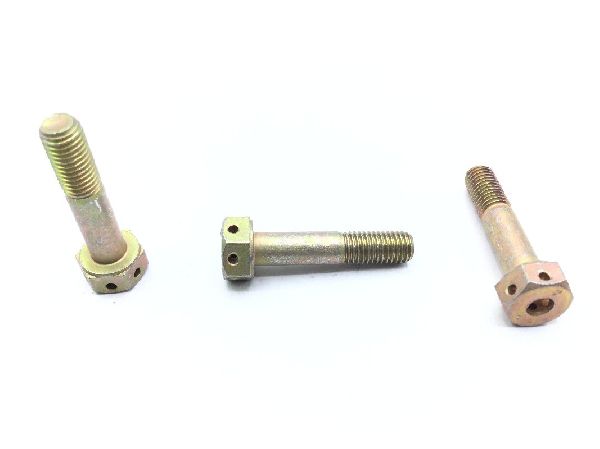

MS20073-04-11 Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $5.47

Units per Pack 10

Price per Pack $54.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $54.70

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification all treatment responses

Thread Class

Fastener Length: Between 1.141 inches and 1.188 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.609 inches and 0.641 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.234 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 6
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: Between 0.500 inches and 0.578 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
Hole Diameter: 0.07 inches
