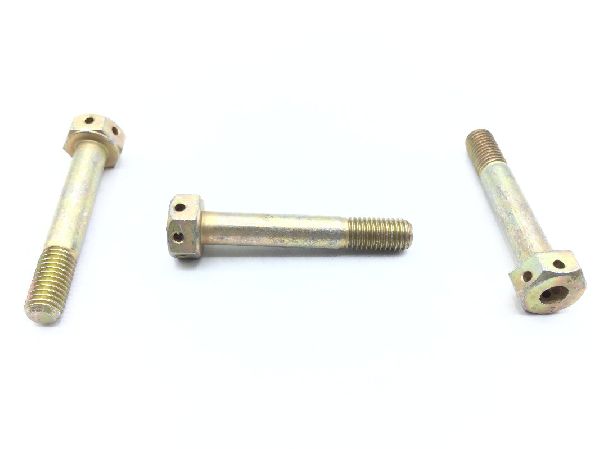

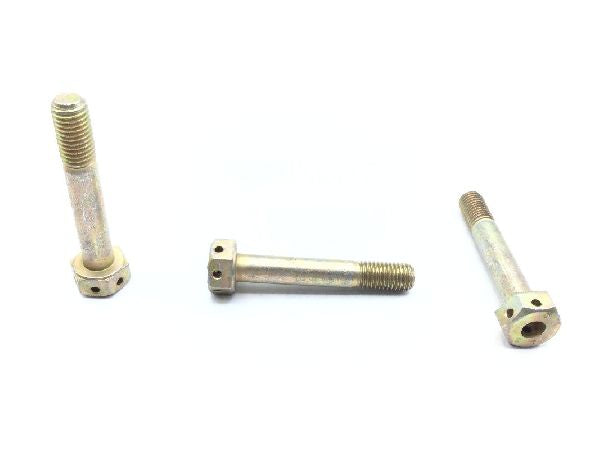

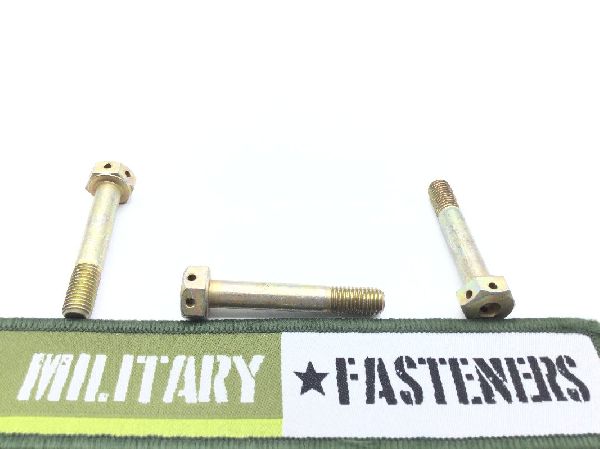

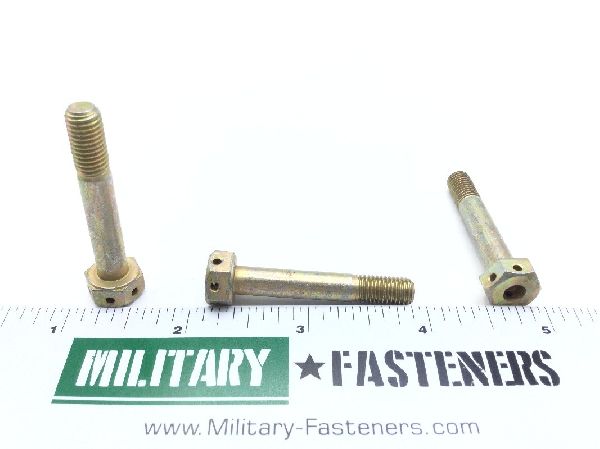

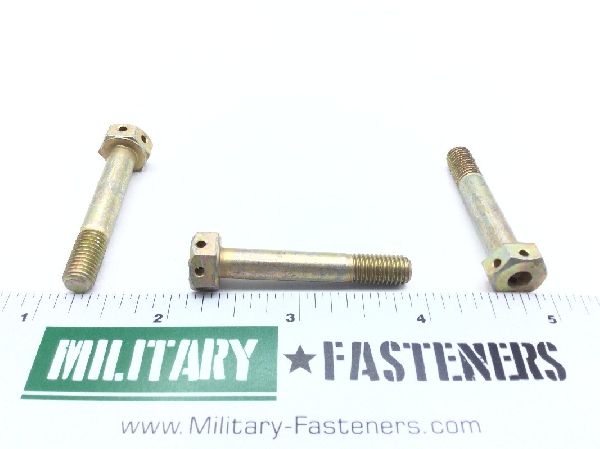

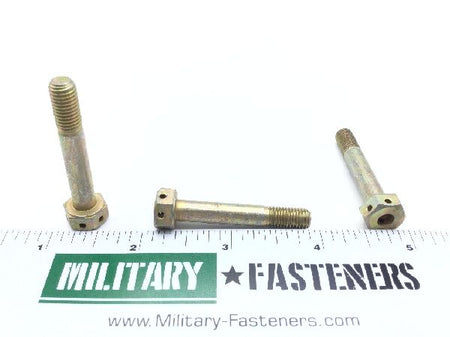

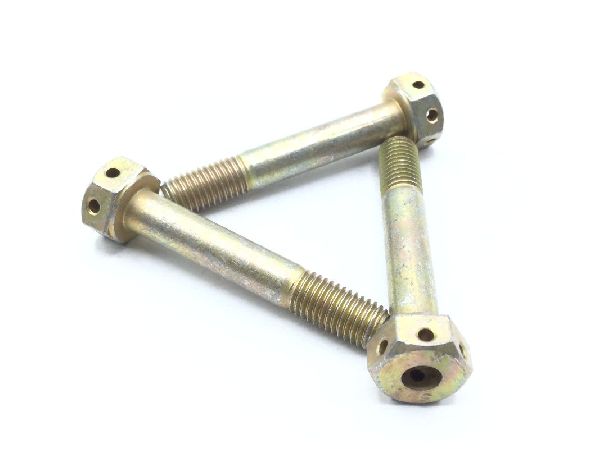

MS20073-04-14 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $4.64

Units per Pack 10

Price per Pack $46.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $46.40

Add item to quote

Head Style

Hexagon

Material

Steel comp 4130 or steel comp 8630 or steel comp 8735 or steel comp 8740

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: Between 1.515 inches and 1.562 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.984 inches and 1.016 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.234 inches
Material Specification: Mil-s-6758 military specification 1st material response or mil-s-6050 military specification 2nd material response or mil-s-6098 military specification 3rd material response or mil-s-6049 military specification 4th material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.499 inches and 0.578 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
