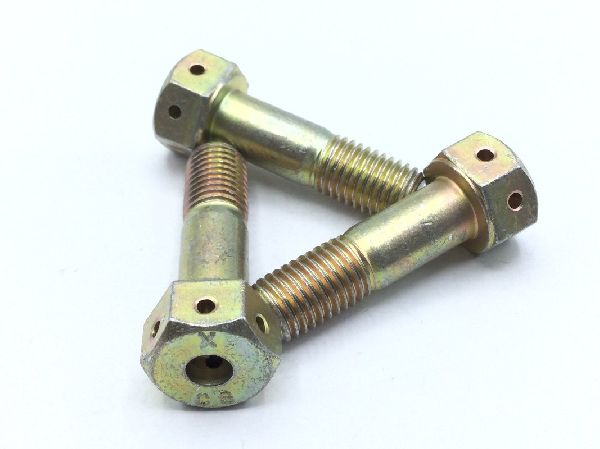

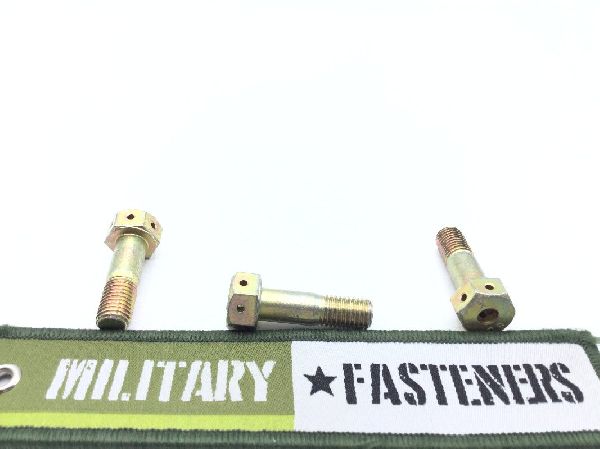

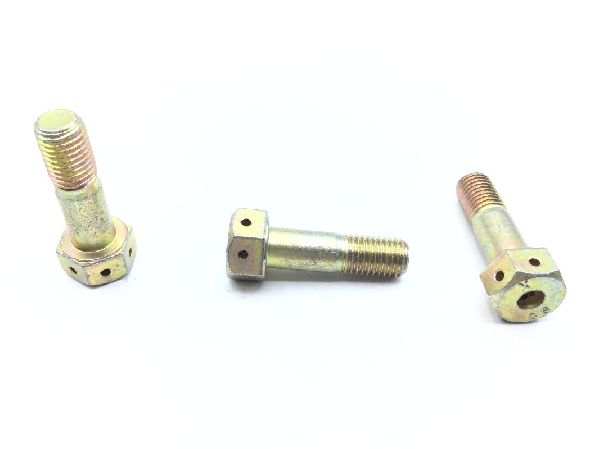

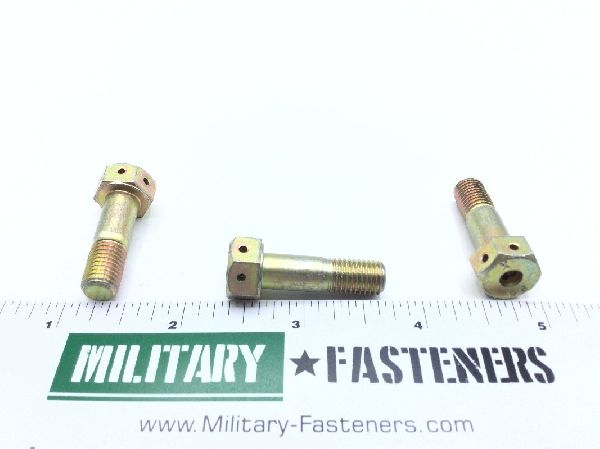

MS20073-05-10 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $11.01

Units per Pack 5

Price per Pack $55.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $55.05

Add item to quote

Head Style

Dished hexagon

Material

Steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4037 or steel comp 4130 or steel comp 4140

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification all treatment responses

Thread Class

Fastener Length: Between 1.031 inches and 1.078 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.484 inches and 0.516 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.266 inches and 0.297 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 6
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.515 inches and 0.594 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.492 inches and 0.501 inches
Hole Diameter: 0.070 inches
