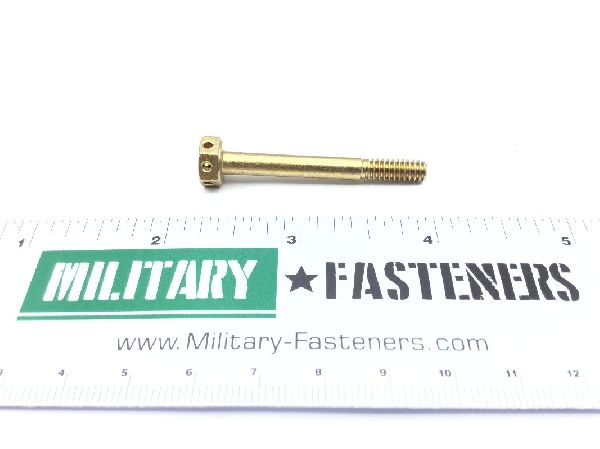

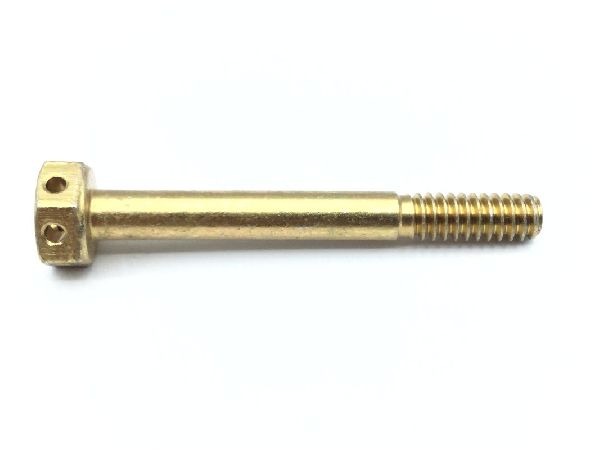

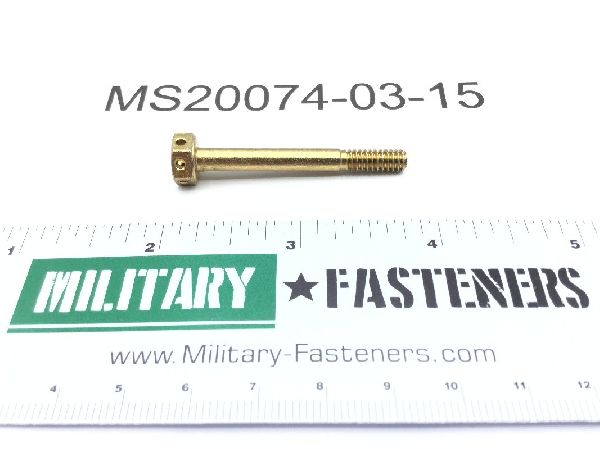

MS20074-03-15 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $43.80

Units per Pack 1

Price per Pack $43.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $43.80

Add item to quote

Head Style

Hexagon

Material

Steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4037 or steel comp 4130 or steel comp 4140

Surface Treatment

Type 2 class 3 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: 1.656 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 1.125 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.172 inches and 0.203 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 6
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.499 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
Hole Diameter: 0.070 inches
