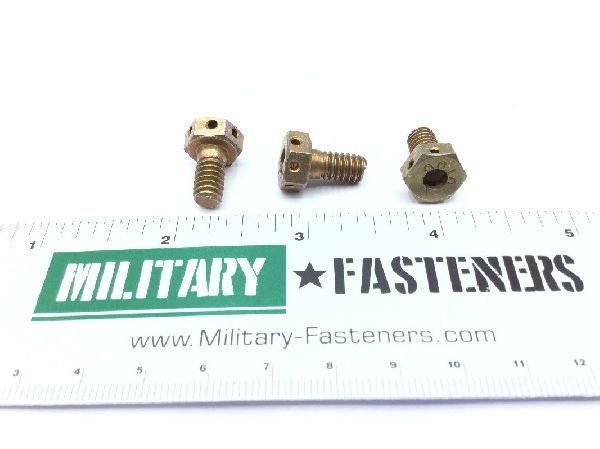

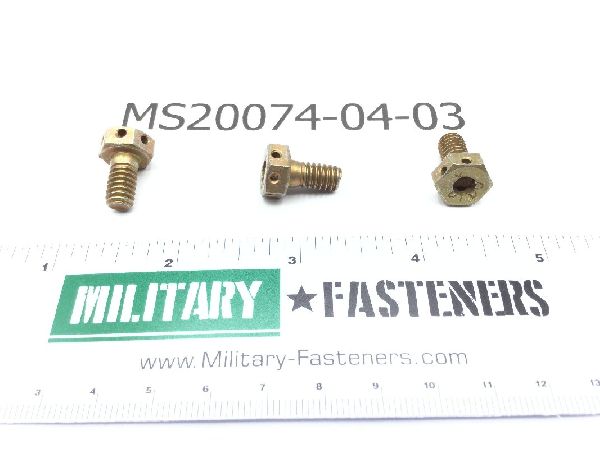

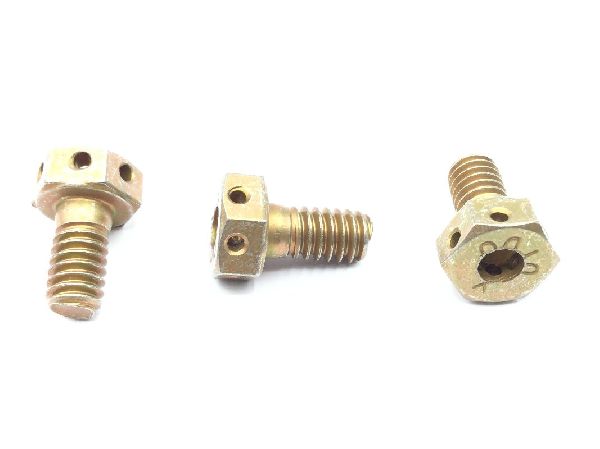

MS20074-04-03 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $9.36

Units per Pack 10

Price per Pack $93.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $93.60

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Qq-p-416 ty2 cl3 federal specification single treatment response

Thread Class

Fastener Length: Between 0.453 inches and 0.50 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.046 inches and 0.078 inches
Hardness Rating: 26 rockwell c and 32 rockwell c
Head Height: Between 0.203 inches and 0.234 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 6
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.375 inches and 0.454 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
Hole Diameter: 0.07 inches
