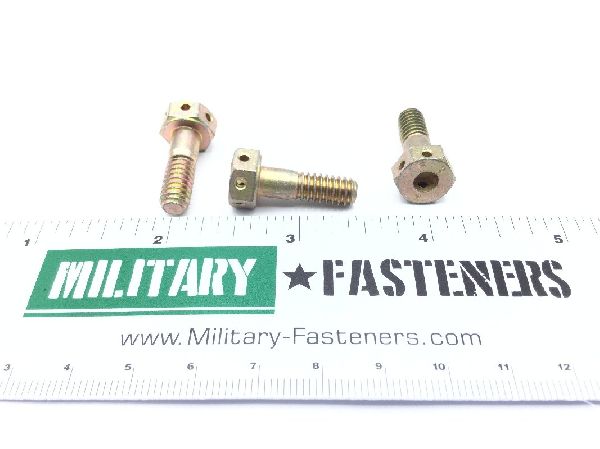

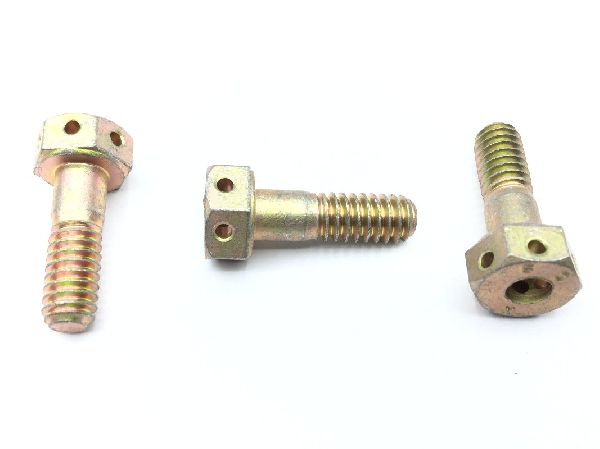

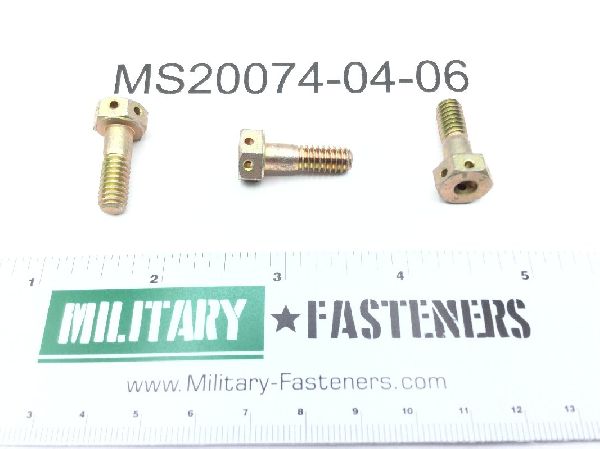

MS20074-04-06 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.1000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Type 2 class 3 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: Between 0.765 inches and 0.781 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.234 inches and 0.266 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.234 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 6
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Minimum Yield Strength: 2577 pounds per square inch
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: Between 0.499 inches and 0.578 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.43 inches and 0.439 inches
Hole Diameter: 0.07 inches
