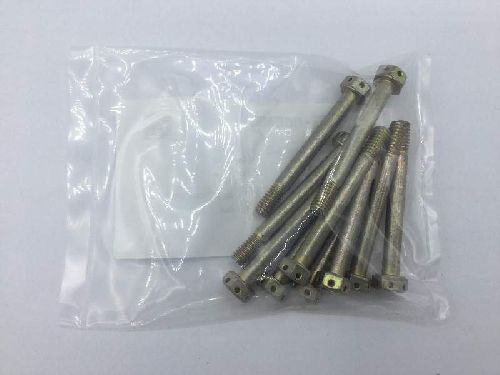

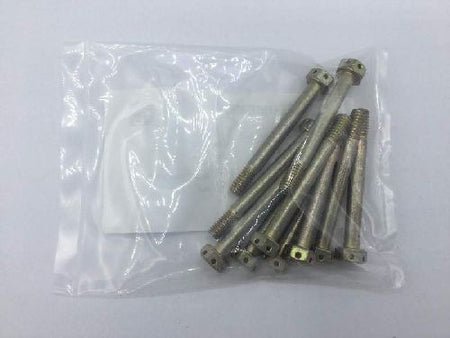

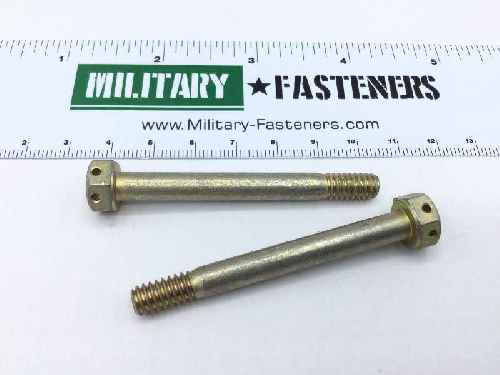

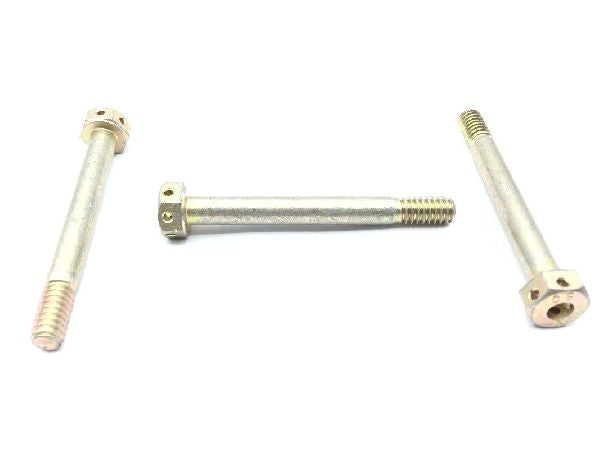

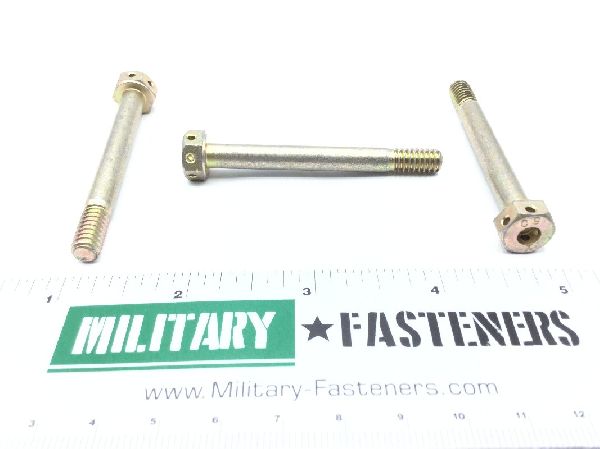

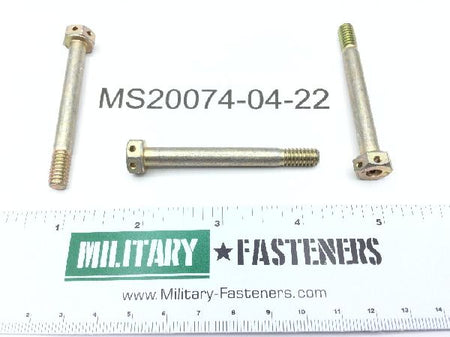

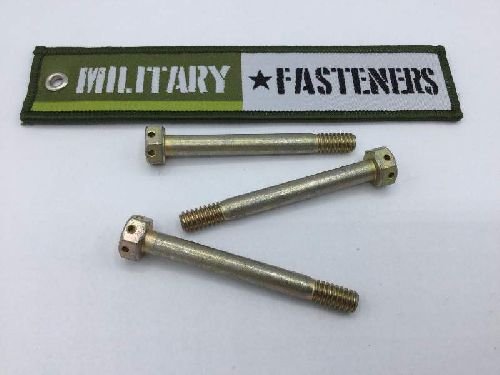

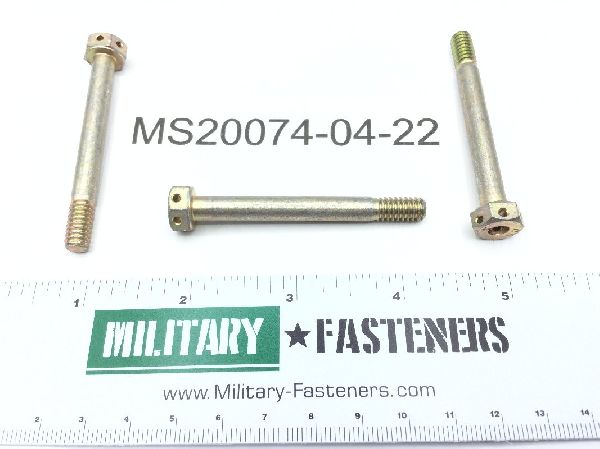

MS20074-04-22 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $25.99

Units per Pack 2

Price per Pack $51.98

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $51.98

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 2.266 inches and 2.312 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 1.734 inches and 1.766 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.234 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 6
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.500 inches and 0.579 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
Hole Diameter: 0.070 inches
