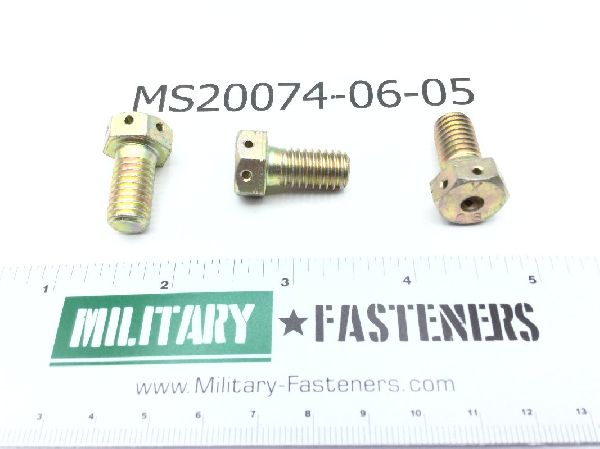

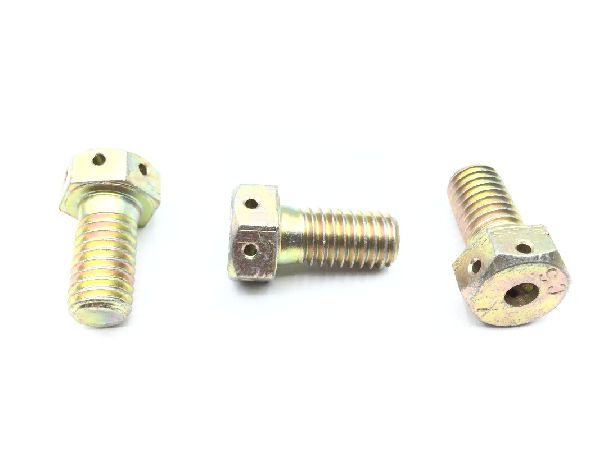

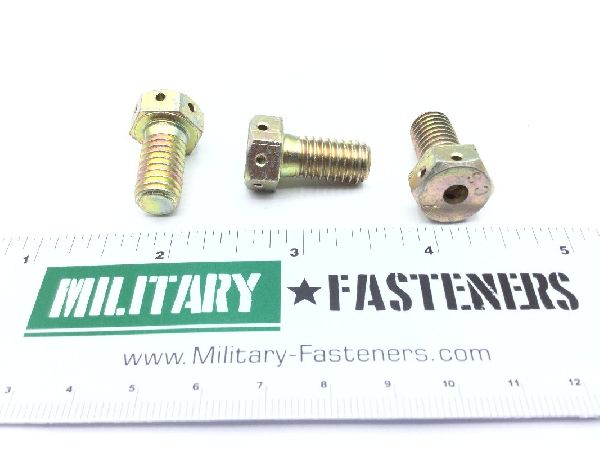

MS20074-06-05 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $13.79

Units per Pack 5

Price per Pack $68.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $68.95

Add item to quote

Head Style

Hexagon

Material

Steel comp 4140 or steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4130 or steel comp 4037

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 0.718 inches and 0.765 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.046 inches and 0.078 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.266 inches and 0.297 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 6
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.640 inches and 0.719 inches
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.554 inches and 0.564 inches
Hole Diameter: 0.070 inches
