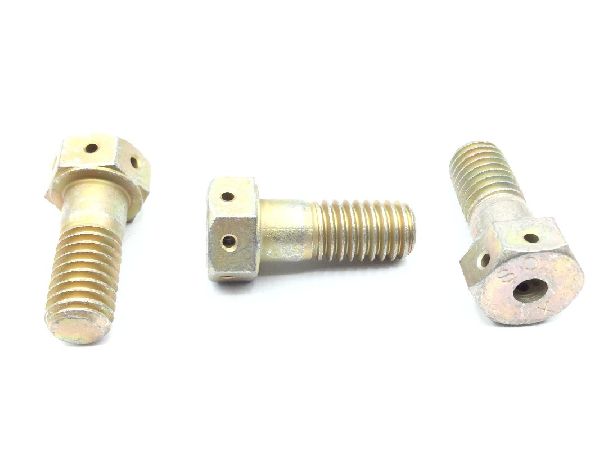

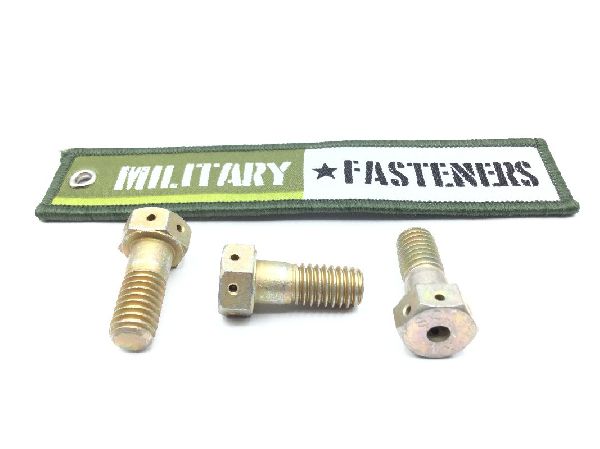

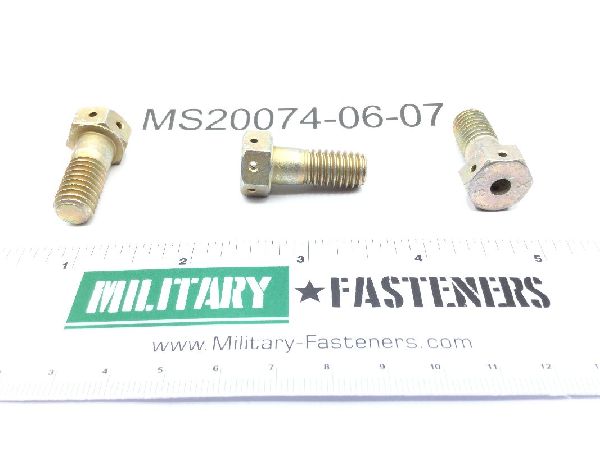

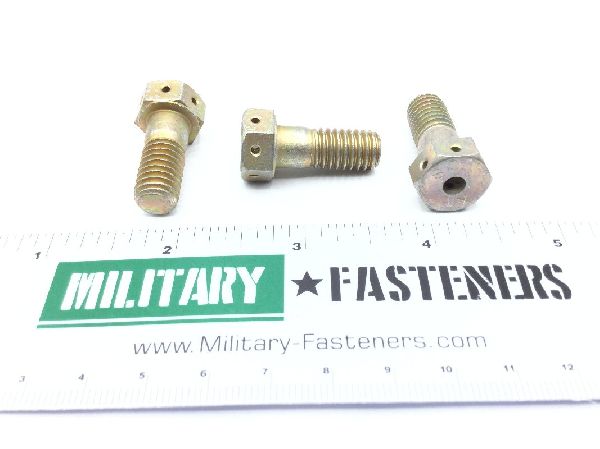

MS20074-06-07 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4037 or steel comp 4130 or steel comp 4140

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: Between 0.906 inches and 0.953 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.234 inches and 0.266 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.266 inches and 0.297 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 6
Hole Type: Drilled
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.640 inches and 0.719 inches
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.554 inches and 0.564 inches
Hole Diameter: 0.070 inches
