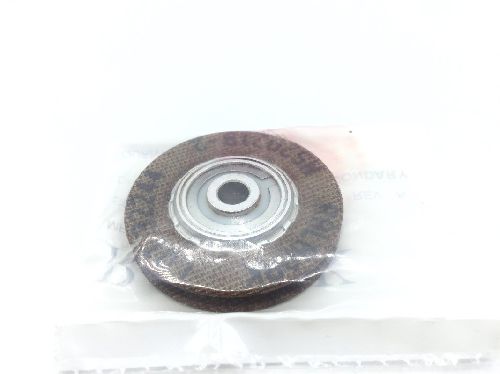

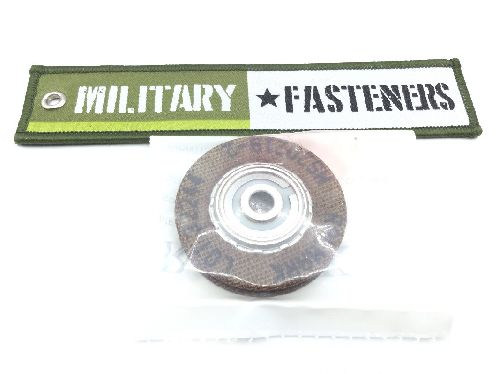

MS20219-2 Groove Pulley

Product Series: MS
ECCN: EAR99
Schedule: 7616.99.5190

Price per Unit $78.75

Units per Pack 1

Price per Pack $78.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $78.75

Add item to quote

Overall Length

Between 0.433 inches and 0.438 inches

Bearing Quantity: 1
Bearing Type: Ball
Bearings: Included
Bore Diameter: Between 0.2495 inches and 0.2500 inches
Bore Feature: Included
Bore Length: Between 0.433 inches and 0.438 inches
Bore Type: Straight
Counterbore Feature: Not included
Design Form: Plain
Distance From Outside Flange/rim To Hub End And Location: 0.064 inches both ends
Face Width: 0.31 inches
Groove Depth: 0.156 inches
Groove Quantity: 1
Groove Radius: Between 0.047 inches and 0.050 inches
Groove Shape: U
Groove Width: 0.15 inches
Hub End Outside Diameter And Location: 0.423 inches both ends
Integral Cooling Vane: Not included
Keying Facility: Not included
Lightening Hole: Not included
Material And Location: Phenolic plastic
Nondefinitive Specification/std Data: Part no. ms20219-2
Outside Diameter: Between 1.745 inches and 1.755 inches
Special Features: Then direct vendor delivery nsn 3020-01-391-0846 is available at 15.7% discount. or individual requisitions over 25000 dollars or 3 2 priority codes 1 naval vessels overseas shipments rif requisition is not for fms
Split Hub Feature: Not included
Style Designator: Plain
Web/spoke Relationship To Face Centerline: Not offset
