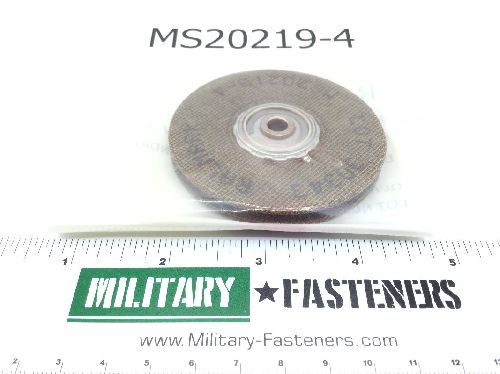

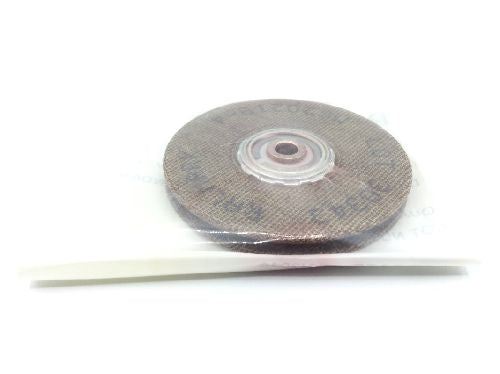

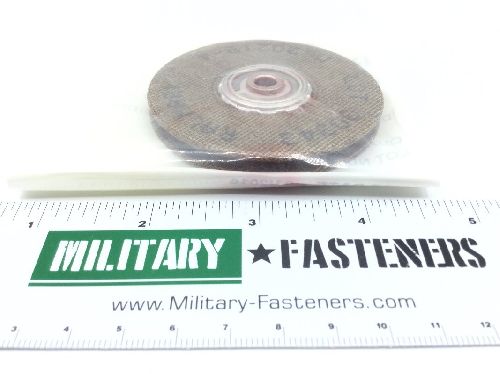

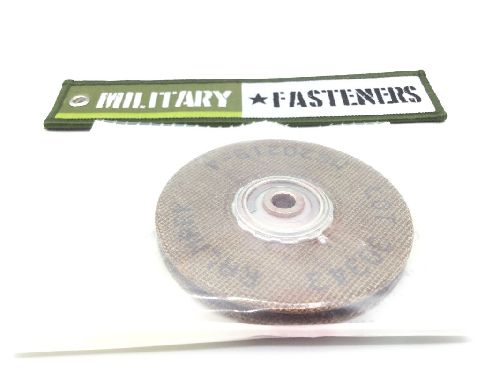

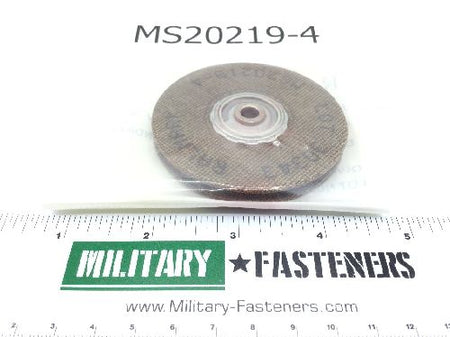

MS20219-4 Groove Pulley

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Bearing Quantity: 1
Bearing Type: Ball
Bearings: Included
Bore Diameter: Between 0.249 inches and 0.250 inches
Bore Feature: Included
Bore Length: 0.438 inches
Bore Type: Straight
Counterbore Feature: Not included
Design Form: Plain
Face Width: 0.310 inches
Furnished Items And Quantity: N/a
Groove Depth: 0.156 inches
Groove Quantity: 1
Groove Radius: Between 0.047 inches and 0.050 inches
Groove Shape: U
Groove Width: 0.150 inches
Integral Cooling Vane: Not included
Keying Facility: Not included
Lightening Hole: Not included
Material And Location: Phenolic plastic
Outside Diameter: Between 2.620 inches and 2.630 inches
Special Features: Then direct vendor delivery nsn 3020-01-391-0798 is available at 15.7% discount. or individual requisitons over 25000 dollars or 3 2 priority codes 1 naval vessels overseas shipments rif requisition is not for fms
Split Hub Feature: Not included
Style Designator: Plain
