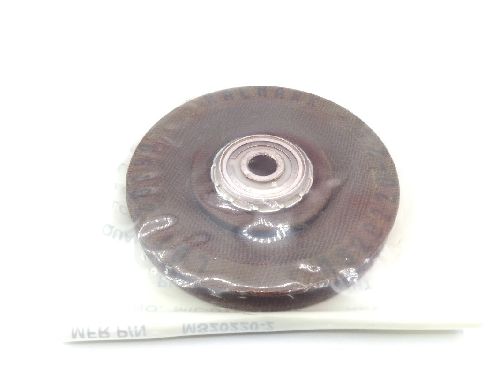

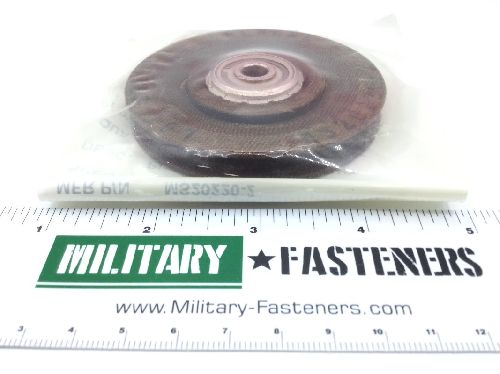

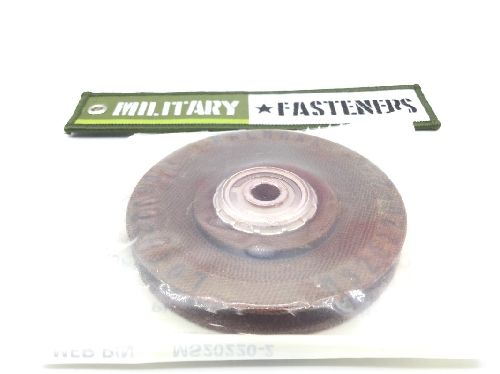

MS20220-2 Groove Pulley

Product Series: MS
ECCN: EAR99
Schedule: 8483.50.8030

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Overall Length

0.625 inches

Bearing Quantity: 1
Bearing Type: Ball
Bearings: Included
Bore Diameter: 0.3145 inches
Bore Feature: Included
Bore Length: 0.625 inches
Bore Type: Straight
Counterbore Feature: Not included
Criticality Code Justification: Feat
Design Form: Plain
Distance From Outside Flange/rim To Hub End And Location: 0.101 inches both ends
End Application: Eagle f-15 aircraft
Face Width: 0.422 inches
Groove Depth: 0.250 inches
Groove Quantity: 1
Groove Radius: 0.097 inches
Groove Shape: U
Groove Width: 0.275 inches
Hub End Outside Diameter And Location: 0.515 inches both ends
Integral Cooling Vane: Not included
Keying Facility: Not included
Lightening Hole: Not included
Material And Location: Phenolic plastic
Outside Diameter: 3.005 inches
Special Features: Then direct vendor delivery nsn 3020-01-391-0799 is available at 15.7% discount.;weapon system essential or individual requisitions over 25000 dollars or 3 2 priority codes 1 naval vessels overseas shipments 2if requisition is not for fms
Split Hub Feature: Not included
Style Designator: Plain
Web/spoke Relationship To Face Centerline: Not offset
