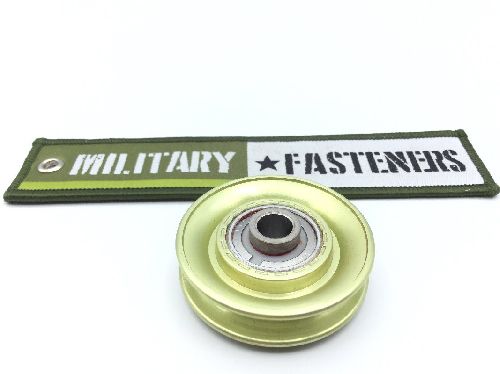

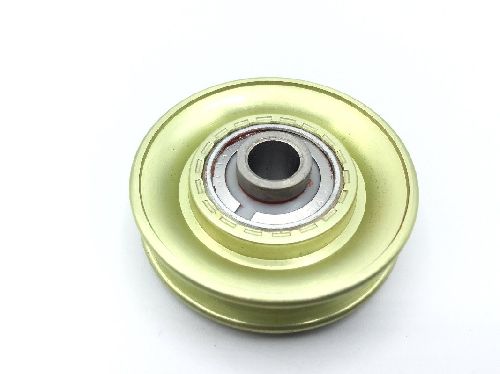

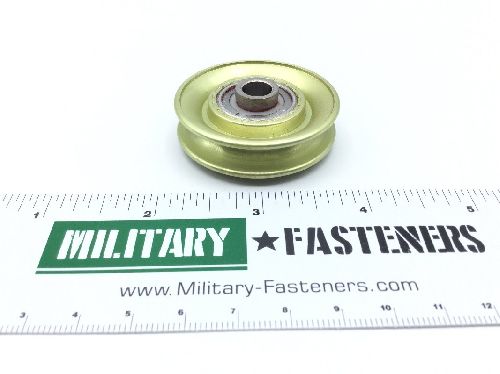

MS20220A1 Groove Pulley

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Bearing Quantity: 1
Bearing Type: Ball
Bearings: Included
Bore Diameter: 0.314 inches
Bore Feature: Included
Bore Length: 0.625 inches
Bore Type: Straight
Counterbore Feature: Not included
Design Form: Webbed
Distance From Outside Flange/rim To Hub End And Location: 0.101 inches both ends
Face Width: 0.422 inches
Groove Depth: 0.250 inches
Groove Quantity: 1
Groove Radius: 0.097 inches
Groove Shape: U
Groove Width: 0.275 inches
Hub End Outside Diameter And Location: 0.465 inches both ends
Integral Cooling Vane: Not included
Keying Facility: Not included
Lightening Hole: Not included
Material And Location: Steel hub
Outside Diameter: 1.755 inches
Split Hub Feature: Not included
Style Designator: Webbed or spoked
Web/spoke Relationship To Face Centerline: Not offset
