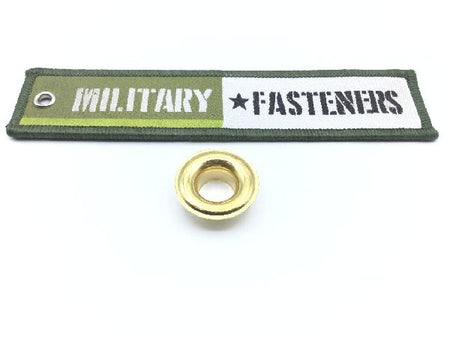

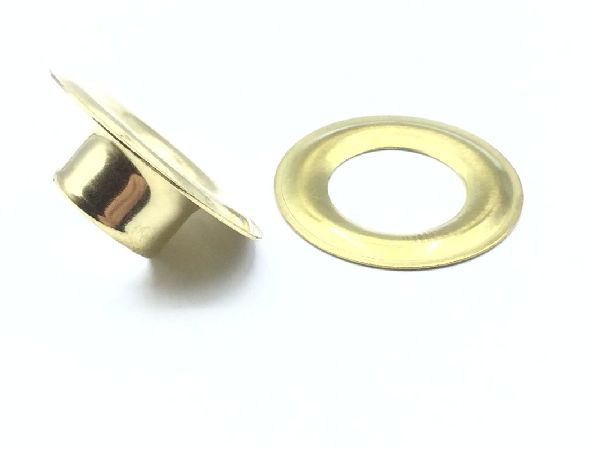

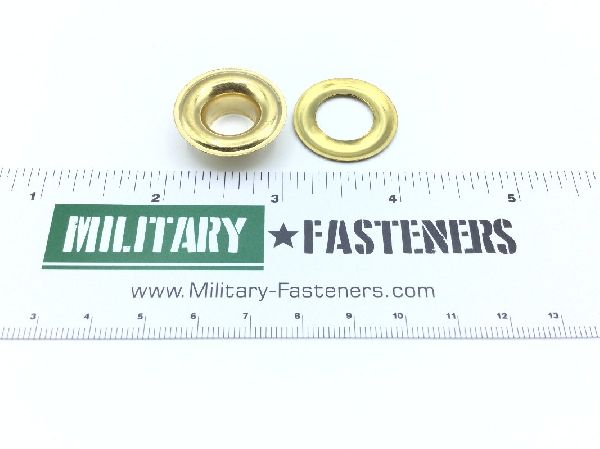

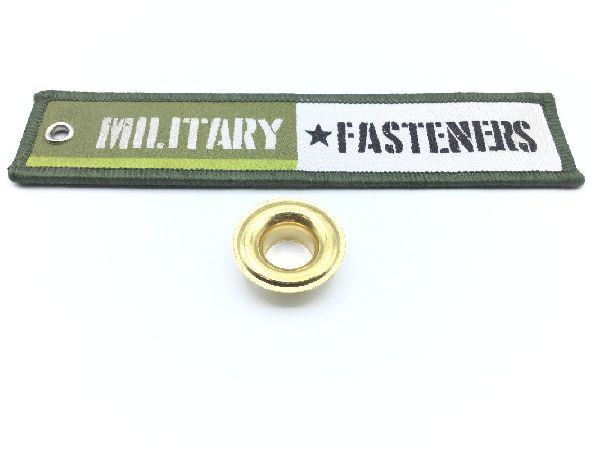

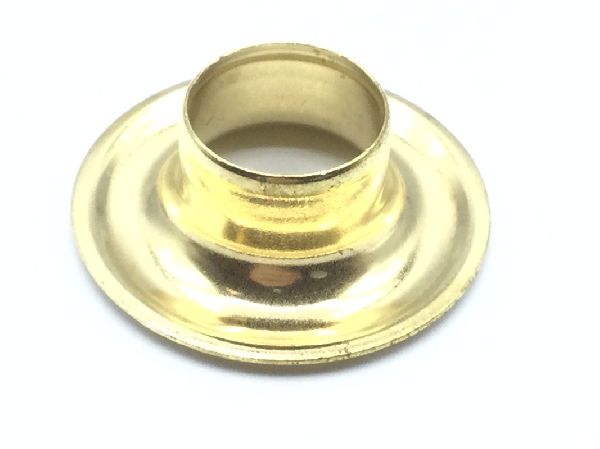

MS20230B3 Metallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 4016.93.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Barrel Height: 0.295 inches
Barrel Largest Outside Diameter: Between 0.540 inches and 0.550 inches
Barrel Outside Diameter: Between 0.428 inches and 0.438 inches
Barrel Style: Tapered round type
Color: Any acceptable
Flange Outside Diameter: Between 0.965 inches and 0.975 inches
Flange Style: Flange
Iii Material: Copper alloy
Nondefinitive Specification/std Data: 1 type and 1 class
Washer Style: Flat w/ formed inner edge
